Thermalright HR-22 Intel/AMD CPU Heatsink for All Intel & AMD CPU's

Thermalright HR-22 CPU Heatsink Cooler, Intel 1150/1151/1155/1156/1366/2011 AMD AM2/AM2+/AM3/AM3+/FM1/FM2

Scan code: LN54844 Manufacturer code: 814256000857 Request call
£62.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The HR-22 is Thermalright’s super flagship cooler and accumulation of over 10 years of thermal innovation and technology. Design based on our new Directed Passive Airflow System, the HR-22 from the ground up was designed for 0 CPU Fan passive cooling.

What is DPAS?
DPAS is a comprehensive system of optimizations that takes total advantage of the natural airflow current within an enclosed PC-case. It is the accumulation of heatsink technology that works together to orchestrate PC-case airflow for maximum passive CPU heat dissipation.

Our Directed Passive Airflow System contains specific design guidelines for:
• Heatsink Fin Gap
• Heatsink Fin Shape and Patented Fin Through Holes
• Heatsink Structural Shape and X/Y Axis Displacement
• Thermalright Proprietary Airflow Tunnel Add-on Kit

With our Directed Passive Airflow system, the HR-22 can cool down the latest high-end AMD and Intel
systems purely on case airflow generated by the system fans. And in fact letting PC users (sorry Mac!) eliminate the need for one of the noisiest component in your PC chassis (CPU FAN)! You think other sound/noise/silent optimized coolers have a chance? Try beating 0dBA! Features Axis Displacement

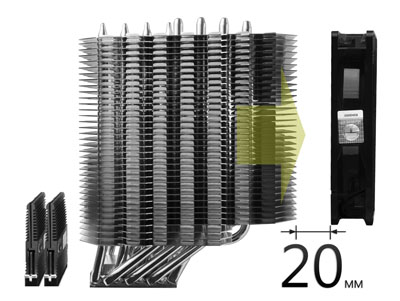

Heatsink Body Axis Displacement, no Interference with PCIE Slot 1 and RAM Slots on ATX or Micro ATX Boards.

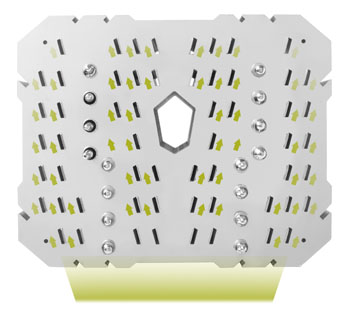

Aerodynamic Fin Design

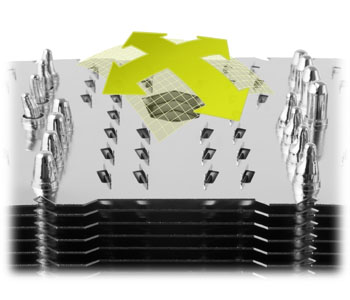

HR Series Patent Through Holes, with Advanced Radial Alignment, for enhanced directed airflow and extra Heat Dissipation Surface Area.

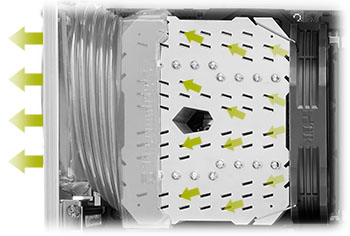

Airflow Tunnel
Proprietary Airflow Tunnel add-on kit for a 5-10% performance increase in Passive Cooling mode.

Area of Effect XL
40% Larger Heat Dissipation Surface Area than it's predecessor, and largest Heat Dissipation Surface Area to date among Thermalright Heatsinks.

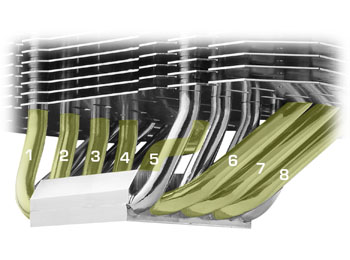

8X Premium Copper Heatpipes
Eight 6mm Fully Sintered Copper Heatpipes, ideal for high TDP cooling usage.

Cooler Specifications
Cooler Form Factor
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • AM2
  • AM2+
  • AM3
  • AM3+
  • FM1
  • FM2
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting Colour
Fan Connectors
Approx Fan Speed N/A
Adjustable Fan Speed Controller No
Fan Airflow
Air Pressure
Sound Level (dB)
Sound Level (Sone)
Fan Material
Heatsink Material
Dimensions & Weight
Fan Dimensions
Heatsink Dimensions 120 x 159 x 150 mm (WxHxD)
Total Dimensions
