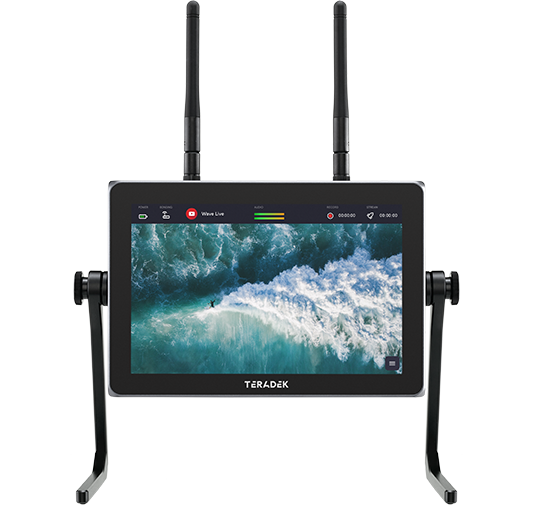

Teradek Wave Smart Streaming Monitor

Teradek Wave 5-in-1 Smart Streaming Field Monitor, 7" 1000nits Touchscreen, 1080p60, RTMPS/Airmix Streaming, HDMI

Thumbnail 1 : Teradek Wave Smart Streaming Monitor Thumbnail 2 : Teradek Wave Smart Streaming Monitor Thumbnail 3 : Teradek Wave Smart Streaming Monitor Thumbnail 4 : Teradek Wave Smart Streaming Monitor
Scan code: LN122395 Manufacturer code: TER-10-0264
£1,068.49Item currently awaiting an ETA
Pre order
From £22.26 / month (APR 0%) or 0% for 4 months
Monthly Payment: £89.04
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,068.49
Total inc. interest: £1,068.49
Monthly Payment: £44.52
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,068.49
Total inc. interest: £1,068.49
Monthly Payment: £29.68
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,068.49
Total inc. interest: £1,068.49
Monthly Payment: £22.26
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,068.49
Total inc. interest: £1,068.49
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £26.69 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Teradek - 'Wave 5-in-1 Smart Streaming Monitor'

Teradek Wave 5-in-1 Smart Streaming Monitor

5-in-1 smart live streaming monitorIntroducing the all-new Teradek Wave. The first-ever 5-in-1 smart live streaming monitor that combines encoding, smart event creation, network bonding*, multistreaming*, and recording – all on a 7” touchscreen IPS LCD display. Wave was designed to simplify the live streaming experience: to take live production challenges, and make them not-so-challenging. No matter the event. No matter the requirements. Now, you can do it all in one fluid motion.

Wave’s sleek form factor adapts to your needs. Use the included leg stands for tabletops, or mount Wave to your camera utilizing the top or bottom 1/4-20 mounting points for on-the-go streaming. Hot-swappable battery plates and USB-C connector allows for continuous power on long productions. Wave’s daylight-viewable monitor makes it easy to see what’s happening on the screen at any time of day, in any brightness.

Plus, with a subscription to Sharelink, Teradek’s cloud platform, you can keep a steady stream by splitting video bitrate across several internet connections. You can send your streams to multiple platforms at once. You can remotely manage your stream from anywhere in the world, and adjust your stream settings, destinations, and start/stop functionality using the Sharelink web interface

UP TO 6 Images with small descriptions in a row

7” 1080p Monitor-EncoderWatch your live productions in real-time on the same device you’re using for encoding.

Smart Event Creation with FlowOSPrep multiple events ahead of time using Wave’s easy-to-use project workflow.

Network Bonding from Multiple ConnectionsAvoid mid-stream drops by bonding several internet connections together.

Multi-Destination StreamingSend your live streams to Facebook, YouTube, Vimeo, Wowza, and Custom RTMP(S) platforms simultaneously.

Hot-Swappable PowerUse hot-swappable batteries for continuous power, and USB-C for wired power.

The Tech Spec

Features Specification
Video Inputs 1x HDMI Type-A receptacle
Bonding Simultaneous bonding over up to 7 network ports:
2 USB cellular modems
1 Ethernet
1 WiFi OR up to 4 cellphones (iPhones or Android)
Supported Resolutions 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
Video Compression H.264 (AVC), Baseline, Main Profiles
Supported Video Bitrate 250 Kbps to 15 Mbps
Supported Output Resolutions 1080p
720p
480p
360p
240p
Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols RTMP(S), Airmix
Audio Compression AAC-LC
Supported Audio Bitrate HD: 256kbps
High: 192kbps
Medium: 128kbps
Low: 96kbps
Mobile: 48kbps
Audio Input Embedded HDMI audio input, 2 Channel
Analog in, 2 Channel, adjustable level
Audio Output Headphone output, adjustable volume
Dimensions 178.2mm(7.0")x121.5mm(4.78")x25.7mm(1.0")
Weight 680 g
Construction Machined aluminum and ABS Plastic
Mountability 1/4" 20 mounting holes, Stand included
Configuration Interfaces OSD with touchscreen
Feature-rich WebUI for configuration and control
Recording Storage Full SD/SDHC (class 6 and above) formatted FAT32 ,USB formatted FAT32
Mobile App Wave App for iOS and Android Devices
Usb Interface Functionality 2 x Powered USB 2.0 host port
Network Ethernet: 10/100/1000 BASE-T
WiFi: Dual Band MIMO 802.11 ac/ax/a/b/g/n
Access Point mode or Client mode
USB USB for external modem support
RF Channel Selection Auto 2.4 or 5 GHz, 5 GHz only, 2.4 GHz only Manual Set specific channels
Power USB-C connector
Power adaptor and USB-C cable included
Plates for external Sony L-series (Battery not included)
Power Consumption upto 12W, upto 14W with optional internal modem, Does not include power used by USB devices, upto 3W per device.
