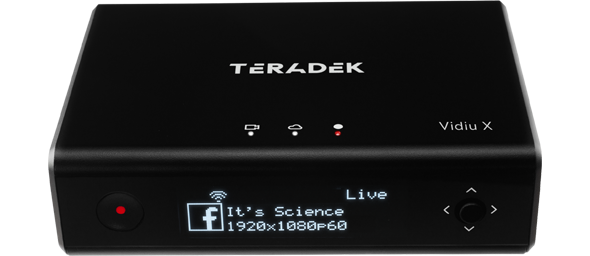

Teradek Vidiu X Ultra-Slim HD Streaming Encoder
Teradek VidiU X H.264 Live Streaming Encoder, 2x HDMI, 1x RJ45, 1x USB, Wi-Fi, SD Card Slot
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
Teradek - 'Vidiu X Live Streaming Encoder'
Professional live streaming without a production studioGo Live Anywhere in 1080p in a matter of seconds. The Teradek Vidiu X hardware encoder reliably broadcasts live video to multiple streaming platforms in Full HD from almost any location with the touch of a button. It’s compact, portable and integrates seamlessly with cameras and switchers to deliver crisp live video to your audicience.
HD Live Video
Network Bonding
Protocol Support
Integrated Platforms
Multi-Platform Streaming
Reach Your Audience at the Touch of a ButtonWhether you’re a videographer streaming live events like weddings, or a content creator streaming on multiple platforms, Vidiu X lets you simultaneously go live to Facebook, YouTube, Twitch and more.* That’s less time getting in front of more viewers.
*Optional Sharelink subscriptions required.
Camera and Switcher Compatible
The Perfect Streaming PartnerUnlock professional production quality and broadcast in HD from any HDMI video source. Vidiu X plugs in to professional cameras, switchers, and media players. Simply set it on your desk, and let it shine as a dedicated encoder for your live production needs.

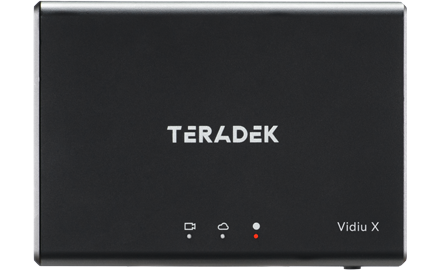

Compact and Portable Encoder
Portable PowerhouseStreaming on-the-go, or from your home base? Vidiu X’s compact size makes it easy to mount to your camera and take it with you, or station it on your production desk. It’s also USB-C powered, which makes it easier than ever to keep your stream up and running throughout the day.

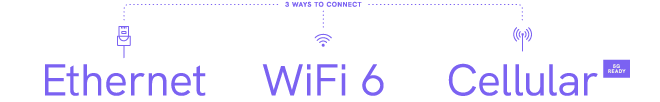

WiFi, LAN and 4G Connectivity
A Network of ReliabilityVidiu X gives you 3 ways to keep your streams flowing smoothly. Ethernet for hardline reliability, cellular connectivity with your LTE USB modem for portability, and WiFi 6 for the best wireless connectivity on location. Best of all, Vidiu X can bond* together bandwidth from all of these interfaces, including mobile hotspots, so you can stream reliably from anywhere you go.
Teradek Sharelink
Stream Smarter with SharelinkNever worry about an inconsistent internet connection again. For a small monthly subscription, you can combine bandwidth from WiFi, Ethernet, and cellular sources through network bonding using Sharelink, Teradek’s cloud platform.
Android and iOS App Control
Seamless setup with the vidiu appComplete control is yours with the Vidiu App for iOS and Android. Configure your destinations, stream settings, and network connections, all from your smart device. You can even monitor the live feed right from the app to ensure everything looks good.
The Tech Spec
| Features | Specification | Video Input | 1x HDMI Type A receptacle |
|---|---|
| Video Output | 1x HDMI Type A receptacle |
| Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60 720p 50/59.94/60 |
| Video Compression | H.264 (AVC), Main profile |
| Supported Video Bitrate | 250 kbps to 15 Mbps |
| Presets | Max: 12 Mbps + 256 kbps audio 1920x1080 HD+: 8 Mbps + 256 kbps audio 1920x1080 HD: 5 Mbps + 192 kbps 1920x1080 Medium: 1.5 Mbps + 128 kbps 960x540 Low: 800 kbps + 128 kbps 736x414 Mobile: 500 kbps + 96 kbps 480x270 |
| Video Format Conversion Support | Built-in Video Scaler |
| Audio Inputs | Embedded HDMI audio input, 2-Channel Analog line-in or mic-in, 2-Channel |
| Audio Compression | A AC-LC |
| Supported Audio Bitrate Details | HD: 256 kbps High: 192 kbps Medium: 128 kbps Low: 96 kbps Mobile: 48 kbps |
| Dimensions | 105 x 75 x 28 mm |
| Weight | 160g |
| Construction | Machined aluminium and ABS Plastic |
| Mountability | 1x ¼-20 plus 2 x M3 on the bottom plate |
| Ethernet | 10/100/1000 BASE-T |
| Wireless | WiFi: Dual Band MIMO 802.11 ac/a/b/g/n Internal Antennas: Internal 0dBi antennas |
| USB | USB type A (host) for 3G/4G modem support |
| WiFi Channel Selection | Auto with 3 modes: 2.4 or 5 GHz, Auto (2.4 GHz only), Auto (5 GHz only) Manual: Configurable to specific channels |
| Bonding | Simultaneous bonding over up to 3 networks: Ethernet, Wi-Fi, USB cellular modem |
| Cloud Services | Sharelink |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Video Transport Protocols | RTMP, RTMPS, AirMix, Sharelink bonding, RTSP |
| Integrated Platforms | Custom RTMP/S, YouTube Live, Facebook, Vimeo Livestream, and AirMix |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Configuration Interface | OLED display with navigation joystick, Feature-rich Web UI for configuration and control |
| Switches | Go Live and reset switch |
| Recording/Storage | Full Size SD/SDXC (class 6 and above) formatted exFAT, USB formatted exFAT |
| Mobile App | VidiU App for iOS or Android devices |
| USB Interface Functionality | Powered USB 2.0 host port |
| Power Input | USB-C host port (5-15V) |
| Nominal Power Consumption | Ethernet: 4.5W WiFi: 6W USB Modem: 7W |
