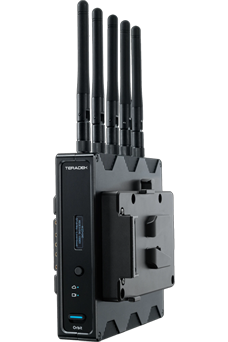

Teradek Orbit 4K- RX Wireless Receiver

Thumbnail 1 : 4K 12G-SDI/HDMI Camera Control Tally - Wireless RX Thumbnail 2 : 4K 12G-SDI/HDMI Camera Control Tally - Wireless RX Thumbnail 3 : 4K 12G-SDI/HDMI Camera Control Tally - Wireless RX
Scan code: LN106939 Manufacturer code: TER-10-2567
£2,760.49Item currently awaiting an ETA
Pre order
From £132.50 / month (APR 14.9%)
Monthly Payment: £479.01
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,760.49
Total inc. interest: £2,874.05
Monthly Payment: £247.82
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,760.49
Total inc. interest: £2,973.83
Monthly Payment: £170.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,760.49
Total inc. interest: £3,075.79
Monthly Payment: £132.50
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,760.49
Total inc. interest: £3,180.00
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £68.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Live Production Never Looked So Good!
Teradek - 'Orbit PTZ 4K' Wireless RX

Teradek ORBIT PTZ 4K RX

4K WIRELESS VIDEO & CONTROL FOR PTZ CAMERAS Introducing the magnificent ‘Orbit PTZ 4K’ Wireless RX from Teradek.

Orbit PTZ 4K RX enables you to transmit zero-delay, uncompressed, 4K video and camera control commands from a range of up to 1000ft (305m). Orbit PTZ mounts securely underneath any PTZ camera and includes a looping power supply, giving you a flawless, long-range wireless solution for rapid deployment and wireless workflows.

Orbit PTZ utilises Teradek’s patented Joint Source Channel Coding (JSCC), and MIMO and OFDM technologies, to broadcast video across the unlicensed 5GHz band and 4.9GHz public safety band. This allows for much greater channel utilisation and handling of interference than competing H.264/HEVC transmission methods.

Impressive Features • Wireless 4K video with < 1 ms latency
• Uncompressed, 10-bit, 4:2:2 image quality
• Up to 1,000 ft. of wireless range
• License-free 5GHz operation
• Transmit PTZ camera control commands via RS-232 and RS-422
• AES-256 and RSA 1024 encryption
• Supports all standard 4K resolutions and frame rates
• Integrated tally light

down

1000 ft. Wireless Range

up

VISCA & Panasonic AW Protocols

up

10-Bit 4:2:2 Image Quality

up

RS-232/RS-422 Camera Control

Real-Time Camera Control

Teradek ORBIT PTZ RX

zero-latencyOrbit PTZ boasts RS-232 and RS-422 connectivity for PTZ camera control. Camera commands travel over a zero-latency wireless link between transmitter and receiver, with support for VISCA and Panasonic AW protocols.

Pair transmitters and receivers with the simple press of a button, monitor channel interference, set operating frequencies, and control your PTZ cameras directly from the app, no cables needed, complete wireless freedom!

Unbreakable Encryption

Teradek ORBIT PTZ TX/RX Set 4K

the best protection in the industryOrbit PTZ delivers the industry’s best protection against prying eyes with AES-256 encryption and RSA 1024 key pairing.

Combined, these two technologies make sure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorization.

Easy Mobile Configuration

Teradek ORBIT PTZ TX/RX Set 4K

embrace wireless freedomCommand your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android.

Pair transmitters and receivers with the touch of a button, monitor channel interference, set operating frequencies, and control your PTZ cameras directly from the app, no cables needed! Enjoy sheer wireless freedom!

The Tech Spec

Features Specification
Wireless Range 1000' / 304.8 m (Line-of-Sight)
# of Channels 13 (40 MHz)
Frequency Range Non-DFS Frequencies 5.19 to 5.23 GHz 5.76 to 5.79 GHz Non-DFS Frequencies 5.27 to 5.67 GHz
Latency < 1 ms
RF Power 17 dBm
Antenna Ports 5 x RP-SMA Female
Video Connectors 1 x HDMI Output 1 x BNC (3G-SDI) Output
Other I/O 1 x DE-9/DB-9 RS-232 Input/Output 1 x RJ45 RS-422 Input/Output 1 x USB Micro-B USB 2.0 Input
Embedded Audio HDMI: 2-Channel SDI: 2-Channel
Encryption 256-Bit AES
Operating Temperature 32 to 104°F / 0 to 40°C
Mounting 1 x 3/8"-16 Female
Materials Aluminum
Dimensions 5.48 x 5.26 x 1.19" / 139.2 x 133.7 x 30.1 mm
Weight 23.14 oz / 656 g
