Teradek Bolt 4K Monitor Module 1500 TX
Teradek Bolt 4K Monitor Module 1500 TX, Wireless Transmitter for SmallHD Smart 7 Monitors, HDMI 2.0/3G-SDI
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
Teradek - 'Bolt 4K Monitor Module 1500 TX"

Wirelss Transmitter for SmallHD Smart 7 MonitorsThe Bolt 4K Monitor Module 1500 TX zero-delay wireless video transmitter supports video signals up to 4Kp30 via HDMI with 1,500 feet (456m) of range. Designed for seamless integration with the SmallHD Smart 7 Monitor Series, which includes Cine 7, Indie 7 and 702 Touch. It supports 4K and HDR with faster reconnection times and easy setup with the Bolt App (iOS/Android). Wireless camera control for select cameras is available with a SmallHD license (sold separately), unlocking remote access to run/stop, frame rate, ISO, shutter angle, white balance, internal ND filter, playback clips, and more.
NOTE: Beta SmallHD monitor firmware 4.7.0 or later required for wireless camera control functionality
Compatible with SmallHD Smart Monitors

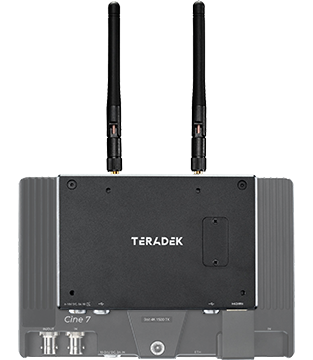

INTEGRATED HARDWARE ADDITION TO SMALLHD SMART 7 TOUCHSCREEN MONITORSThe TX Module easily connects to the back of Cine 7 Smart Monitors for a lighter, more streamlined setup.
1500 Feet Range

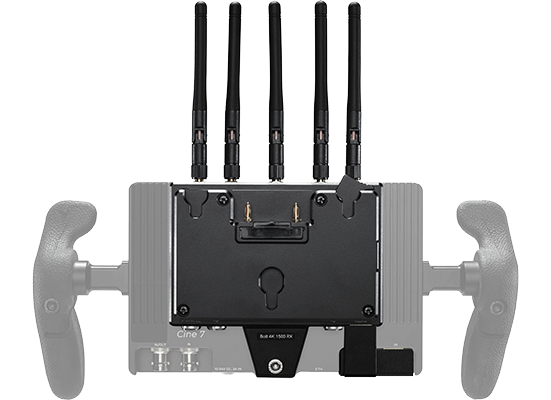

WIRELESS CAMERA CONTROLControl your camera from up to 1,500 feet away by pairing your Bolt 4K Monitor Module 1500 TX to a Monitor Module RX connected to a SmallHD Smart 7 Monitor.

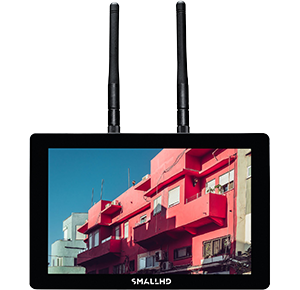

Compatible SmallHD Smart 7 Monitors include Cine 7, Indie 7 and 702 Touch.
Transmit 4Kp30 Video Wirelessly
ARRI Camera Control Wireless Camera Control for ARRI Mini, Mini LF, and Amira is now available. Due to the ethernet requirement for ARRI Camera Control, the TX Module must be used with a Cine 7 that has an ARRI Camera Control license installed. The RX Module can be attached to any other Smart 7 monitor. Please ensure your Smart 7 Monitor’s firmware is up to date.
Zero-Delay 4K Wireless VideoTransmit video up to 4Kp30 at a line-of-sight distance of up to 1,500ft (228m) with no image delay (>0.001sec). (Receiver sold separately.)
TransmitterInput: 1x HDMI 2.0
(up to 4Kp30)
True HDRSupports 10-bit 4:2:2 colour gamut allowing for wireless on-set HDR monitoring
Improved Wireless PerformanceReliable signal transmission and reception over 13x 40MHz frequencies. Upgraded hardware provides less signal breakup, faster reconnection times, automatic signal-quality switching, and a more robust frequency-hopping algorithm
Send Signal to Unlimited ReceiversSupports Broadcast Mode, meaning unlimited receivers can be connected
Universal Cross-Compatibility between all Bolt 4K DevicesConnect any Bolt 4K RX device, regardless of model or range [NOTE: When pairing a Bolt 4K Monitor Module 1500 TX to a Bolt 4K Monitor Module 750 RX — or vice-versa — effective range will be 750ft. 1,500 feet of range is only accessible by pairing a TX 1500 with an RX 1500.]
Bolt App for Android and Apple iOSRemotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools
The Tech Spec
Features | Specification | Video | Up to 4Kp30 |
---|---|
Range | 1500ft |
Outputs | 1x HDMI 2.0 (up to 4Kp30) 2x 3G-SDI (up to 1080p60) |
Compatibility | Bolt 4K Family |
