End Of Life
Scan code: LN111928 Manufacturer code: US-1x2HR

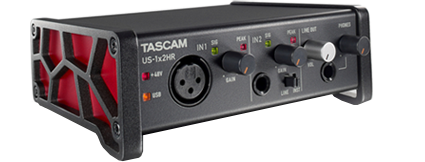

Tascam US-1x2HR USB Desktop Audio Interface

Tascam US-1x2HR High-Resolution USB Audio Interface, 2 in / 2 out, iOS compatibility

Thumbnail 1 : Tascam US-1x2HR USB Desktop Audio Interface Thumbnail 2 : Tascam US-1x2HR USB Desktop Audio Interface Thumbnail 3 : Tascam US-1x2HR USB Desktop Audio Interface
Scan code: LN111928 Manufacturer code: US-1x2HR
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

High-Resolution USB Audio Interface
Tascam - 'US-1x2HR'

Tascam US-1x2HR

includes Cubasis LE software!Tascam’s ‘US-1x2HR’ is the smallest member of the acclaimed ‘US-HR’ family of high-resolution USB audio interfaces. Featuring a simple one mic input/one instrument connectivity, the ‘US-1x2HR’ lends itself particularly well to those wish to record guitars/vocals at home. There’s a built-in loopback function and full support for ‘Open Broadcaster Software’, making the US-1x2HR the perfect choice for podcasters and content creators!

full ios compatibilityThe tidy and compact ‘US-1x2HR’ sports a broad range of features, such as high sample rates of 24-bit/192kHz, Ultra-HDDA mic preamps, 48V Phantom power, versatile USB-C connectivity and a wealth of included software so you’re free to start producing right away! This lightweight interface is perfect for mobile recording and production via your iOS device, with full iPad/iPhone compatibility!

192kHzMax Sample Rate

20Hz – 40kHzFrequency Response

109dBS/N Ratio

• Advanced version of Tascam's popular US-1x2 with even greater sound quality
• Can be used with Windows, Mac, iOS, iPadOS
• Standard 6.3-mm headphones output
• Sampling rates up to 192 kHz / 24 bit
• Low-latency monitoring function

Outstanding Performance

Tascam US-1x2HR

Ultra-HDDA microphone preamplifier!The US-1x2HR sports an Ultra-HDDA microphone preamplifier with a super low noise level that makes this interface the ideal tool for recording with a condenser microphone. You can also connect your electric guitar or bass directly using the line/instrument input and use plug-in effects on your computer recording (DAW) software. Or connect any instrument or hi-fi amplifier’s line output to the line input.

The US-1x2HR is also a great tool on the road: Combine it with an iPad and you can capture nature sounds, stream interviews from live events, or simply record your ideas with high quality wherever you go. Even if you’re not so familiar with recording equipment, the US-1x2HR’s user-friendly design enables you to use it right away.

Perfect Podcast Prodution

Tascam US-1x2HR

handy Loopback function! For online broadcasting, Internet communication and other live streaming applications, the US-1x2HR interface offers a Loopback function which can blend signals coming from your computer (each can be set to mono or stereo) and send that mix to the broadcasting or other software on the computer.

A software slider allows to adjust the final “broadcast” volume independently from the unit’s line output level setting.

Tascam - 'US-1x2HR'

The Tech Spec

Features Specification
Maximum input level (Mic/Line/Inst) +10 dBu / +20 dBu / +3 dBV
Maximum input gain (XLR/TRS) 58 dB / 45 dB
Maximum output level +6 dBV
Mic preamp equivalent input noise −128 dBu
S/N ratio 109 dB / 110 dB
Distortion (THD+N, mic to computer) 0.0013%
Crosstalk ≥ 95 dB
Power supply USB / DC 5 V, 700 mA
Power consumption 1.8 W
Overall dimensions (W × H × D) 146 mm × 55 mm × 120 mm
Weight 623 g

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
