Scan code: LN117682 Manufacturer code: SS-CDR250N

Tascam - 'SS-CDR250N' Networkable Solid-State/CD Audio Recorder

Tascam - 'SS-CDR250N' 19”, 1HE, Networkable Solid-State/CD Audio Recorder, WAV/MP3 Recording/Playback On CD, SD & USB

Thumbnail 1 : Tascam - 'SS-CDR250N' Networkable Solid-State/CD Audio Recorder Thumbnail 2 : Tascam - 'SS-CDR250N' Networkable Solid-State/CD Audio Recorder
Scan code: LN117682 Manufacturer code: SS-CDR250N
£888.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £30.34 / month (APR 14.9%)
Monthly Payment: £79.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £888.00
Total inc. interest: £956.62
Monthly Payment: £42.63
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £888.00
Total inc. interest: £1,022.94
Monthly Payment: £30.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £888.00
Total inc. interest: £1,092.09
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £22.18 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Networkable Solid-State/CD Audio Recorder
Tascam - 'SS-CDR250N'


tascam ss-cdr250n

High-Quality Audio ConvenienceThe Tascam SS-CDR250N is a networkable solid-state/CD recorder/player with a range of remote control options for professional applications such as broadcast studios or fixed installations. It records in WAV and MP3 format to SD/SDHC/SDXC and USB flash memory or in MP3 and audio CD formats to CD using a slot-loading drive. As the recorder can connect to an FTP server through a network, it can upload recordings automatically after a recording has been finished or download files for playback. It is also capable of time synchronisation using SNTP.

Featuring dual SD card slots, the SS-CDR250N provides additional security to important files compared to standard recorders. During recording, backups can be created on the second memory card, or the recorder can switch to the second card as soon as the first card is out of memory. It also closes files automatically in case there is a sudden power outage during recording to avoid loss of the whole recording session.

Amazing Features • Records to and plays from USB flash memory (up to 64 GB), SD/SDHC/SDXC cards (up to 128 GB), CD-R/CD-RW
• Time synchronisation using SNTP client enables event management with high accuracy
• Supports recording and playback of high-resolution files up to 96 kHz / 24 bit
• Pitch control and key control function for speed and key adjustments
• Auto Ready allows playback standby before the next track begins

Backup & Relay Recordings

tascam ss-cdr250n

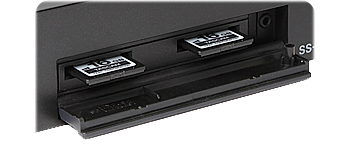

Use Two SD Cards & USB MediumWhen recording, the SS-CDR250N can use two SD cards and a USB flash drive to create backups or use several media in succession. A folder with the same file path as the current media will be made on the secondary media and used for backup and relay recording. When using the BACKUP option during recording, the unit stores audio files on both selected media in parallel. Such backups can help you avoid trouble in case of complications during recording. You can select from the menu which of the remaining media is used for the backup.

Relay function for long recording timesWhen using the RELAY option while recording, the SS-CDR250N uses multiple media in succession so continuous recording for long periods of time can take place. Also, you can join a dual-format recording (record in WAV and MP3 format simultaneously) with the relay function.

Automatic file closingTo kelp you keep your valuable recordings safe, it automatically saves and closes recording files every few seconds to safeguard against data loss in case of a power outage or technical fault.

Professional & Consumer Audio Inputs & Outputs

XLR, RCA, AES/EBU, SPDIF

XLR, RCA, AES/EBU, SPDIFThe SS-CDR250N features a range of audio inputs and outputs to integrate into virtually any environment. You can select from analogue XLR or RCA inputs and outputs or use AES/EBU (XLR) or SPDIF (Coaxial) to connect to digital equipment. You can also select 48-volt phantom power in the menu to use the XLR inputs with condenser microphones.

Dante Network

Dante NetworkBy installing a Tascam IF-DA2 Dante network card (available as an option), the SS-CDR250N/SS-R250N can be integrated easily into your Dante network. This card fits to an extension slot on the rear side and offers two channels of audio in both directions (in and out) at up to 96 kHz / 24 bits.

Remote Control By LAN, Parallel Port, RS-232C or Android/iOS App

Ethernet connection

Ethernet connectionBy connecting the recorder to an Ethernet network, you can remotely control it by Telnet. Access is possible from any kind of system, including Windows, Mac and Unix. A network connection is also required to make use of the built-in FTP functions to upload recorded files to a specified server or download files for playback. Since the unit also acts as an FTP server, files on the unit can also be accessed from a computer.

External parallel/serial control

External parallel/serial controlAlong with remote control and monitoring using the LAN function, external remote control using parallel and RS-232C serial protocol is also possible. Allowing the unit to be integrated into media systems and other settings.

RC-SS150 Dedicated wired remote control

RC-SS150 Dedicated wired remote controlThe dedicated RC-SS150 remote control unit is also connected and power-supplied using the unit's RS-232C port. With 12 flash start buttons arranged around an easily readable TFT display and gives you access to playlists with up to 96 tracks. You can also change playback area and playback mode or settings like Repeat, Auto Cue, Auto Ready and Incremental playback.

Dedicated control app for Android & iOS

Dedicated control app for Android & iOSWirelessly control the recorder’s transport functions, access menu settings and monitor levels in realtime from your Android or iOS tablet or smartphone. You can also use the app to lock the buttons on the unit’s front to prevent operation from the unit itself when it is set in a public place.. And the app shows icons to inform you when files are being uploaded or downloaded by FTP.

Versatile Control

tascam ss-cdr250n

Improved WorkflowThe SS-CDR250N can be controlled in a number of ways. The RC-SS150 remote control features a convenient interface with a colour LC display and 12 keys for flash playback. There is also a dedicated app available for iOS and Android devices that can control transport operations and multiple settings. You can also integrate the recorder into existing environments using serial or parallel control.

For audio connections, the SS-CDR250N comes with balanced and unbalanced analogue inputs and outputs along with SPDIF coaxial and AES/EBU digital I/O with sample rate converter. An optional Dante interface card includes two-channel input/output for Dante audio networks.

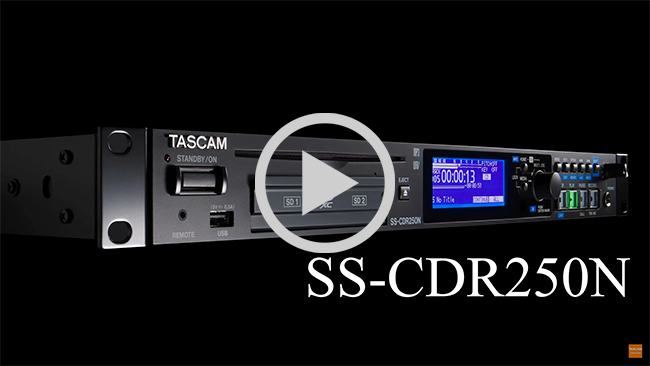

TASCAM SS-CDR250N Overview

The Tech Spec

Features Specification
Recording media SD cards (512 MB – 2 GB)
SDHC cards (4–32 GB)
SDXC cards (64–128 GB)
USB flash drives (512 MB – 64 GB)
CD-R/CD-RW
Recording and playback file formats MP3: 44.1/48 kHz, 64/128/192/256/320 Kbit/s
WAV: 44.1/48/96 kHz, 16/24 bits
CD-DA
Number of channels 2 channels (stereo)
1 channel (mono)
Analogue input (unbalanced) RCA pin jacks
Rated input level –10 dBV (0.316 Vrms)
Maximum input level +6 dBV (2.0 Vrms)
Input impedance 10 kΩ or higher
Analogue input (balanced) XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Nominal input level when used as line input +4 dBu (1.23 Vrms, when Ref.Level set to other than −9 dBFS)
+6 dBu (1.55 Vrms, when Ref. Level set to −9 dBFS)
Maximum input level (switchable) when used as line input +15 dBu (4.36 Vrms, Ref. Level: −9 dBFS)
+18 dBu (6.16 Vrms, Ref. Level: −14 dBFS)
+20 dBu (7.75 Vrms, Ref. Level: −16 dBFS)
+22 dBu (9.76 Vrms, Ref. Level: −18 dBFS)
+24 dBu (12.28 Vrms, Ref. Level: −20 dBFS)
When used as mic input (phantom power supported) Maximum input level: +4 dBu (1.23 Vrms)
Minimum input level: –70 dBu (245 μVrms) or higher
Input impedance: 2.2 kΩ or higher
Analogue output (unbalanced): RCA pin jacks
Rated output level: –10 dBV (0.316 Vrms)
Maximum output level: +6 dBV (2.0 Vrms)
Output impedance: 200 Ω
Analogue output (balanced): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level: +4 dBu (1.23 Vrms, when Ref.Level set to other than −9 dBFS), +6 dBu (1.55 Vrms, when Ref. Level set to −9 dBFS)
Maximum output level (switchable): +15 dBu (4.36 Vrms, Ref.Level: −9 dBFS), +18 dBu (6.16 Vrms, Ref.Level: −14 dBFS), +20 dBu (7.75 Vrms, Ref.Level: −16 dBFS), +22 dBu (9.76 Vrms, Ref. Level: −18 dBFS), +24 dBu (12.28 Vrms, Ref.Level: −20 dBFS)
Digital input (AES/EBU) XLR-3-31
Input impedance 110 Ω
Format AES3-2003 / IEC60958-4 (AES/EBU)
Supported sampling frequencies 44.1 kHz, 48 kHz, 96 kHz
When SRC ON, 32–192 kHz can be received
Digital input (SPDIF) RCA pin jack
Format IEC60958-3
Supported sampling frequencies 44.1 kHz, 48 kHz, 96 kHz
When SRC ON, 32–192 kHz can be received
Digital output (AES/EBU) XLR-3-32
Output impedance 110 Ω
Format AES3-2003 / IEC60958-4 (AES/EBU)
Supported sampling frequencies 44.1 kHz, 48 kHz, 96 kHz
Digital output (SPDIF) RCA pin jack
Remote jack 2.5-mm TRS jack (for Tascam RC-3F or RC-20, sold separately)
USB port 4-pin USB, A-type
Protocol USB 2.0 High Speed (480 Mbit/s)
Serial port (RS-232C) D-sub 9-pin
Parallel port D-sub 25-pin
Maximum input voltage +5.5 V
High-level minimum input voltage +2.31 V
Low-level maximum input voltage +0.99 V
Output format Open collector (10 Ω output impedance, 20 V withstand voltage, 35 mA maximum)
Low-level maximum output voltage 0.5 V
5 V power supply maximum supplied current 100 mA
Network connector (Ethernet) RJ45
Compatible standard 100BASE-TX
Frequency response (LINE IN or MIC IN to LINE OUT) 20 Hz – 20 kHz, ±0.5 dB (Fs = 44.1/48 kHz, JEITA)
20 Hz – 40 kHz, +0.5/-3 dB (Fs = 96 kHz, JEITA)
Distortion 0.002 % or less (LINE IN to LINE OUT, Ref. Level: −16 dBFS, Fs = 44.1/48/96 kHz, JEITA)
S/N ratio 106 dB or more (LINE IN to LINE OUT, Fs = 44.1/48/96 kHz, JEITA)
Dynamic range 106 dB or more (LINE IN to LINE OUT, Fs = 44.1/48/96 kHz, JEITA)
Crosstalk 100 dB or more (LINE IN to LINE OUT, Fs = 44.1/48/96 kHz, JEITA)
Equivalent input noise (EIN) −125 dBu or less (150 Ω, 20 kHz LPF, A-weighted)
Mains power AC 100–240 V, 50-60 Hz
Power consumption 20 W
Permissible operating temperature range 5–35 °C
Dimensions (W × H × D) 483 mm × 45 mm × 301 mm
Weight 3.2 kg
Specifications
Product Type
PC Interface N/A
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type
Additional Information
Scan Code LN117682
Model Number SS-CDR250N
GTIN 43774032648
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
