Tascam iM2X i iPad iPhone Audio Recorder

Tascam iM2X iOS Audio Recorder iPhone 4, 4G, iPad (30 Pin)

Scan code: LN49589 Manufacturer code: iM2X-BK Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Free Delivery Delivery options Free By DPD On 27th Apr 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

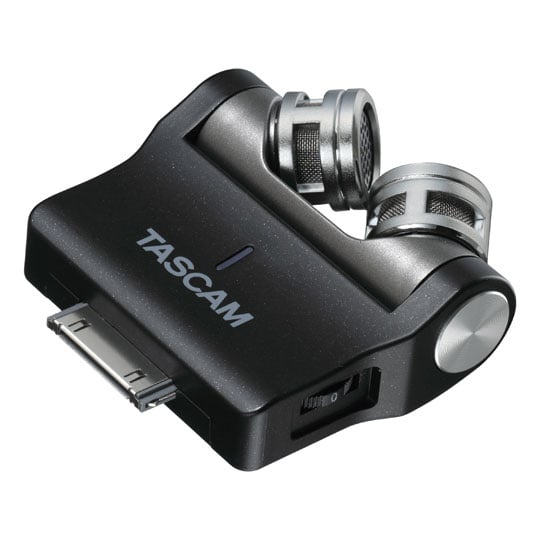

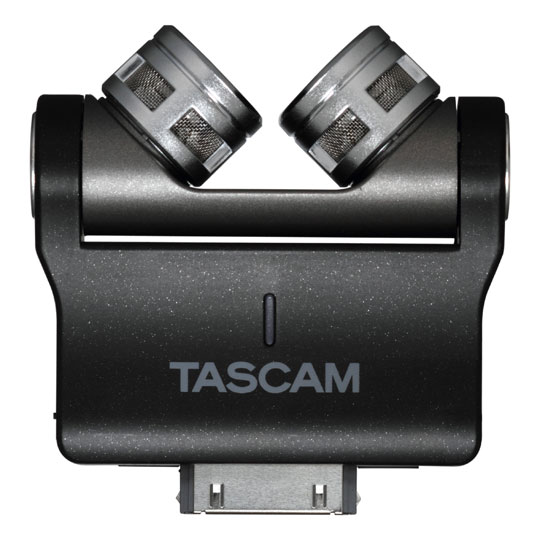

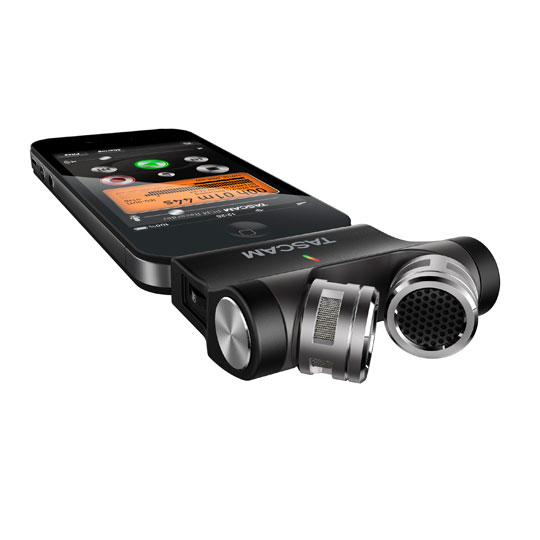

Product Overview The Tascam iM2X turns an Apple iPhone 4, iPad or iPod Touch 4G into a powerful PCM audio recorder for CD-quality recordings. It consists of a pair of condenser microphones and a high-quality preamp and plugs into the dock connector of the iOS device. The microphone elements are XY oriented for clear stereo definition and minimal phase differences. Moreover, they are adjustable over 180 degrees for the best sound placement.

Unlike mics that use the iOS device's built-in preamp, the iM2X with its internal A/D converter ensures low noise and better linearity in frequency response. The microphone elements also used in Tascam DR series recorders can handle sound pressure levels up to 125 dB to capture the loudest concerts and instruments without distortion. Thanks to an input level control and a two-colour level meter, level adjustment is very simple. A switchable limiter also contributes to this by reducing sudden peaks and protecting against unforeseen overload.

The iM2X powered through the dock connector, so no battery is required. A USB input is provided to charge the iOS device for long recordings, either through a computer or a USB charger.

An appropriate 2-track recording application (Tascam PCM Recorder) for iOS devices can be downloaded from AppStore at no charge.

X-Y setting ideal for the single-source recordings
The X-Y microphone design of the iM2X is suited for single-source recordingssuch as acoustic guitar, drums, announcements and more. Located directly on the iM2X is an Input Level/Clip LED meter to help you monitor your settings.

A-B setting ideal for the multi-source recordings
The iM2 employs an A-B microphone design, ideal for recording ambient stereo recordings like concerts, sound effects, landscape style sounds, ambience and more.

The same high-quality stereo condenser microphones as the DR-07MKII and DR-40
The iM2 and iM2X utilize the same high-quality stereo condenser microphones as the great-sounding, reliable DR-07MKII and DR-40. TASCAM used their decades of experience to ensure that the iM2 and iM2X capture the highest quality sounds.
These products achieve amazing audio quality with a S/N ratio greater than 95dB, wide frequency response and an analog limiter to reduce clipping.

Sensitivity up to 125dB SPL for peace of mind in the loudest settings
The iM2 and iM2X achieved mic sensitivity up to 125dB SPL allowing you to record from the quietest sounds to the loudest with confidence.

Vari-angle structure provide ease-of-use at every environment
Vari-angle structure allows the microphones to rotate 180 degrees, making them well suited for any orientation. Keep your device your jacket pocket, on the table, on a stand or hold it in your hands. A red line located on the iM2 mic capsules shows where the mics are facing.

Mounted AK5357 D/A converter made by AKM provides top-notch digital transference to your iPhone
For amazing audio conversion, the iM2X and iM2 employ an AKM A/D converter to ensure that sound passing through the TASCAM unit to the iOS devices is the best quality possible. Utilizing the AK5357 A/D converter achieves 100dB S/N ratio (@3V, 48kHz) and wide dynamic range.

Ultra light-weight, take it anywhere
The iM2 and iM2X are incredibly compact while still maintaining high-quality sound. You can carry these light-weight and compact products anywhere.

Dedicated battery is not required
The iM2 and iM2X are powered from your devices with minimal drain on your iPhone's battery life. With use of a mini-USB connector you are able to charge your iOS device via the iM2/iM2X for extended recordings.

TASCAM offers free Linear PCM Recording App
TASCAM's free "PCM Recorder" App is available for free on Apple's App Store. The iM2 and iM2X work with nearly all audio designed for the iPhone/iPad/iPod touch, but TASCAM recommends the Linear PCM Recorder App for maximum compatibility with your device.
Features • Supports the iPhone 4S, iPhone 4, iPad, iPad 2, iPad (3rd generation), iPod touch (4th generation)
• Streo microphone which plug-in 30-pin dock connector
• Records with CD quality (44.1kHz/16bit, depend to iOS)
• Sensitivity up to 125dB SPL
• Vari-angle structure
• Analog limiter
• A/D converter mounted (AKM AK5357)
• Power supply via dock connector

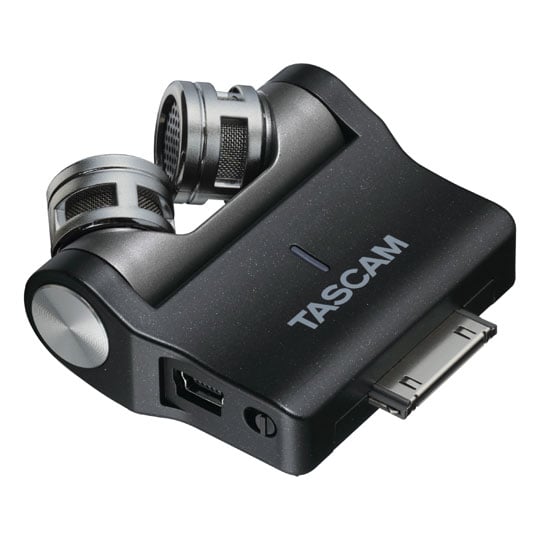

• mini-USB connector for recharge the iOS devices
• Input level control with a rotary volume
• Input meter (L+R, iM2X only)
• Ultra light-weight (30g)
• MFI (made for iPhone/iPad/iPod) certified
Polar Pattern (Direction)
  • Cardioid
  • X/Y Stereo
Frequency Response 10 Hz - 20 KHz
Wired / Wireless Wired
Connectors 1 x Apple 30-Pin
Weight 30 g
Including Shock Mount No
Including Pop Shield No
Including Mic Clip No
Powered By Ios Device
