Supermicro
Scan code: LN57372 Manufacturer code: X9SRH-7F Request call
£449.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £11.24 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

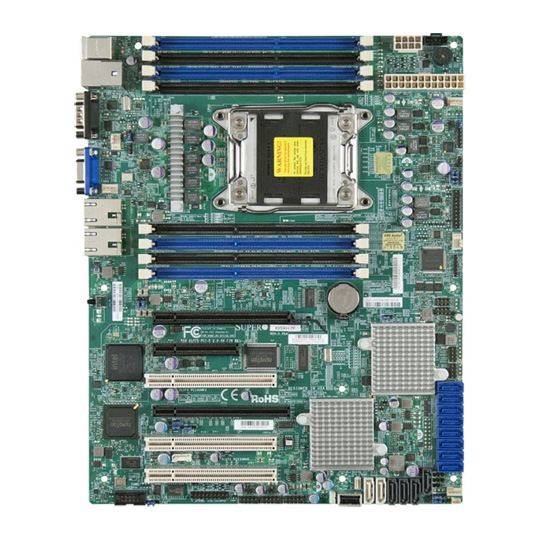

Product Overview Supermicro's New Generation X9 Serverboards offer the highest levels of performance, efficiency and scalability in the industry. The Supermicro X9 Serverboards are available in a variety of architectures including Twin and new Fat Twin, GPU Supercomputer, Data Center Optimized, SuperServer® Advantage, I/O Optimized, SuperWorkstation, and SuperStorage Solutions. Features • Single socket R (LGA 2011) supports Intel® Xeon® processor E5-2600/1600
• Intel® C602J chipset (7 Years Long Life)
• Up to 256GB LR/RDIMM or 64GB ECC/ non-ECC UDIMM; DDR3 up to 1600MHz
• Expansion slots: 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 2.0 x4 (in x8), & 3 PCI-32 slots
• Intel® i350 Dual port GbE LAN
• 2 SATA3 (6Gbps), 4 SATA2 (3Gbps)
• 8x SAS2 (6Gbps) ports via LSI 2308
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 9 USB 2.0 ports (2 rear + 6 via header + 1 Type A)
• DOM power connector support
Specifications
Specifications
Form Factor ATX
CPU Socket 2011
QPI Speed N/A
Chipset Intel C602
Memory Type DDR3
Memory Channel Quad
Memory Type (ECC) ECC
Memory Type (R/U) Registered
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
Maximum Memory Capacity 512GB
Graphics Connectors D-Sub (VGA)
Graphics Interface PCIe 3.0 (x16)
SLI Support Yes
Crossfire Support Yes
Audio
Network Interface Type
Network Interface Chip/Modules
SATA SATA III 6Gb/s
RAID Support via SATA
Storage Mode Support
Water Cooled No
Expansion Slots
  • 3 x PCI (32 bit)
  • 1 x PCIe 2.0 x8 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
Internal I/O
  • 1 x Serial (COM) Header
  • 1 x TPM Header
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x D-Sub
  • 2 x PS/2 Keyboard/Mouse Combo
  • 8 x SAS
  • 1 x Serial (COM)
  • 4 x USB 2.0
  • 2 x USB 3.0
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
