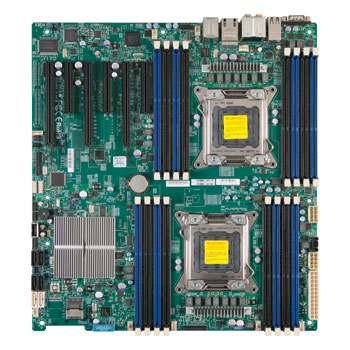

SuperMicro X9DAi S 2011 x 2, DDR3, SATA III 6Gb/s, PCI-E 3.0

SuperMicro X9DAi S 2011 x 2, DDR3, SATA III 6Gb/s, PCI-E 3.0

Supermicro
Scan code: LN44035 Manufacturer code: MBD-X9DAI-O Request call
£470.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £11.76 / month (APR 15.9%)
3xs Approved High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Supermicro's New Generation X9 Serverboards offer the highest levels of performance, efficiency and scalability in the industry. The Supermicro X9 Serverboards are available in a variety of architectures including Twin and new Fat Twin, GPU Supercomputer, Data Center Optimized, SuperServer® Advantage, I/O Optimized, SuperWorkstation, and SuperStorage Solutions. These Serverboards offers numerous advantages including up to 768GB of Reg. ECC DDR3-1600MHz memory in 24 DIMM slots, SATA 3.0 and SAS 2.0 (6Gb/s) HDD support, ConnectX FDR/QDR InfiniBand ports, dual 10 Gigabit Ethernet, Quad Ethernet LAN, PCI-E 3.0 technology, LSI® 2308 controller with software RAID and LSI® 2208 controller with hardware RAID, IPMI 2.0, and Intel® Xeon® processor E5-2600/1600 family for highest performance. With this New Generation X9 Serverboard Platform Supermicro offers the most extensive selection of solutions for Data Center, Enterprise IT, Cloud Computing, Graphics, Technical Computing, and HPC environments. Features • Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600
• Intel® C602 chipset; QPI up to 8.0GT/s
• Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
• Expansion slots: 3 x16 PCI-E 3.0, 2 x8 PCI-E 3.0 & 1 x4 PCI-E 3.0 (in x8)
• Intel® i350 Dual port GbE LAN
• 8x SATA2 and 2x SATA3 ports
• 4x USB 3.0 and 7x USB 2.0 ports
Specifications
Specifications
Form Factor E-ATX
CPU Socket 2011 x2
QPI Speed 8.0 GT/s
Chipset Intel C602
Memory Type DDR3
Memory Channel
Memory Type (ECC) ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • DDR - 800
  • DDR2 - 1066.
  • DDR2 - 1333.
  • DDR3 - 1600
Maximum Memory Capacity 512GB
Graphics Connectors
Graphics Interface None
SLI Support N/A
Crossfire Support N/A
Audio
Network Interface Type
Network Interface Chip/Modules
SATA N/A
RAID Support via
Storage Mode Support
Water Cooled No
Expansion Slots
  • 3 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x8
Internal I/O
  • 8 x 4pin Fan (V)
  • 8 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
Back Panel
  • 1 x Headphone / Mic
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x RJ45 Dedicated IPMI port
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Reviews
Rated 2 out of 5 by 1 reviewer.
Rated 2 out of 5 by Beware ! Will not run Server 2012 Top board with excellent features. However this board will not run Server 2012 or Server 2012 R2 out of the box it does not even boot off the 2012 install DVD without crashing. To get it to run this OS you will need to faff about contacting Supermicro for a beta bios firmware update. Do yourself a big favour and buy another board that does actually run 2012 out of the box. 05 December 2014
