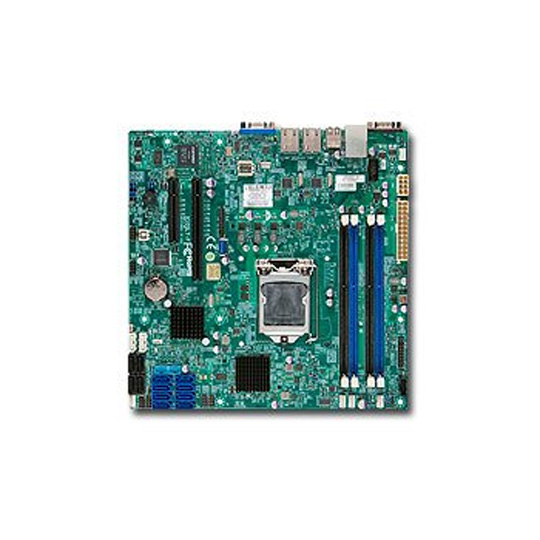

Supermicro X10SL7-F Xeon Socket 1150 Motherboard

Supermicro X10SL7-F, Single socket H3 (LGA 1150) supports Xeon® E3-1200 v3, 4th gen. Core i3, Pentium, Celeron CPU

Supermicro
Scan code: LN53360 Manufacturer code: X10SL7-F Request call
£218.99Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling. Features • Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3, 4th gen. Core i3, Pentium, Celeron processors
• Intel® C222 Express PCH
• Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
• Dual Gigabit Ethernet LAN ports via Intel® i210AT
• 2x SATA (6Gbps), 4x SATA (3Gbps)
• 8x SAS2 (6Gbps) via LSI 2308
• Expansion slots: 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 2.0 x4 (in x8)
• 2x USB 3.0 (1 Type-A + 1 via header) 6x USB 2.0 (4 rear + 2 via header)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• SATA DOM power connector support
• VGA D-sub connector, TPM header
Specifications
Specifications
Form Factor Micro ATX
CPU Socket 1150
QPI Speed N/A
Chipset Intel C222
Memory Type DDR3
Memory Channel Dual
Memory Type (ECC) ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • DDR3 - 1333
  • DDR3 - 1600
Maximum Memory Capacity 32GB
Graphics Connectors D-Sub (VGA)
Graphics Interface PCIe 3.0 (x8)
SLI Support N/A
Crossfire Support N/A
Audio
Network Interface Type
Network Interface Chip/Modules
SATA SATA III 6Gb/s
RAID Support via SATA
Storage Mode Support
Water Cooled No
Expansion Slots
  • 1 x PCIe 2.0 x4
  • 1 x PCIe 3.0 x8
Internal I/O
Back Panel
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
