Scan code: LN62098 Manufacturer code: SYS-7047A-73

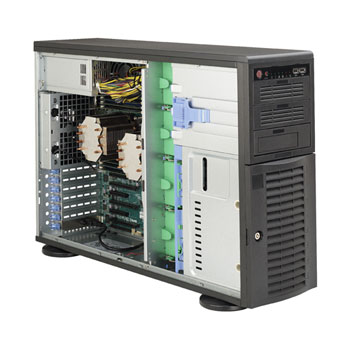

Supermicro SuperWorkstation 7047A-73 Xeon Based Tower Server

Supermicro SYS-7047A-73 Superworkstation, Intel C602, S2011 x2, PCIe 3.0 (x16), ECC DDR3, Dual Gigabit LAN, SAS2/SATA3

Thumbnail 1 : Supermicro SuperWorkstation 7047A-73 Xeon Based Tower Server Thumbnail 2 : Supermicro SuperWorkstation 7047A-73 Xeon Based Tower Server
Scan code: LN62098 Manufacturer code: SYS-7047A-73
£1,239.98Item currently awaiting an ETA
Pre order
From £59.52 / month (APR 14.9%)
Monthly Payment: £215.17
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.98
Total inc. interest: £1,290.99
Monthly Payment: £111.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.98
Total inc. interest: £1,335.81
Monthly Payment: £76.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.98
Total inc. interest: £1,381.61
Monthly Payment: £59.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.98
Total inc. interest: £1,428.39
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £30.97 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview Supermicro SuperWorkstation 7047A-73 Tower Server. Supports Intel® Xeon® processor E5-2600 and E5-2600 v2. Integrated Super x9DA7 Motherboard. Features • Whisper Quiet Workstation (27dB)
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM sockets
• Expansion slots: 3 (x16) PCI-E 3.0,2 (x8) PCI-E 3.0 & 1 (x4) PCI-E 3.0
• Intel® i350 Dual port Gigabit Ethernet
• 8x SAS2 ports via LSA 2308
• 8x 3.5" Hot-swap SATA HDD Bays
• 1200W High Efficiency Power Supply - Platinum Level (94%)
• Tower or Rackmount
Specifications
Edition
Form Factor 4U Rackmount / Tower
CPU Included No
CPU Type Intel Xeon
CPU Model E5-2600 and E5-2600 v2
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket 2011 x2
Chipset Intel C602
Motherboard Form Factor
Motherboard Model
Memory Type DDR3
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / UDIMM
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
  • DDR3 - 800
Max. Memory Capacity 1TB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 3.0 (x16)
Expansion Slots
  • 3 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
  • 2 x PCIe 3.0 x8
SATA SATA3
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays
  • 8 x 3.5" SATA Hot-swap
  • 1 x 5.25" Bay for Floppy Drive
  • 2 x 5.25" External
Backplane I/O
RAID Support SAS/SATA
Internal I/O
  • 1 x DOM (Disk on Module) power connector
  • 6 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 1 x USB 2.0 Type-A Port
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x HDD Activity LED
  • 2 x LAN Activity LEDs
  • 1 x Power LED
  • 1 x Power On/Off button
  • 1 x System Overheat / Fan Fail LED
  • 1 x System Reset button
  • 2 x USB 3.0
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x Headphone / Mic
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Serial (COM)
  • 4 x USB 2.0
  • 2 x USB 3.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable No
PSU Wattage 1200 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 178 x 452 x 648 mm (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN62098
Model Number SYS-7047A-73
GTIN 672042112913
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
