SuperO 2U Rackmount Server 2027PR-HTTR by Supermicro for Intel Xeon

Supermicro SuperO 2027PR-HTTR, Intel C602,S2011, DDR3 DDR3 - 1066 DDR3 - 1333 DDR3 - 1600 DDR3 - 1866 DDR3 - 800 ECC Reg

Scan code: LN58897 Manufacturer code: 2027PR-HTTR Request call
£3,285.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £82.06 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

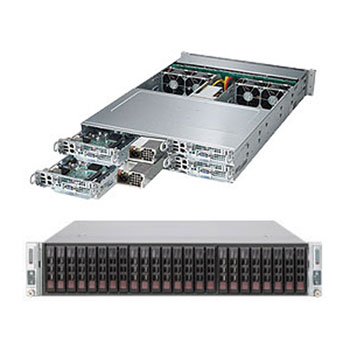

Product Overview 2U Rackmount Server 2027PR-HTTR supporting Intel Xeon E5-2600 and E5-2600 v2 Processors. Features Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family
• Up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 1866MHz; 16x DIMM sockets
• 1x PCI-E 3.0 x16 Low-profile slot
• Intel® X540 Dual port 10GBase-T
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 6x 2.5" Hot-swap SAS/SATA HDD Bays
• 2000W Redundant Power Supplies Platinum Level (94%)

CPU, Memory, Expansion Slots & I/O Specifications below refer to individual nodes.
Form Factor 2U Rackmount
CPU Included No
CPU Type Intel Xeon
Core 12 Core
No. of Threads N/A
CPU Model E5-2600 / E5-2600 v2 family
Clock Speed . GHz
Burst Frequency N/A
CPU Cooler
CPU Socket 2011
Chipset Intel C602
Motherboard Form Factor
Memory Type DDR3
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
  • DDR3 - 800
Max. Memory Capacity 1TB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
GPU Chipset
GPU Cores
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots 1 x PCIe 3.0 x16
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 6 x 2.5" SAS / SATA Hot-swap
Internal I/O
  • 4 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x Serial (COM)
  • 2 x USB 2.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 2000 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 438 x 88 x 724mm (mm WxHxD)
