Scan code: LN2301 Manufacturer code: SM-SC830P4

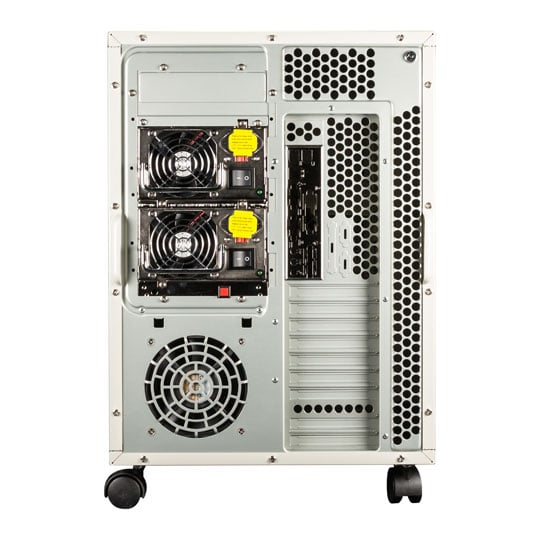

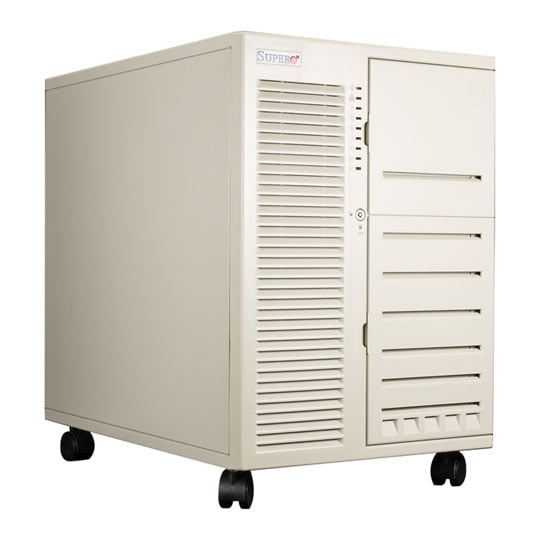

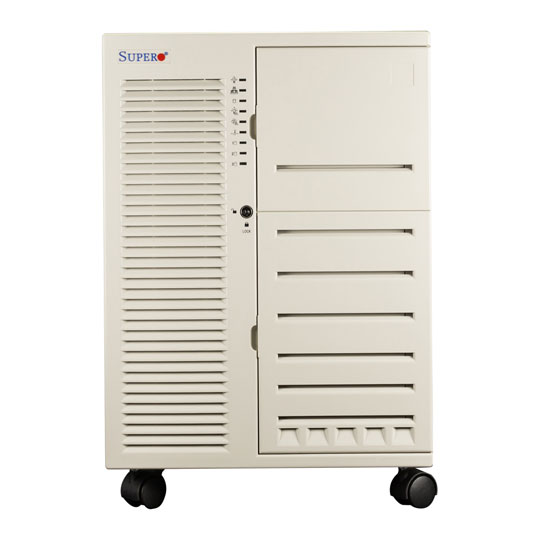

Supermicro SC-830 SWTX Server Case with Redundant PSU

Supermicro SuperChassis SM-SC830P4, Pedestal Server Chassis, SWTX, Beige, 9x 5.25", with 400+400W Triple-redundant PSU

Thumbnail 1 : Supermicro SC-830 SWTX Server Case with Redundant PSU Thumbnail 2 : Supermicro SC-830 SWTX Server Case with Redundant PSU Thumbnail 3 : Supermicro SC-830 SWTX Server Case with Redundant PSU
Scan code: LN2301 Manufacturer code: SM-SC830P4
£119.99
From £10.78 / month (APR 14.9%)
Monthly Payment: £20.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £124.93
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview SuperMicro SC-830 Pedestal Server Chassis with support for motherboards up to 13" x 18" SWTX. Features • Support for SWTX Motherboards.
• 400W+400W Redundant Hot-swap, Power Supply.
• 9x 5.25" Peripheral Drive Bays.
• 2x 3.5" Drive Bays.
• 9x Full-height, Full-length expansion slot.
• 8x 90mm Hot-swappable Fans with tachometer sensors.
• 2x 120mm Rear-exhaust Fans.
• Power Switch & 5 LED Indicators.
• Adjustable Airflow Guides.
• System Status LEDs.
• Fully Detachable Side Panels.
Specifications
Core Chassis Specifications
Case Edition SuperChassis 830P4
Case Form Factor Pedestal
Motherboard Form Factor SWTX (13" x 18" max.)
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 2 x LAN Activity LEDs
  • 1 x Power fail LED
  • 1 x Power LED
  • 1 x Power On/Off button
  • 1 x System Overheat LED
  • 1 x System Reset button
Drive Bays
  • 2 x 3.5" External
  • 9 x 5.25" External
Standard Expansion Slots 9
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120mm
  • 8 x 90mm
Fans Included
  • 2 x 120mm
  • 8 x 90mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included) 400 W
PSU 80+ Rating (If Included)
PSU Support 400+400W Triple-redundant AC PSU w/o PFC
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Beige
Chassis Contruction Materials Steel
Dimensions 381 x 505 x 570 (WxHxD mm)
Weight 35 kg (Approx)
