Scan code: LN84157 Manufacturer code: MBD-X11SSZ-F-O

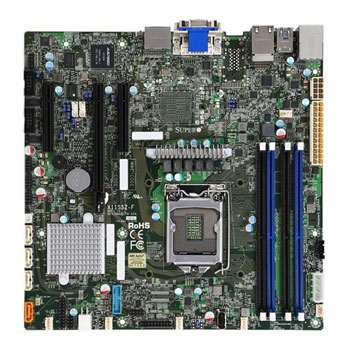

Supermicro MBD-X11SSZ-F-O Motherboard

Supermicro MBD-X11SSZ-F-O, Xwon Micro-ATX S1151, C236 chipset,

Thumbnail 1 : Supermicro MBD-X11SSZ-F-O Motherboard Thumbnail 2 : Supermicro MBD-X11SSZ-F-O Motherboard Thumbnail 3 : Supermicro MBD-X11SSZ-F-O Motherboard Thumbnail 4 : Supermicro MBD-X11SSZ-F-O Motherboard
Scan code: LN84157 Manufacturer code: MBD-X11SSZ-F-O
£227.99Item currently awaiting an ETA
Pre order
From £10.95 / month (APR 14.9%)
Monthly Payment: £39.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £227.99
Total inc. interest: £237.35
Monthly Payment: £20.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £227.99
Total inc. interest: £245.61
Monthly Payment: £14.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £227.99
Total inc. interest: £254.03
Monthly Payment: £10.95
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £227.99
Total inc. interest: £262.60
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £5.69 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Supermicro's single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications. Features • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™i7/i5/ i3 series, Intel® Celeron® and Intel® Pentium®
• Intel® C236 chipset
• Up to 64GB DDR4 2400MHz ECC/Non-ECC Unbuffered UDIMM; 4 DIMM slots
• 1 PCI-E 3.0 x16 (in x16),
• 2 PCI-E 3.0 x4 (in x8)
• Dual GbE LAN w/ Intel i219LM + i210AT
• 2 DP, 1 DVI-I, 3 independent displays via Intel HD Graphics, VGA port for BMC
• 4 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
• I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
• IPMI, AMT vPro
• Supports 12V DC power input
Specifications
Core Specifications
Edition X11SSZ-F
Form Factor MicroATX
CPU Socket 1151
Chipset Intel C236
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
Max. Memory Capacity 64GB
Audio
Audio ALC 888S HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16) / Aspeed AST2400 32MB Onboard
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Integrated ASPEED AST2400
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort
  • DVI-I
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x4
SATA Support SATA3
RAID Support via RAID 0/1/10/5 (Intel RSTe)
Storage Mode Support Intel Rapid Storage Technology Enterprise
Internal I/O 1 x TPM 2.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 1 x D-Sub (VGA) Out
  • 2 x DisplayPort
  • 1 x DVI-I
  • 2 x USB 2.0
  • 2 x USB 3.0
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Note
Warranty
