Steinberg Cubase 10.5 Pro & AXR4U USB 3.0 Audio Interface

Steinberg Cubase 10.5 Pro & AXR4U USB 3.0 Audio Interface, 28 x 24, 4 Mic/Line Inputs, RND Silk, SSPL

Thumbnail 1 : Steinberg Cubase 10.5 Pro & AXR4U USB 3.0 Audio Interface Thumbnail 2 : Steinberg Cubase 10.5 Pro & AXR4U USB 3.0 Audio Interface Thumbnail 3 : Steinberg Cubase 10.5 Pro & AXR4U USB 3.0 Audio Interface Thumbnail 4 : Steinberg Cubase 10.5 Pro & AXR4U USB 3.0 Audio Interface
Scan code: LN105566 Manufacturer code: 46983
£2,252.00Item currently awaiting an ETA
Pre order
From £46.92 / month (APR 0%)
Monthly Payment: £187.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £2,252.00
Total inc. interest: £2,252.00
Monthly Payment: £93.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £2,252.00
Total inc. interest: £2,252.00
Monthly Payment: £62.56
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £2,252.00
Total inc. interest: £2,252.00
Monthly Payment: £46.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £2,252.00
Total inc. interest: £2,252.00
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

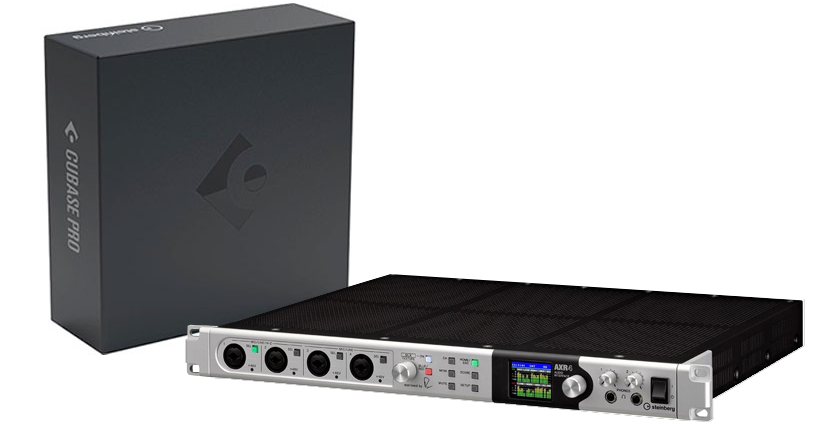

The Ultimate Production Suite Bundle
Steinberg AXR4U & Cubase 10.5

Steinberg AXR4 Audio Interface

handpicked by our studio expertsDo believe your eyes! This bundle will give you a full licence of Cubase 10.5 Pro AND the new UR-24C USB Interface at a price that at first might seem too good to be true!! We can do this by combining the Cubase AI licence (included with the UR-24C interface) with an upgrade from Cubase AI to the latest version of Cubase Pro, in this case 10.5.

To unlock the full licence, you first need to install and register Cubase AI, then install and register the update from AI to Pro. Once upgraded, this licence is then identical to the retail Cubase Pro 10.5 and can be upgraded in the same way in the future.

The studio experts here at Scan Pro Audio have carefully selected these items to deliver the premier studio recording experience. Steinberg's AXR4U Studio-Grade USB 3.0 28 x 24 Audio Interface is an elite-tier interface which will capture your source signal in world-class quality and clarity, and with such an array of I/O, this is perfect for recording the whole band!

So now you've got your music down on to your DAW, what next? Make your composition the masterpiece it's capable of being using Cubase 10.5 Pro of course!.

*Steinberg e-licencer included in box*

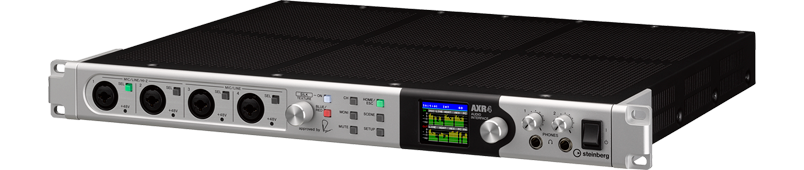

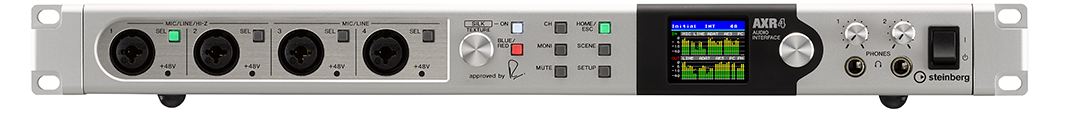

Steinberg AXR4U
Studio-Grade USB 3.0 28 x 24 Audio Interface

Steinberg AXR4 Audio Interface

Superior USB 3.0 Interface for Mac and PCIf you’re searching for the ultimate USB 3.0 audio interface, you’ve found it, the latest innovation from Steinberg, the incredible 'AXR4U'. Steinberg’s AXR4U is a premium, studio-grade 28 x 24 audio interface, boasting incredible 32-bit/384kHz converters, versatile USB 3.0 connectivity and 4 hybrid mic preamps with magnificent RND Silk emulation.

The AXR4U has an abundance of connectivity options too, dual ADAT ports, AES/EBU, MIDI, and word clock, the AXR4U delivers state-of-the-art SSPLL ultra-low jitter reduction and latency-free monitoring, alongside Yamaha DSP-powered effects. Steinberg's AXR4U is also packing a 28 x 24 full matrix mixer, and ships with downloadable Cubase AI and Advanced FX Suite software absolutely free!

The Professional's Choice

Steinberg AXR4 Audio Interface

for both small and large studiosSteinberg’s AXR4U is more than capable of the high-speed data transfer which is critical for professional-grade recording. The broad choice of I/O on offer provide all of the connections that high-end studios could possibly need. 4 XLR/TRS combo contain premium digitally controlled hybrid mic preamps, each of these featuring switchable Rupert Neve Designs Silk circuits to deliver the most elite-tier audio possible.

Steinberg AXR4 Audio Interface

the pinnacle of digital audioAlongside the 4 combo inputs, the more than ample 28in/24out options comprise of 8 TRS line ins, 8 TRS line outs, 2 x 8-channel ADAT/S/PDIF (or 1 x 8 ADAT and 1 x 8 AES/EBU) plus a future-proofed digital I/O card slot. Word clock, MIDI I/O poirts, alongside dual headphone jacks with separate volume controls are also included. With 32-bit integer recording up to an incredible 384kHz, zero-latency DSP monitoring, cutting-edge SSPLL jitter suppression, and a versatile 28 x 24 matrix mixer, the AXR4U represents the pinnacle in audio interfaces for those looking to seek the holy-grail in audio quality.

The Product of a Meticulous Development Process


TRULY a 'FLAGSHIP' InterfaceThe foundations of any professional audio interface and professional sound quality begins at the input stage with the microphone preamplifiers. The AXR4U boasts 4 spectacular, organic-sounding hybrid mic preamps engineered by Yamaha.

Engineered and designed under the keen eye of Yamaha’s ‘Natural Sound Initiative’, the component selection, physical construction, circuit design and grounding have all been scrupulously evaluated and honed in the development stages of the AXR4U.

The last adjustments were undertaken after substantial subjective listening examinations by professional engineers. The results speak for themselves and the AXR4U is the very definition and embodiment of ‘flagship’.

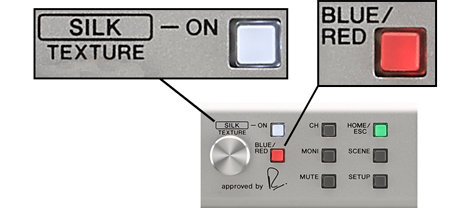

Rupert Neve Designs 'Silk' Technology Inside


hybrid microphone preampsRecording engineers have employed Rupert Neve designed preamps for decades to deliver a sound rich in organic compression and natural saturation. Rupert Neve Designs ‘Silk’, is an emulation in modern transformer design that replicates the vintage sonic characteristics of Rupert’s ’80 Series’ console modules from the 70’s.

The Silk processing onboard the AXR4U’s hybrid microphone preamps offer 2 useful applications. ‘Red’ for a ‘shimmering’ vibe, and ‘Blue’ for when power and thump is required, whilst a variable ‘Texture’ control adjusts the harmonic content to best compliment the source signal.

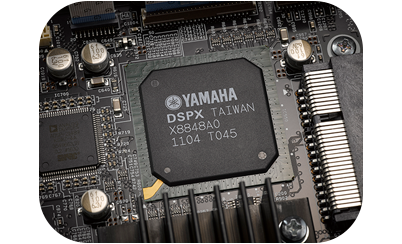

Yamaha DSP-Powered Effects


next-gen DSPX chipPowered via Yamaha’s next generation ‘DSPX’ chip, the AXR4U lets you reap the rewards of dspMixFX AXR technology for zero-latency monitoring, alongside the widely-celebrated ‘Sweet Spot Morphing Channel Strip’, 'REV-X reverb', and the ‘Vintage Classics VCM Compressor 276’ and ‘VCM EQ601’ – an iconic 70’s EQ with 6 parametric bands and a Drive mode to enhance your original signal with warm, elegant analogue harmonic distortion.

If you’re a Cubase user, you’ll find all these advanced monitoring capabilities are integrated into the applications interface by ‘True Integrated Monitoring Technology’.

'SSPLL' Technology Inside

4K Recording

Advanced Virtual Jitter ReductionEach time you add more and more devices with clocks to your setup, additive audio band jitter results from clocks competing against each other. One solution, although expensive, is to add a high-end master clock with a voltage-controlled crystal oscillator and sample rate conversion. Steinberg’s ‘SSPLL’ (Super Suppression Phase Locked Loop), is a complex technology for removing audio band jitter.

It’s a cost-effective remedy and it easily can stand next to much more expensive professional master clocks. Robust and extremely tolerant of wide clock frequency variations, SSPLL ensures all your gear works in a virtually jitter-free and reliable manner.

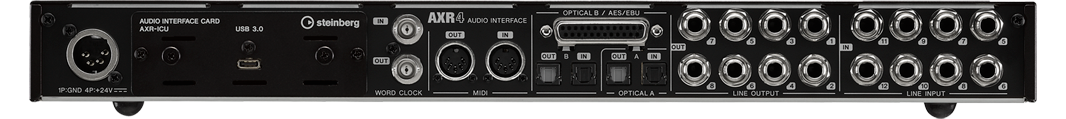

Get connectedSteinberg ensured the AXR4U was sporting an abundance of connection options, which makes it the ideal interface for literally any pro-level computer-based studio or live sound scenario. +48V Phantom Power across all XLR/TRS inputs, you can connect both your condenser and dynamic mics as well as line-level signals. Furthermore, inputs 1 & 2 take hi-Z signals for guitars, keyboards and other studio equipment or playback devices. With a broad selection of digital and analogue output options and up to 3 units able to be daisy-chained via USB 3.0, the Steinberg AXR4U has you covered when it comes to connectivity in the realm of professional audio production.

The Tech Spec

Features Specification
Number of Mic Inputs 4
Number of Line Inputs 8
Number of Instrument Inputs 2
Number of Line Outs 8
Headphone Outs 2
Phantom Power Yes
Number of ADAT Connectors 2
Number of AES/EBU Connectors 1
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock 1xIn, 1xOut
Max. resolution in bit 32 bit
USB Bus-Powered No
USB Version 3.0
Width in mm 480 mm
Height in mm 45 mm

Steinberg - Cubase 10.5 Pro

cubase 10.5 pro

with a host of new features Cubase 10.5 has landed and follows the highly anticipated landmark release with a host of major improvements, added tools to inspire and many workflow refinements. Whether you are looking to be creatively inspired or whether you need new ways to enhance your workflow, Cubase 10.5’s new features are specifically designed to help you work better.

Spectral Comparison EQ

cubase 10.5 pro

Work smarter Tidying up frequencies in the mix to allow room for other instruments to breathe is the key to a great mix. Cubase 10.5 Pro’s new Spectral Comparison mode in the Channel EQ section is designed to help you easily visualise where action is needed. Simply route a second signal from any track into the EQ for a visual comparison of spectral curves in the EQ display. Switch between the EQ controls of the source track and comparison channel and tweak the mix without losing track of what you’re currently doing.

Video Export Render

cubase 10.5 pro

Export video with ease The ability to score to picture is one of Cubase’s many fantastic strengths. With 10.5 Pro you can now easily export video images (and audio) for your clients and collaborators direct from within the DAW. This great new features allows you to render videos as mp4 with H.264 video compression and 16-bit stereo audio in 44.1kHz and 48kHz. Choose to export either the whole video or selected footage, adding the timecode to the video export for the step in your production process.

MultiTap Delay

cubase 10.5 pro

streamlined workflow The addition of MultiTap Delay is made for musicians and includes all the inspiring and creative options you could need. Upto 8 taps for each delay loop can easily be created and then edited as much as you wish. Cubase 10.5 Pro allows you to add effects with one click to the complete output, or just the delay loops, or even each individual tap. Whilst different character presets deliver the sound of of digital delays or vintage echo’s.

Padshop 2

cubase 10.5 pro

create unique sonic sculptures The highly praised granular synthesizer Padshop 2 has undergone vast improvemtns and now has even more tools to encourage your creativity. At the centre of Padshop 2 is the new spectral oscillator which opens the door to unheard soundscapes and allows you to turn your own samples into magnificent and unique sonic landscapes. Add flavour to your sounds with the newly added arpeggiator and add some effects for that finishing touch. Choose from the 100 new presets or get to work creating your very own straight away.

Colourised Mixer Channels

cubase 10.5 pro

easily keep track of where you are It’s imperative to maintain a clear visual overview as your project grows to ensure your workflow isn’t slowed down by constantly losing track of where things are located. Cubase 10.5 Pro adds the option to colourise channels in the mix console, leaving you to focus on the mix in hand as you can now intuitively find the channels you’re looking for.

Import Tracks From Projects

cubase 10.5 pro

Intelligent and Intuitive Transferring data to and from projects or creating entirely new project templates has been made much easier thanks to the addition of the new track import function. Simply import multiple track types from your other projects and select the tracks attributes which you wish to import. Need to use the same drum mix for different projects? No worries, Cubase has your back. With one click, the Auto Map function can even match the newly imported tracks to existing tracks which share the same name.

Retrospective MIDI Record

cubase 10.5 pro

No more frustration Have you ever delivered your best playing performance, but noticed you weren’t recording? Probably. It happens to us all. Fear not though, because the MIDI Retrospective Recording feature has undergone a complete overhaul to ensure this common frustration becomes a thing of the past. Cubase tracks your MIDI input, even when not recording, and brings back your chords and melodies as a stacked cycle or one continuous performance with just one click.

Combined Select Tools

cubase 10.5 pro

for when time is of the essence ‘Combined Select Tools’ is a handy new feature which allows you to make your editing workflow much more economical by combining your two most used tools into one great feature. Activate the new tool mode and the selection tools for both objects and ranges can be used at the same time, with no need to change tools, leaving your workflow uninterrupted. If you’re a professional engineer working on the clock, time is crucial. This new tool could well turn out to be your favourite new feature.

System Requirements

Features Specification
Operating systems (Windows) 64-bit Windows 10 Version 1903, 64-bit Windows 10 Version 1809
Operating systems (Mac) macOS Mojave
CPU minimum Intel Core i series or AMD Ryzen multi-core
CPU recommended Intel i5 or faster
RAM minimum 4 GB
RAM recommended 8 GB
Hard disk free space 30 GB
Display resolution minimum 1440 x 900
Display resolution recommended 1920 x 1080
Graphics Graphics card with DirectX 10 and WDDM 1.1 support (Windows only)
Port USB Type-A for USB-eLicenser
Internet connection for installer download, license activation, account sign up and product registration
Notes This software version does not support 32-bit plug-ins.
Computer Interface Type
Connections (Input)
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max)
Bit Resolution
iPad Compatible No
Connections (Output)
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN105566
Model Number 46983
