Scan code: LN42984 Manufacturer code: MPEX1394B3

StarTech Mini PCI Express slot to 2 Port FireWire 800 and 1 port 400

StarTech.com 3 Port 2b1a IEEE 1394 Mini PCI Express FireWire Card Adapter Low Profile (Full Height Bracket incl.)

Thumbnail 1 : StarTech Mini PCI Express slot to 2 Port FireWire 800 and 1 port 400 Thumbnail 2 : StarTech Mini PCI Express slot to 2 Port FireWire 800 and 1 port 400 Thumbnail 3 : StarTech Mini PCI Express slot to 2 Port FireWire 800 and 1 port 400 Thumbnail 4 : StarTech Mini PCI Express slot to 2 Port FireWire 800 and 1 port 400
Scan code: LN42984 Manufacturer code: MPEX1394B3
£53.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

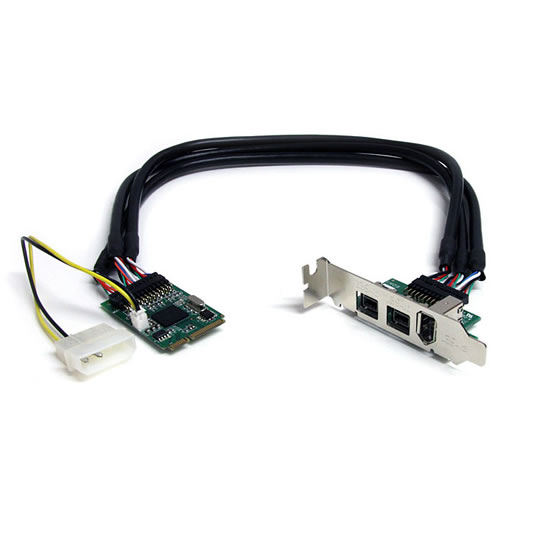

Product Overview The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.

Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features • Bus Type: mini PCI Express
• Connector Type(s): 1 - Mini PCI Express x1 (52 pin) Male
• Card Type: Low Profile
• Ports: 3

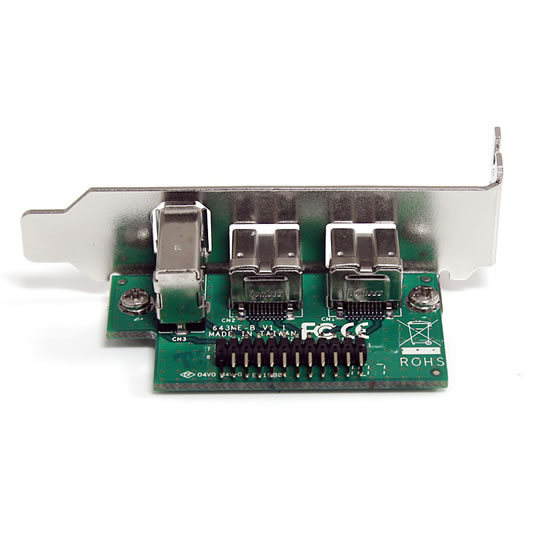

• External Ports: 1x Firewire 400 (6 pin; IEEE 1394a) Female
• External Ports: 2x Firewire 800 (9 pin; IEEE 1394b) Female
• Product Height: 4 mm
• Product Length: 50 mm
• Product Width: 30 mm
• Product Weight: 6.8 g
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -54°C to 150°C
• Chipset ID: LSI L-FW643E2-F139G
• OS Compatibility: Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ Server 2008 R2/7(32/64-bit), and Linux

Connector(s)
Connector Type(s)Mini PCI Express x1 (52 pin) Male
External PortsFirewire 400 (6 pin; IEEE 1394a) Female
Firewire 800 (9 pin; IEEE 1394b) Female
Environmental
Operating Temperature0°C to 70°C (32°F to 158°F)
Storage Temperature-54°C to 150°C (-65°F to 302°F)
Hardware
Bus TypeMini PCI Express
Card TypeLow Profile
Chipset IDLSI/Agere - FW643
InterfaceFireWire 800 (1394b)
Ports3
Package Contents

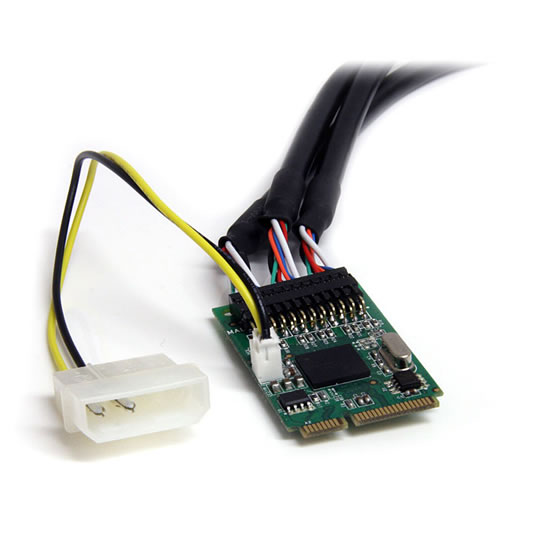

Included in Package4-pin LP4 Molex Adapter Cable
Full Profile Bracket
Instruction Manual
Internal Data Cable
Mini PCI Express FireWire card
Video Editing Software CD
Packaging Information
Shipping (Package) Weight173 g [6.1 oz]
Performance
Type and RateFireWire 400 IEEE-1394a - 400 Mbit/s
FireWire 800 IEEE-1394b - 800 Mbit/s
Physical Characteristics
Product Height4 mm [0.2 in]
Product Length50 mm [2 in]
Product Weight6.8 g [0.2 oz]
Product Width30 mm [1.2 in]
Software
OS CompatibilityWindows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000

Windows Server® 2012, 2008 R2, 2003

Mac OS® 10.10

Linux
Special Notes / Requirements
NoteEnsure computer case has an available expansion card slot
System and Cable RequirementsAvailable Mini PCI Express expansion slot (full length)
Specifications
Interface Mini PCI-E
Connectivity
  • 1 x Firewire (6pin)
  • 2 x Firewire (9pin)
