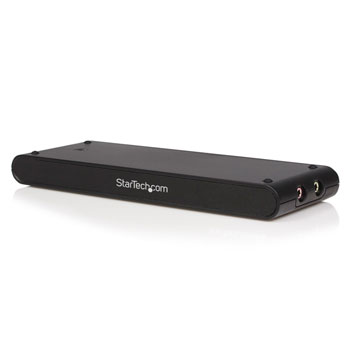

StarTech USBVGADOCK2 Universal Laptop USB Docking Station

USBVGADOCK2 - Universal Laptop USB Docking Station with VGA Audio and Ethernet

Scan Code: LN38849

Manufacturer Code: USBVGADOCK2

Customer Reviews and Q&A

Scan Finance More options

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.


Spend between £100 and £1000 and get the goods before you pay.

Product Overview

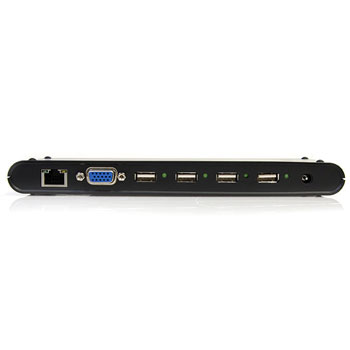

4-in-1 Laptop docking station with VGA, Ethernet, dual audio and 4 port USB 2.0 connections. The USBVGADOCK2 is a combination USB VGA adapter and 4-in-1 docking station that converts a single USB 2.0 port into multiple connection ports, including: a VGA port, 10/100 RJ45 network connection, dual (3.5mm phono) audio ports and four additional USB 2.0 ports.

Compatible with a broad range of operating systems, including Microsoft Windows 7, the USB VGA adapter/docking station supports 1600x1200 (32-bit) display resolutions for connected VGA monitors and saves the time and hassle of having to disconnect devices like speakers and USB peripherals (scanners, printers, webcams etc.) in order to re-connect them to another computer. Using this convenient docking station makes it as simple as creating the single USB 2.0 host connection in order to access the connected peripherals.
• External monitor connection via a VGA port
• Maximum VGA video resolution up to 1600x1200 at 32-bit color

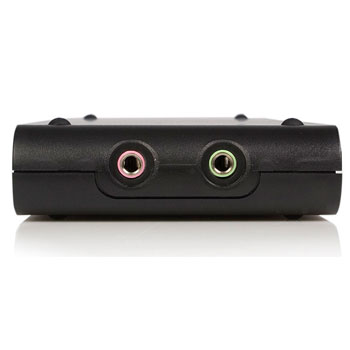

• Speaker and Microphone support via 3.5mm stereo mini-jacks
• 10/100Mbps RJ-45 Ethernet port
• Built-in 4-port USB 2.0 hub
• High Speed USB 2.0 compliant with transfer rates up to 480Mbps
• Small, portable form factor
• Includes a universal power adapter with power connectors for North America, United Kingdom, and Europe

Connector Type(s)3.5 mm Mini-Jack (3 Position) Female
RJ-45 Female
USB A (4 pin) Female

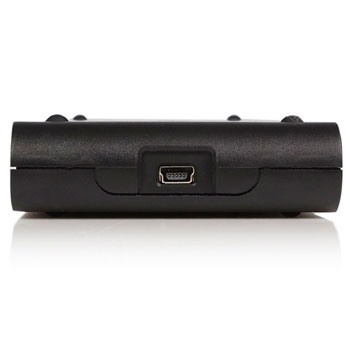

USB Mini-B (5 pin) Female
VGA (15 pin; High Density D-Sub) Female
Chipset IDSMSC - LAN9500

Trigger - UV-185CB-128
Package Contents
Included in PackageDriver CD
EU Power Adapter Plug
Instruction Manual
NA Power Adapter Plug
UK Power Adapter Plug
Universal Power Adapter
USB Cable
Packaging Information
Shipping (Package) Weight0.8 kg [1.7 lb]
Maximum Analog Resolutions1600x1200 @ 32 bits
Maximum Data Transfer RateLAN Port - 10/100Mbps

USB Hub - 480Mbps
Physical Characteristics
Enclosure TypePlastic
Product Height19.1 mm [0.8 in]
Product Length203 mm [8 in]
Product Weight214 g [7.6 oz]
Product Width69.8 mm [2.7 in]
Center Tip PolarityPositive
Input Voltage115 ~ 230 AC
Output Current3A
Output Voltage5 DC
Plug TypeM
Power SourceAC Adapter Included
OS CompatibilityWindows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)
Technical Specification

For further information regarding Scan's warranty procedure please click here

24 months
Return to base
DOA Period:
7 days
RTB Period:
24 months
