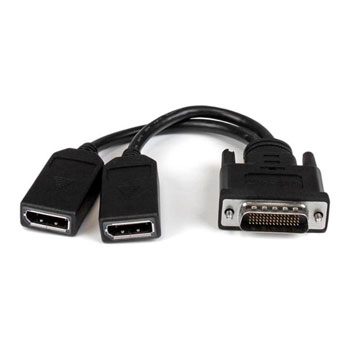

Connect two DisplayPort monitors to your DMS / LFH-equipped graphics card
The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors.
The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®, PNY, ATI and HP.
Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability – making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables.
The StarTech.com Advantage
• Cost-effective alternative to other DMS DisplayPort Cables such as the HP XP688AA.
• Guaranteed reliability.
Features • High-resolution support of up to 4k x 2k.
• Molded connectors with strain relief.
• Connect two DisplayPort monitors to a single DMS / LFH 59 or DMS / LFH 60 graphics card port.
• Cable Jacket Type: PVC - Polyvinyl Chloride
• Cable Shield Type: Aluminum-Mylar Foil with Braid
• Connector Plating: Nickel
• Connector A: 1 - DMS-59 (59 pin) Male
• Connector B: 2 - DisplayPort (20 pin) Latching Female
• Cable Length: 203.2 mm [8 in]
• Colour: Black
• Connector Style: Straight
• Product Height: 15 mm [0.6 in]
• Product Length: 203.2 mm [8 in]
• Product Weight: 78 g [2.8 oz]
• Product Width: 41 mm [1.6 in]
• Wire Gauge: 32 AWG
|Connector From||DMS-59 (59 pin Male)|
|Connector To||2 x DisplayPort (Female)|
|Connector Features||Nickel Plated Connector|
|Total Weight||79 g|
