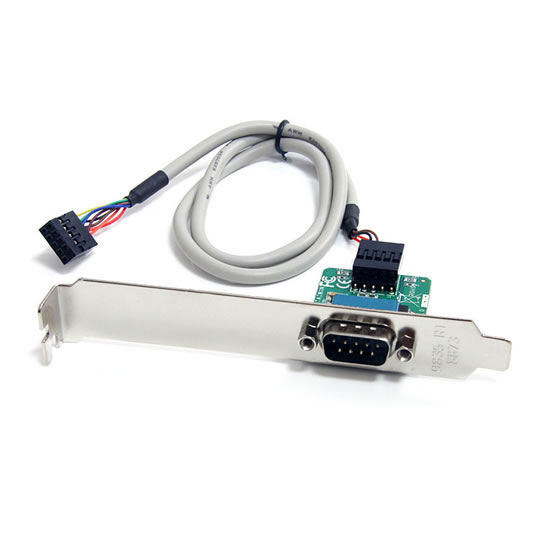

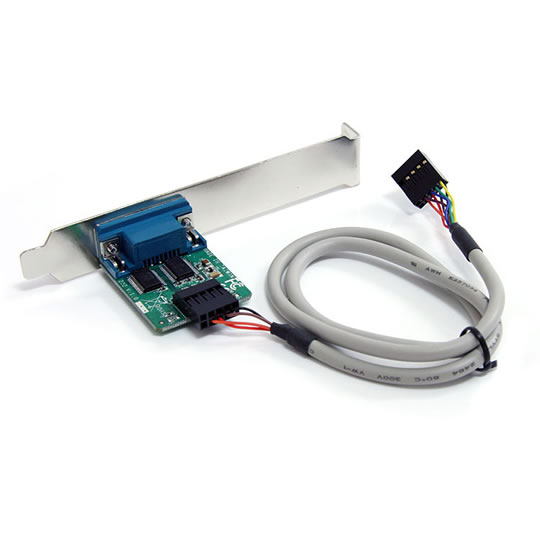

StarTech ICUSB232INT1 - Motherboard Header to Serial RS232 Adapter 24in/60cm Internal USB Motherboard Header to Serial RS232 (Male) Adapter Slot Plate (LP Bracket incl.)
Scan code: LN43947 Manufacturer code: ICUSB232INT1 Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD On 26th Apr 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.

Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.

This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Features • Direct connection from the motherboard header allows for a clean and completely contained setup, without taking up a PCI/PCI-Express slot in your system

• Extensive list of OS support and Microsoft WHQL certified drivers makes for maximum compatibility and simple installation

External PortsDB-9 (9 pin; D-Sub) Male
Internal PortsIDC (10 pin; Motherboard Header) Female
Humidity5~85% RH
Operating Temperature-10°C to 80°C (14°F to 176°F)
Storage Temperature-20°C to 100°C (-4°F to 212°F)
Bus TypeMotherboard Header
Card TypeStandard Profile (LP bracket incl.)
Chipset IDFTDI - FT232RL
Port StyleIntegrated on Card
Package Contents
Included in PackageDriver CD
Instruction Manual
Low profile bracket
USB to RS232 Serial Adapter
Packaging Information
Shipping (Package) Weight0.2 kg [0.4 lb]
Data Bits7, 8
FIFO256 Bytes
Max Baud Rate115.2 Kbps
ParityNone, Odd, Even, Space, Mark
Serial ProtocolRS-232
Stop Bits1, 2
Physical Characteristics
Cable Length0.6 m [2 ft]
Product Height12 mm [0.5 in]
Product Length45 mm [1.8 in]
Product Weight31 g [1.1 oz]
Product Width123 mm [4.8 in]
Microsoft WHQL CertifiedYes
OS CompatibilityWindows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+)

Windows Server® 2012, 2008 R2, 2003

Mac OS® 10.x (Tested up to 10.10)

Linux 2.4.x / 2.6.x
Length 0.61 m
Connector From
Connector To
Connector Features
Cable Features
Total Weight
