SPL - 'Phonitor xe' (Silver)
Headphone Amplifier

spl phonitor xe

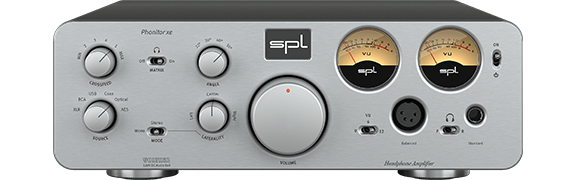

the best headphone amplifier of our timeSPL Phonitor XE headphone amplifier is a high-end headphone amplifier hand-made in Germany. It features Phonitor Matrix technology, Volume remote control, retro looking VU meters, premium DA converter and the superior VOLTAiR technology to make the Phonitor xe one of the best headphone amplifiers available today.

The Phonitor xe offers connections for a standard headphone with a stereo jack plug and for balanced-driven headphones using a 4-pol XLR jack. With enormous output power, every set of headphones can be driven effortlessly. Phonitor xe accepts almost all audio connections, balanced via XLR or unbalanced via RCA connectors. With the optional DAC, four additional digital sources can be added. From USB to the professional AES format, everything is accommodated for.

At A Glance • Ideal for headphones with a jack plug and balanced headphones with a 4-pin XLR plug
• Crossfeed control for level and frequency adjustment of both left and right audio channels
• Laterality regulation for detailed balancing with Phonitor Matrix for listening without fatigue
• Angle control for determining the interaural time difference
• 2 VU meters for left and right audio channels

Effective & User-Friendly Control

spl phonitor xe

Twice as niceIf you would rather avoid the headphone cable hanging from the front you may want switch to the connectors on the back of the Phonitor xe. The switch on the front selects between the front (F) and rear (R) outputs.

spl phonitor xe

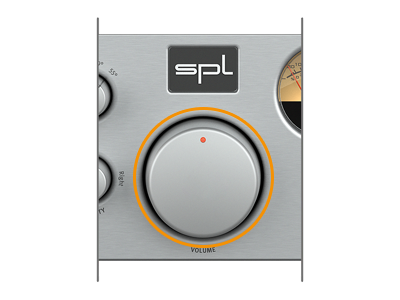

Volume RCThe 45mm Volume control can be remote controlled with any infrared remote control. It works together with the motorized Alps RK27 “Big Blue” potentiometer and features a red marker LED so the setting is visible even in darker rooms.

spl phonitor xe

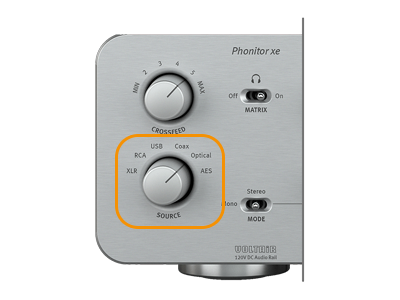

Source of joyWith an impressive option of up to six 6 stereo sources, these can be connected to the Phonitor xe via XLR, RCA, USB, Coax, Optical and AES/EBU.

Audio & Visual Supremacy

spl phonitor xe

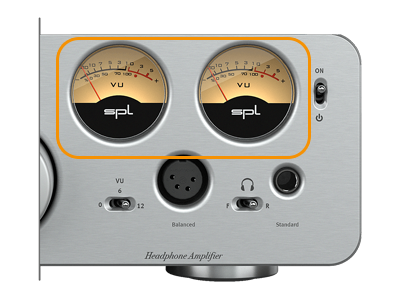

Classic aestheticTwo mechanical VU meters display the input levels for both left and right audio channels. With the VU switch you can optimize the display for different signal levels.

spl phonitor xe

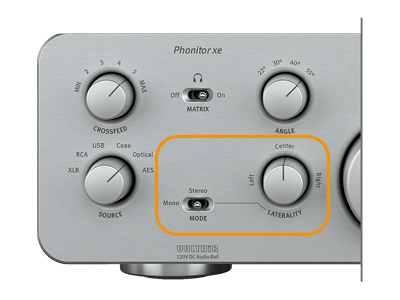

Finding the middlePhonitor xe has the uniquely and finely resolved laterality control, as a result the perfect center can be found easily. The mode switch allows you to choose between stereo or mono playback. To the right, the laterality control is switched on.

spl phonitor xe

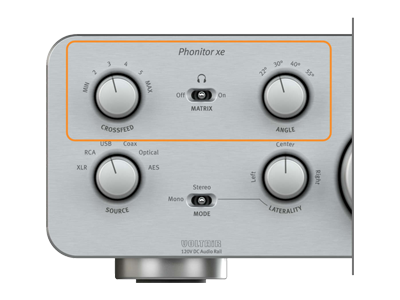

The RevolutionIn the headphone amplifier is the Phonitor Matrix, allowing you to listen to music through headphones as if you were listening through speakers. The tiring super stereo effect is now a thing of the past.

VOLTAiR Technology

VOLTAiR TechnologySPL pitted Phonitor xe against the best audio measurement system and found that Audio Precision could not compete with VOLTAiR technology, giving you the best possible performance.

The Phonitor Matrix Parameters

Crossfeed

CrossfeedLevel and frequency adjustment of the right (red) and left (green) audio channel at maximum crossfeed.

Angle

AngleSettings for the speaker placement angle to determine the interaural time difference.

Conventional

Conventional

Phonitor Matrix

Phonitor Matrix

Correct

Correct

The Tech Spec

Features Specification
Analogue inputs: XLR (balanced) and RCA Input gain (max): 32.5 dBu
Input impedance (RCA): 20 kΩ
Input impedance (XLR): 20 kΩ
Common mode rejection (XLR): 82 dB
Balanced Headphones Output: 4-pol XLR (balanced) Pin wiring: 1 = L (+), 2 = L (-), 3 = R (+), 4 = R (-)
Source impedance: 0.36 Ω
Damping factor (40 Ω): 180
Frequency range (-3 dB): 10 Hz – 300 kHz
Crosstalk (1 kHz): -90 dBu
THD + N (10 Hz – 22 kHz, 0 dBu): 0.00082 %
Noise (A-weighted): -98 dBu
Output power (1 kHz, 1% THD, 600 Ω): 2 x 8 W
Output power (1 kHz, 1% THD, 300 Ω): 2 x 3.5 W
Output power (1 kHz, 1% THD, 32 Ω): x 0.7 W
Dynamic range: 130.5 dB
Standard Headphones Output: 6.35 mm (1/4") TRS Jack Pin wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 Ω): 180
Frequency range (-3 dB): 10 Hz – 300 kHz
Crosstalk (1 kHz): -90 dB
THD + N (10 Hz – 22 kHz, 0 dBu): 0.00082 %
Noise (A-weighted): -103 dBu
Output power (1 kHz, 1% THD, 600 Ω): 2 x 2.7 W
Output power (1 kHz, 1% THD, 300 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 135.5 dB
Dynamic Range 105.5 dBA
Mains Power Supply Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 500 mA
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Stand-by power consumption: < 0,3 W
Dimensions (W x H x D) 278 x 100 x 300 mm
11 x 4 x 11,81 inch
Unit weight 4.9 kg
10.8 lbs
Shipping weight (incl. packaging) 5.6 kg
12.35 lbs
Specifications
Product Type Analogue Headphone Amplifier
Max Sample Rate N/A
Connectivity (Input)
  • 1 x 6.35mm Headphone Output
  • 1 x XLR
Connectivity (Output)
  • 1 x 3.5mm Headphone Output
  • 1 x USB Input
  • 1 x XLR
Bluetooth No
Rechargable Battery No
Dimensions 278 x 100 x 300 mm mm (WxHxD)
