SPL Phonitor Head phone Amp - (B-Stock)

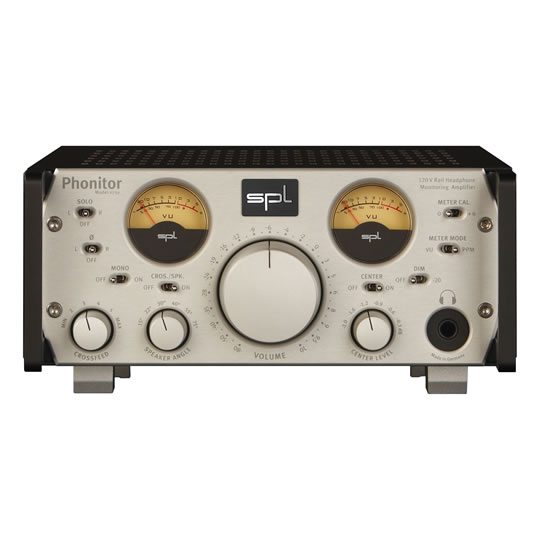

SPL Phonitor Silver (2730) - Headphone Monitoring Amplifier (B-Stock)

SPL
Scan code: LN45525 Manufacturer code: 2730 Request call
End Of Life
High End
Product Overview There are clear advantages to monitoring and mixing with headphones, but there are also a couple of disadvantages. The main one being that it is very difficult (if not impossible) to accurately judge room ambience.

Therefore, several years ago SPL began planning the development of a compact, professional headphone amplifier design based on its 120 volt technology. The inspiration came from project manager Hermann Gier‘s desire to eliminate major disadvantages in working with headphones. It therefore meant transferring the essential ambient parameters of loudspeaker monitoring to headphone monitoring.

After several years of development and painstaking optimization, SPL have now introduced the Phonitor, whose name is a derivative of “Headphone“ and “Monitor“. Features Audio
• Frequency Response: ‹10Hz to ›200kHz (-3dB)
• CMR:-80dBu (@1kHz, 0dBu input level and unity gain)
• Crosstalk: -67dB (@1kHz)
• THD: 0,005% (@ 1kHz, 0dBu input level and unity gain)
• Noise: -97dBu (A-weighted)
• Dynamic Range: 129,5dB (@ 600 Ohms Impedance)

Inputs
• (XLR connections, electronically balanced)
• Impedance: ca. 20 Ohms balanced/ca. 10 Ohms unbalanced
• Maximum Input Level: +24dBu

Outputs
• XLR Connections: Input thru, electronically balanced
• Headphone Output: 6,3 mm stereo TRS connection
• Pin Wiring Tip = left, Ring = right, Shaft = GND, Impedance: 9 Ohms

Power Amplifier
• Max. Output Performance:
• 1,7W (+32,2dBm) @ 1 kHz and 600 Ohms connection
• 360mW (+25,6dBm) @ 1 kHz and 30 Ohms connection

Display Elements
• VU Meter: Input levels from -20dB to +5dB
• Signal LED: Input signals from -22dBu
• Overload LED: Displays input overload from +21dBu

Power Supply
• Voltages: 230V AC, 50Hz/120V AC, 60Hz
• Power Consumption: max 23,7VA
• Fuses (slow blow): 200-240V AC: 500mA/100-120V AC: 1A

Dimensions & Weight
• H x W x D (mm): 106 x 216 x 393 (H w/o Feet 88mm/2U)
• Weight: 4,05kg
• 0dBu = 0,775V.
