SPL - 'Phonitor 2' (Silver)
Preamp & Monitor Controller

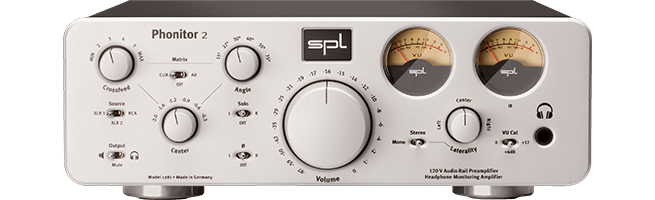

spl Phonitor 2

superior amplificationThe SPL Phonitor 2 a high-end amplifier for your headphones and studio monitors that ensures you're listening to the most accurate representation of your recordings. This amp delivers transparent performance at every volume level. With 120-volt operation you get plenty of headroom and impressive dynamic range with an ultra-low noise floor.

The Phonitor Matrix mode uses spatial processing for a loudspeaker-like listening experience with headphones, and switchable signal levels enabling you to calibrate for almost any set of headphones or monitor speakers. Featuring three input sources, versatile metering, and useful signal controls, the SPL Phonitor 2 is a powerful monitor amp for any system.

At A Glance • Phonitor Matrix provides a loudspeaker-like monitoring experience with headphones
• 120V operation delivers wide dynamic range and plenty of headroom
• Easy integration into your system with flexible I/O and signal levels
• Control volume using any infrared remote control

User-Friendly Control

VOLUME RC

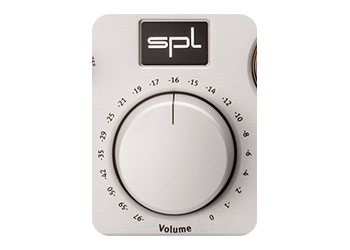

VOLUME RCThe 45mm Volume control can be remote controlled with any infrared remote control. It works together with the motorized Alps RK27 “Big Blue” potentiometer and features a red marker LED so the setting is visible even in darker rooms.

Monitor Controller

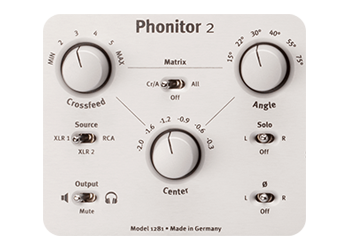

Monitor ControllerPhonitor Matrix includes crossfeed, speaker angle and center level functions. The output switchable to headphones or speakers and comes with phase reversal for L and R, Sources: 2x XLR, 1x RCA, Solo L/R and Mute features.

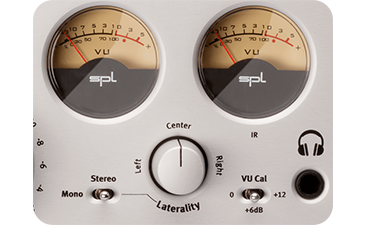

Mechanical VU Meter

Mechanical VU Meter

Laterality ControlVisualize the input levels, which can be switched in sensitivity with the VU Cal switch. By its very nature, hearing can be directed more to the left or more to the right. This is particularly evident when listening with headphones. That’s why Phonitor 2 has the finely resolved Laterality control. With it the center can be set perfectly.

The Revolution

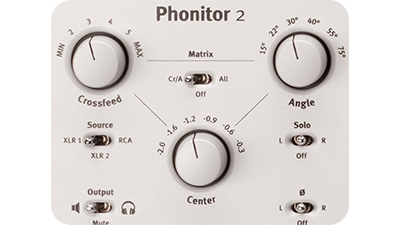

Phonitor Matrix

Corrected Stereo EffectIn the headphone amplifier is the Phonitor Matrix which allows you to listen to music through headphones as if you were listening through speakers. To achieve this, the super stereo effect must be corrected.

It makes the placement of voices and instruments in the stereo image seem more widely distributed and effects like reverb and delays are overdone. The tiring super stereo effect is no longer an issue.

The Sources

4K Recording

Flexible I/OPhonitor 2 can be connected using two balanced and one unbalanced stereo sources. If a CD player or HiFi system is connected to the RCA jacks, the consumer level can be raised from -10 dBV to 0 dBu using a dip switch on the bottom of the unit, so the sources are comparable in level. The volume control can be switched off by means of a dip-switch on the bottom of the unit. To The Power Amp or to the active loudspeakers it goes symmetrically using XLR sockets.

The Phonitor Matrix Parameters

Crossfeed

CrossfeedLevel and frequency adjustment of the right (red) and left (green) audio channel at maximum crossfeed.

Angle

AngleSettings for the speaker placement angle to determine the interaural time difference.

Conventional

Conventional

Phonitor Matrix

Phonitor Matrix

Correct

Correct

The Tech Spec

Features Specification
Analogue inputs & outputs; XLR (balanced), RCA Maximum input & output gain: 32.5 dBu
Input impedance (RCA): 10 kΩ
Input impedance (XLR): 20 kΩ
Output impedance: 75 Ω
Common mode rejection (XLR): -82 dB
Frequency range (-3 dB): 4 Hz – 300 kHz
THD +N (10 Hz – 22 kHz, 0 dBu): 0.00085 %
Noise (A-weighted): -103.8 dB
Crosstalk (1 kHz): -106 dB
Dynamic range: 136.3 dB
Standard Headphones Output, 6.35 mm (1/4") TRS Jack Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0,18 Ω
Damping factor (40 ohms): 180
Frequency range (-3dB): 10 Hz – 300 kHz
Crosstalk (1 kHz): -90 dB
THD +N (10 Hz – 22 kHz, 0 dBu): 0.00091 %
Noise (A-weighted): -103 dB
Dynamic range: 135.5 dB
Ausgangsleistung (1 kHz, 1% THD, 600 Ω): 2 x 2,7 W
Ausgangsleistung (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Ausgangsleistung (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Internal Linear Power Supply with Shielded Toroidal Transformer Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 630 mA
Fuse for 115 V: T 1.25 A
Power consumption: max. 40 VA
Dimensions (W x H x D) 278 x 100 x 300 mm
Weight Unit weight: 4.3 kg/9.5 lbs
Shipping weight (incl. packaging): 5.4 kg/11.9 lbs
Specifications
Product Type Combo DAC / Headphone Amp
Max Sample Rate
Connectivity (Input) 1 x XLR
Connectivity (Output) 1 x 6.35mm Headphone Output
Bluetooth No
Rechargable Battery No
Dimensions 278 x 100 x 300 mm (WxHxD)
