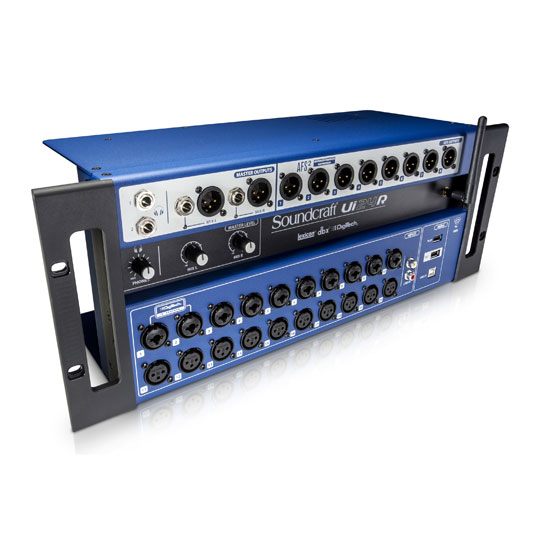

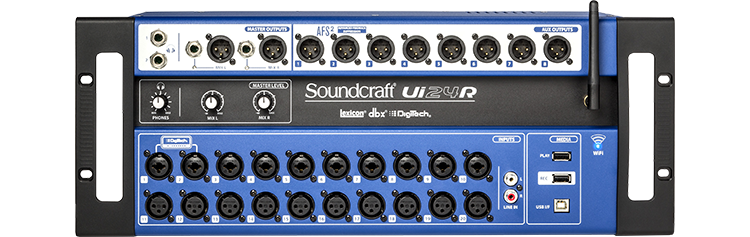

Soundcraft - Ui24R
24-Channel Digital Mixer/USB Multi-Track Recorder
Complete With Wireless ControlThe Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system with flexible I/O, incredible sound quality, simple wireless control and roadworthy reliability all in a sleek design. The system can work as a stagebox and can be controlled by up to 10 devices using Ethernet or the built-in dual-band Wi-Fi, so it's possible to control mixing and multi-track recording wirelessly from anywhere in the venue. Using renowned HARMAN signal processing, Studer-designed preamps and much more, from the studio to the stage, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver outstanding sound.
Ui24R joins together industry-leading HARMAN technologies to deliver impressive power and reliable stability. Renowned Studer preamps provide rich sound for live performance and multi-track recording, whilst iconic Lexicon reverbs, choruses, delays, and dbx compression result in rich sounding vocals, acoustic guitar and more. dbx AFS2 automatic feedback suppression is included on all monitor outputs, providing an outstanding live experience. DigiTech guitar amp modeling also brings a vast array of effects to any performance, especially when low stage volume is desired.
Amazing Features
• Renowned Soundcraft quality and performance
• Built-in dual-band Wi-Fi eliminates the need for a router
• Record and mix with the warmth of 20 professional-quality Studer-designed preamps
• dbx compression and iconic Lexicon reverb and delay processing
• 2 channels of DigiTech guitar amp modeling

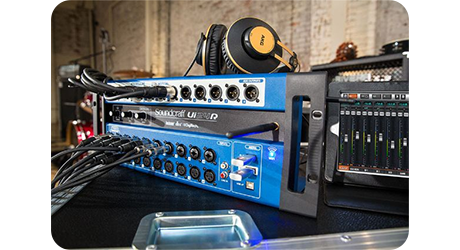

More Ways To Connect
A Streamlined SolutionUi24R provides the perfect, streamlined solution when you need a mixer with extensive connections and a compact footprint.
The Ui24R lets you mix from multiple sources including 10 combo 1/4"-TRS/XLR, 10 XLR, 2 line level inputs, and 2 channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.

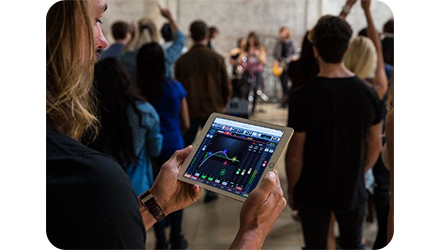

More Ways To Control
Onboard dual-band WiFiControl Ui24R from any device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps.
Onboard dual-band WiFi enables you and up to 9 members of the band can always stay in control without relying on an independent router or the venue’s WiFi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.

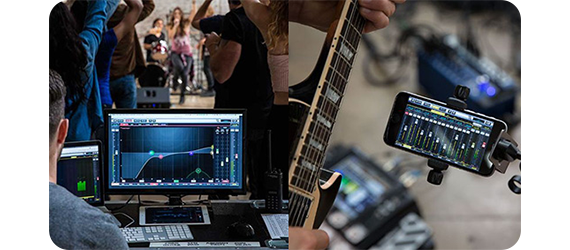

More Freedom
power and versatilityTraditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surfaceless mixer joins the power and versatility of a large-format console with a compact design and complete Wi-Fi control.
Using the Ui24R, you can finally have the all features you need, along with the freedom to control your mixer from anywhere in the venue.

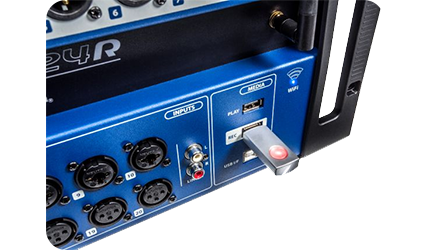

Multi-track Recording & Playback
Ableton Live 10 Lite IncludedUi24R isn't just a complete mixing system, it’s also a great recording tool. Dual-path, multi-track recording of all 22 inputs and your stereo mix can be stored directly to a USB storage drive and a connected computer. The multi-channel USB audio interface also makes integrating the Ui24R into your recording studio for production work with your favorite DAW nice and simple.
Ableton Live 10 Lite software download is included with all Ui Series mixers. Feed your creativity using this fast, flexible and sequencing workstation. From built-in instruments, sounds and effects to recording and mixing features, Live 10 Lite offers everything you need to create, produce and perform.
New Ui24R v3.0 Firmware Available Now
Further EnhancedUsing the free v3.0 firmware update the Soundcraft Ui24R has been enhanced with Cascading and a number of other significant new features. Cascading allows you to connect two Ui24R systems via Ethernet to expand your mixing capability with a new 32x32 bi-directional audio bus. Add a second Ui24R to double your mic inputs or connect two Ui24R mixers and control two completely independent mixes, such as FOH and monitors, or FOH and streaming mixes.
Features in the free 3.0 fimware update
• Cascading: Double your inputs or double your mixes
• Cue Recall: save mix settings as Cues and then quickly and seamlessly recall them
• UDP Control Recall: for triggering lighting control snapshots
• Lexicon Reverb PreDelay: easily set the time before first surface reflections and simulate desired acoustic environments
• More than 25 new supported touch screens

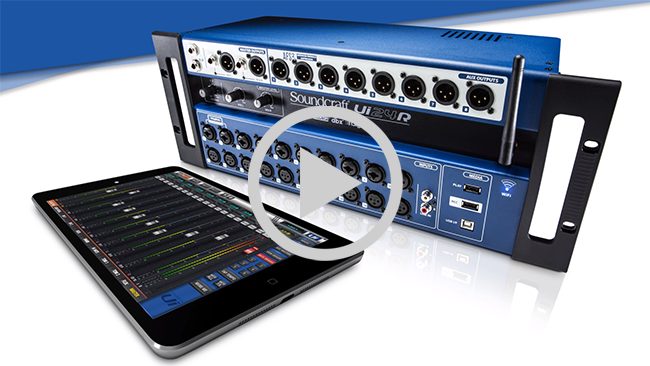

Introducing The New Soundcraft Ui24R
The Tech Spec
| Features | Specifications | Type | Digital Remote-controlled Mixer |
|---|---|
| Channels | 24 |
| Inputs - Mic Preamps | 10 x XLR-1/4" combo, 10 x XLR |
| Phantom Power | Yes |
| Inputs - Line | 1 x Dual RCA Stereo |
| Outputs - Main | 2 x XLR, 2 x 1/4" |
| Busses/Groups | 8 x XLR (aux outs) |
| Data I/O | 2 x Ethernet, 1 x HDMI |
| USB | 4 x Type A, 1 x Type B |
| Computer Connectivity | USB (24 x 24), Ethernet, Wi-Fi |
| Headphones | 2 x 1/4" |
| EQ Bands | 4-band parametric EQ, 31-band graphic EQ |
| Effects | Lexicon Reverb, Lexicon Delay, DigitTech guitar amp modeling |
| Signal Processing | dbx compression, dbx AFS2 auto feedback suppression, noise gate, de-esser |
| Features | Built-in dual-band Wi-Fi, real time frequency analyzer, 24 track recording to USB |
| Software | Remote control with iOS, Android, Windows, OS X and Linux |
| Rackmountable | Yes (4U) |
| Dimensions | Depth: 6.8" Width: 19" |
| Weight | 22 lbs. |
