16-Channel Digital Stagebox with MADI Card
Soundcraft - 'Mini Stagebox 16R'

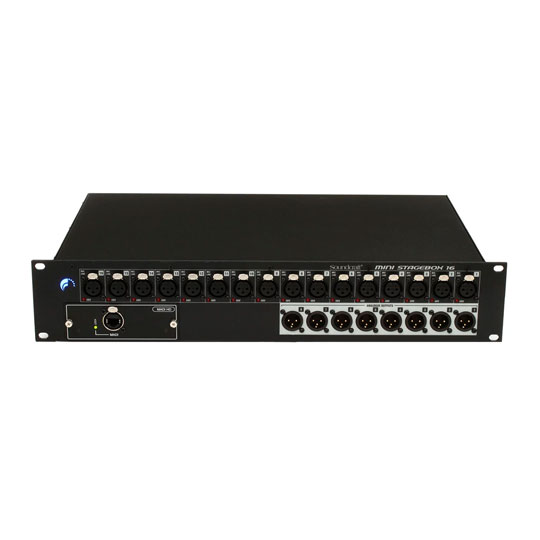

16 x 8 Digital Stagebox with MADI Card
Soundcraft’s new ‘Mini Stagebox 16R’ is a simple solution to any stage connection issues, and offers a lower-cost option for many setups and rigs where modularity and configurability of the larger systems simply isn’t required.

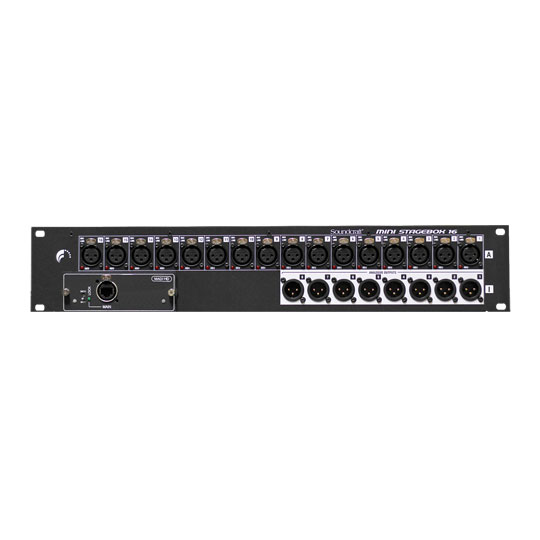

Mini Stagebox 16R (2U) boasts 16 analogue inputs and 8 analogue line outs to complete a 16 x 8 matrix. The 16R connects to any of Soundcraft’s ‘Si Expression’, ‘Si Compact’, ‘Si Performer’, ‘Si Series’ and ‘Vi Series’ consoles, thanks to the MADI card fitted inside the option card slot.

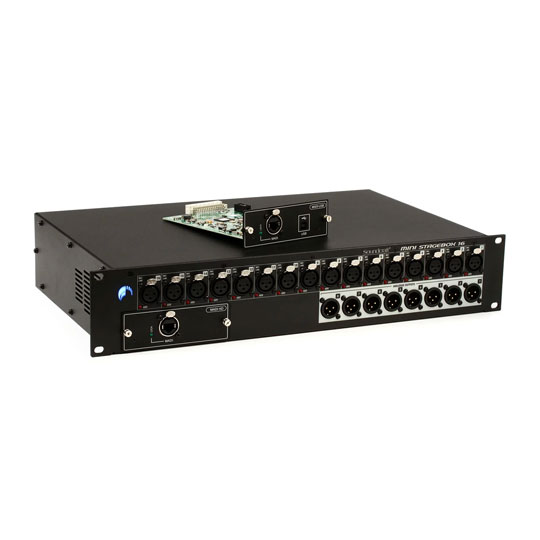

Soundcraft’s Mini Stagebox 16R features a built-in PSU, meaning it is completely self-contained and is free to sit comfortably side-stage. This new range is part of the ‘ViSi Connect’ series of interface options for all Soundcraft mixing consoles which comprises of the Compact and Vi Stageboxes and a broad range of option cards such as MADI, AES and CobraNet. The 16R is supplied with the stagebox card installed, alongside the corresponding card for an Si series console (Vi console MADI cards sold separately).
16xAnalogue Inputs
8xAnalogue Line Out
+24 dBuMaximum Input Level
at a glance
• 16 Expression mic preamps
• 8 line outs
• Includes MADI-USB combo card
• Compatible with Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles
The Tech Spec
| Features | Specification | Frequency Response | Mic / Line Input to any Output: +0/-1 dB, 20 Hz to 20 kHz |
|---|---|
| THD | Mic Sensitivity -30 dBu: < 0.01% @ 1 kHz |
| Residual Noise | -85 dBu |
| Mic Input Noise (E.I.N.) | -125 dBu (150 Ω source) |
| CMRR | Mix noise, masters at unity: < -86 dBu 1 input to mix at unity gain: -84 dBu CMRR mic @1 kHz (max gain): -86 dBu |
| Input Gain | -5 to 58 dB integrated pad design 1 dB steps |
| Maximum Input Level | +24 dBu |
| Maximum Output Level | +22 dBu |
| Sample Rate | 48 kHz |
| Converter | 24-bit |
| Latency | 1.5 ms |
| Clock Accuracy | +/- 25 ppm |
| Power Consumption | 33 W |
| Operating Range | 90 to 264 VAC, 47 to 63 Hz |
| Operating Temperature Range | 14 to 122°F (-10 to +50°C) |
| Relative Humidity | 0 to 90% |
| Storage Temperature Range | 14 to 122°F (-10 to +50°C) |
| Dimensions (W x H x D) | 3.5 x 17.5 x 11.1" (88 x 444.5 x 281.9 mm) |
