Scan code: LN106024 Manufacturer code: SCR0647

Soundcraft Mini Stagebox 16i

Soundcraft Mini Stagebox 16i 16 x 8 Digital Stagebox with Remote Control for Soundcraft Si Series Consoles

Thumbnail 1 : Soundcraft Mini Stagebox 16i Thumbnail 2 : Soundcraft Mini Stagebox 16i Thumbnail 3 : Soundcraft Mini Stagebox 16i Thumbnail 4 : Soundcraft Mini Stagebox 16i
Scan code: LN106024 Manufacturer code: SCR0647
£729.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £34.99 / month (APR 14.9%)
Monthly Payment: £126.50
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £729.00
Total inc. interest: £758.99
Monthly Payment: £65.45
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £729.00
Total inc. interest: £785.32
Monthly Payment: £45.13
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £729.00
Total inc. interest: £812.25
Monthly Payment: £34.99
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £729.00
Total inc. interest: £839.78
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £18.21 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

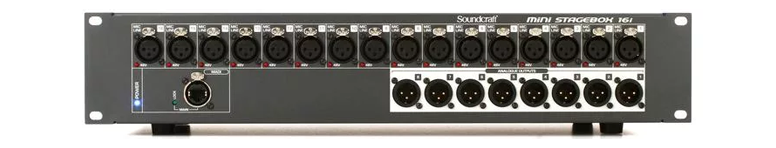

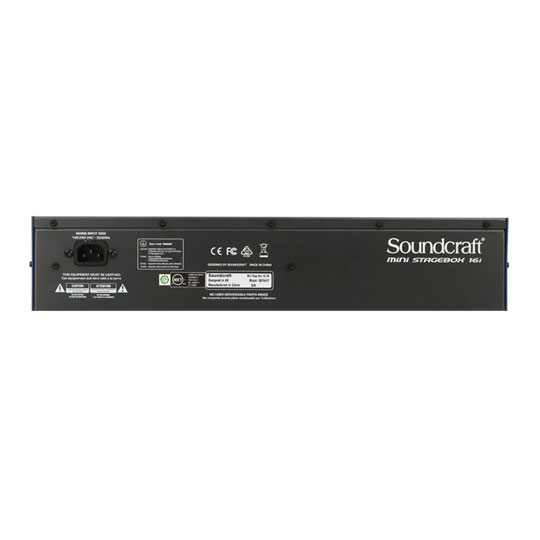

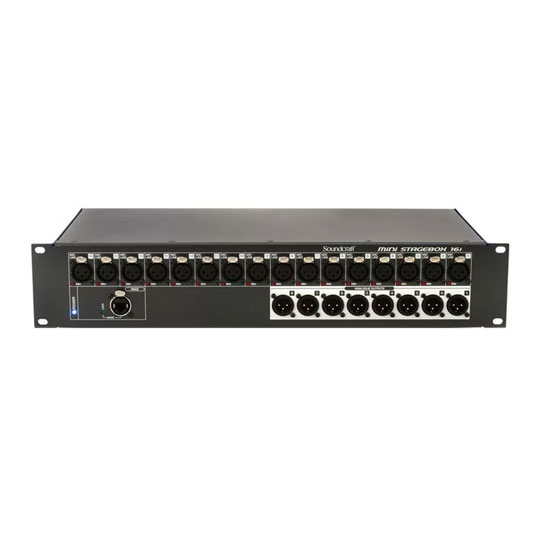

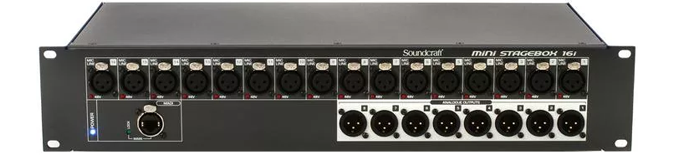

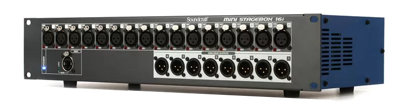

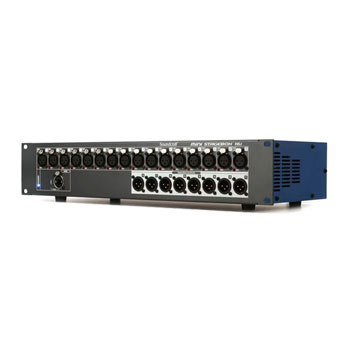

Soundcraft - 'Mini Stagebox 16i'

Soundcraft Stagebox16i

16 x 8 Digital Stagebox with Remote Control
for Soundcraft Si Series Consoles
Soundcraft’s ‘Mini Stagebox 16i’ brings together top-drawer components, alongside a magnificently streamlined design, to make it simple and easy to multiple channels of remote-controlled I/O to your ‘Si-series’ mixing console. The Mini Stagebox 16i sports Studer-designed mic preamps to deliver unparalleled sound quality, whilst its compact form factor makes it highly portable.

Perfect for live sound engineers, bands, venue owners and corporate installations. The Mini Stagebox 16i from Soundcraft allows you to exchange heavy, cumbersome analogue snakes for just a single RJ45 style Ethernet cable.

1x RJ45Data I/O

16x XLRMic Preamps

8x XLROutputs

at a glance • Integrates with your Si Series console for wireless control
• 16 remote-controlled mic preamps
• 8 XLR line outs
• Studer-designed preamps
• Compatible with Soundcraft Si Series consoles
• Simple to use RJ45/Cat 5 connectivity

Studer-Designed Mic Preamps

back

high-quality componentsSoundcraft Mini Stageboxes offer remarkable value while maintaining the industry-leading performance that Soundcraft live solutions are known for. Studer-designed mic preamps are famous for delivering warm, rich sound for live performances and recording events.

16 Simultaneous Channels of External Analogue Input

back

Extensive I/OSoundcraft Mini Stagebox 16i provides multi-channel MADI I/O via standard Cat5 cabling, eliminating the need to run expensive and heavy analogue snakes from the stage to front-of-house mixing positions. Dedicated XLR mic pre inputs allows 16 simultaneous channels of external analogue input.

Mini Stagebox 16i offers eight analogue outputs for easy connection to house and stage monitors and broadcast or streaming feeds.

Streamlined Design

4K Recording

No local hardware configuration requiredA streamlined design provides essential connections and features, including MADI over RJ45 connectors built right onto the chassis. No local hardware configuration or installing option cards are required—simply plug in, power on, select inputs and control remotely using a Soundcraft Si console.

Full Integration with Si Series MixersMini Stagebox 16i pairs with Soundcraft Si Series mixers to provide remote controlled expanded I/O and intuitive operation during complex mixing scenarios. Si Impact allows owners to add a stagebox for additional inputs, while simultaneously using the existing console inputs. By adding a second MADI option card to the console, users can add a second stagebox and select which inputs to assign to the 80 mixing channels.

The Tech Spec

Features Specification
Type Digital Stage Box
Compatibility Soundcraft Si consoles
Channels 16 x 8
Inputs - Mic Preamps 16 x XLR (mic/line)
Phantom Power Yes
Outputs - Main 8 x XLR (line)
Data I/O 1 x RJ45 (MADI)
Features Remote control preamps via Si consoles
Rackmountable Yes
Power Source Standard IEC AC cable
Height 3.5"
Depth 11.1"
Width 19"
Weight 11 lbs
Specifications
Total Channels
Max Mic Inputs
Computer Interface
Mixer Type
Computer Interface Channels
Total Aux Channels
Subgroups
Max Line Inputs
Insert Points No
Direct Channel Outputs
Internal FX No
Flying Faders No
Additional Information
Scan Code LN106024
Model Number SCR0647
GTIN 668705002592
