Sonnet Fusion Dual U.2 SSD PCIe Adapter Card

Sonnet Fusion Dual U.2 SSD PCIE Adapter, PCIe 3.0 x4, RAID 0/1, Up to 32TB, Mac Pro Compatible

Scan code: LN115823 Manufacturer code: SON-FUS-U2-2X4-E3
£258.49
Order now and get it tomorrow, Tue 22nd Jun
From £12.41 / month (APR 14.9%)
Monthly Payment: £23.21
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £278.47
Monthly Payment: £12.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £297.78
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Sonnet - 'Fusion Dual U.2 SSD PCIE Card'

Sonnet Fusion Dual U.2 SSD PCIE Card

Please Note: Images for Illustration Purposes only. SSDs sold separately

The Most Economical Way to Add Ultra-fast, Extra Large Capacity SSD StorageSonnet’s Fusion™ Dual U.2 SSD PCIe Card allows you to upgrade your system in an instant, with space for two enterprise class U.2 SSDs up to 32TB, or higher when they become available, in a single full-length PCIe x16 card slot with no additional power or data cables, adapters or mounting trays cluttering your system. If you are looking for super high-speed throughput and maximum IOPS performance storage then the Fusion Dual U.2 SSD PCIe Card is for you.

Choose Storage to Suit You

Sonnet Fusion Dual U.2 SSD PCIE Card

Choose your Own U.2 SSDsUse the Sonnet card for instant-access media storage or as a high-performance scratch disk in your Mac Pro® tower; Windows® or Linux® PC desktop or server; or Thunderbolt™ to PCIe card expansion system with an available x16 PCIe slot. Legacy Mac® users can install macOS® on one SSD to create an incredibly fast boot drive and use the other installed SSD for and still obtain blazing-fast performance.

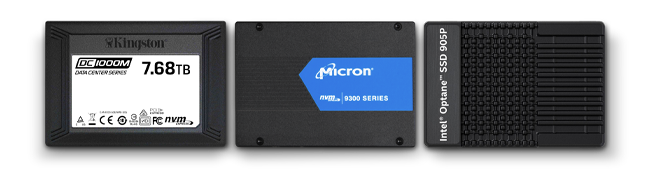

Enterprise Class Performance & Capacities

Sonnet Fusion Dual U.2 SSD PCIE Card

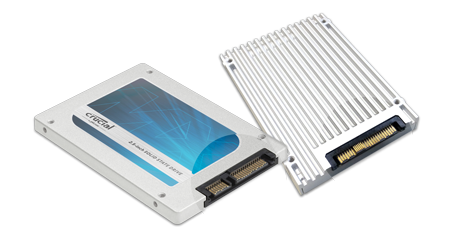

Familiar Size and Shape,
Different Connector and Interface
U.2 SSDs look like 2.5-inch SATA drives — they even share the same general dimensions and mounting screw hole placement, but their connectors are different, and so is their performance. Unlike SATA drives, U.2 NVMe SSDs interface with your computer’s PCIe bus, enabling them to perform seven times as fast.

Striking PerformanceHow fast? Current PCIe 3.0 U.2 SSDs deliver sustained performance of up to 3500 MB/s read and 3500 MB/s write, or about 7x the performance of the fastest SATA SSDs.

High CapaciiesMany U.2 SSDs are now available in capacities up to 16TB - perfect for sotring large video projects - with higher capacity models on the horizon. Sonnet's Fusion Dual U.2 SSD PCIE Card will support bigger SSDs as they become available.

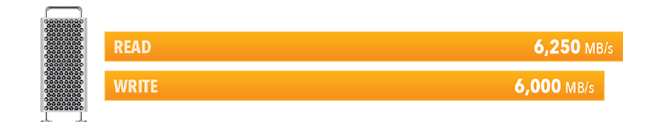

Up to 6,250MB/s in RAID 0*

Sonnet Fusion Dual U.2 SSD PCIE Card

Fantastic RAID 0 PerformanceInstall the Fusion Dual U.2 SSD PCIe Card with your SSDs into your system and configure the SSDs as a RAID 0 set for even greater storage performance.

*Performance based on ATTO Disk Benchmark (available on the Apple® App Store) test results with two Micron 9300 7.68TB NMVe drives with 64MB transfer size and macOS 10.15.6 using SoftRAID software.

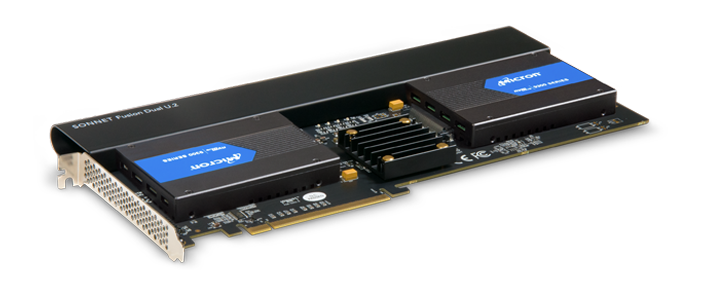

Full Lenght, Full Height PCIe 3.0 Card

Full Performance Design The Fusion Dual U.2 SSD PCIe Card is a full-height, full-length PCIe 3.0 card with an x16 (x8 electrical) interface, designed to support full performance from two U.2 NVMe PCIe SSDs. The Sonnet card features:

Sonnet Fusion Dual U.2 SSD PCIE Card

PCIe BridgeDevotes four lanes of PCIe 3.0 bandwidth to each SSD installed

Sonnet Fusion Dual U.2 SSD PCIE Card

Self-ContainedDoesn’t require a specific motherboard to operate or specific SSDs to support RAID features — No PCIe bifurcation is required

Sonnet Fusion Dual U.2 SSD PCIE Card

Universal CompatibilityMac®, Windows, and Linux compatible

Sonnet Fusion Dual U.2 SSD PCIE Card

Mounting Support for Two U.2 SSDsConnect and mount directly to the card, no power or data cables, adapters, or mounting trays required

Video Overview

The Tech Spec

Features Specification
Mac Compatibility Mac Pro 5,1 (Mid 2010 & Mid 2012) with available full-length x16 PCIe slot
Mac Pro 7,1 (2019)
macOS 10.13.6+
macOS Catalina compatible
Windows Compatibility Computer with available full-length, full-height x16 PCIe slot (PCIe bifurcation not required)
Windows 10 (64-bit Edition Version 1809 or greater)
Linux Compatibility Computer with available full-length, full-height x16 PCIe slot (PCIe bifurcation not required)
Linux Kernel 5.0+
Thunderbolt Compatibility Compatible with any Thunerbolt 3 to PCIe x16 Card expansion system on Windows, Mac and Linux
Maximum input sound level 144 dB SPL (1 kHz at 1% THD)
Form Factor Full-Length, Full Height
Bus Interface PCI Express 3.0 x4
Internal Connectors Two U.2 (SFF-8639)
Supported SSDs U.2 (2.5-inch) NVMe PCIe SSDs
Boot Support macOS, Only from a Single SSD (Not RAIDed) on Mac Pro 5.1 or Mac Pro 7.1, or with any Thunderbolt Mac
RAID Support RAID 0 or 1 (Stripe or Mirror) on macOS, Windows and Linux
NVMe Support Yes
S.M.A.R.T Status Data Reporting Support Yes
