Raven MTX MKII - Game Changing Dual-Screen Multi-Touch Control Surface

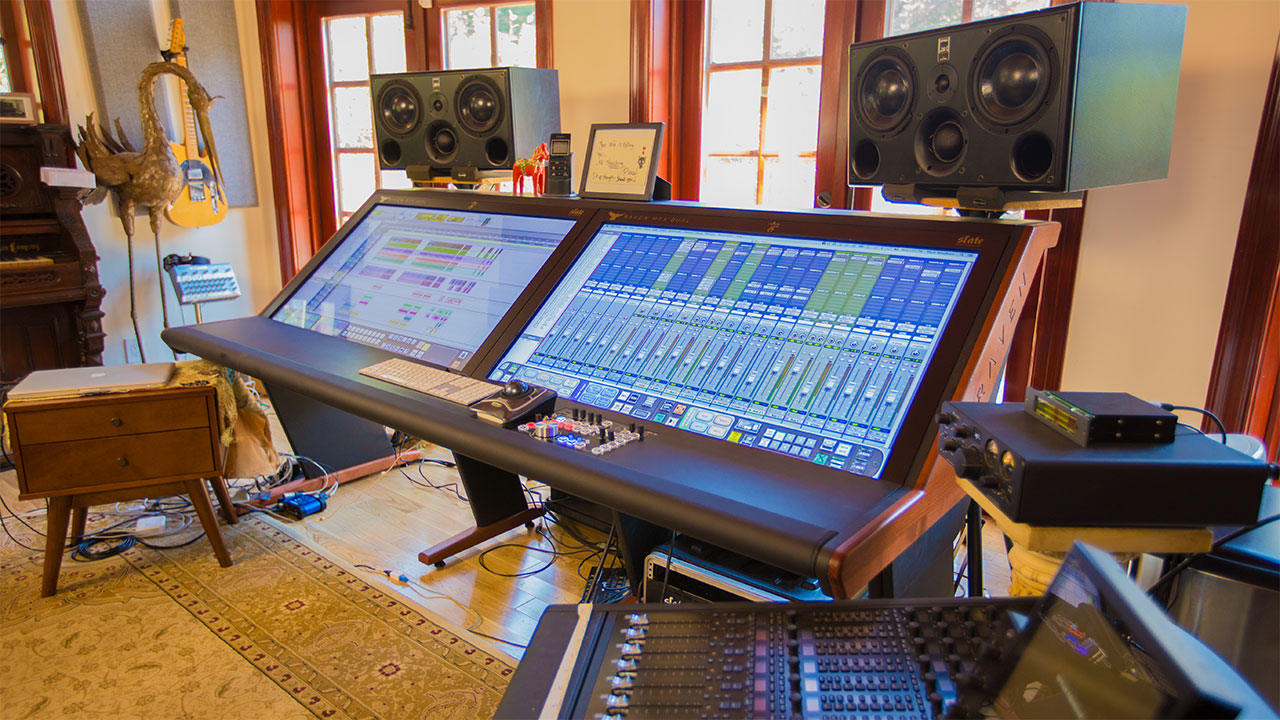

The RAVEN DUAL MTX Multi-Touch Production Consoles offer a state of the art workflow center for the Elite Modern Studio. The RAVEN DUAL MTX features two 46” multi-touch panels along with the Slate Control fully analog monitoring system. The RAVEN DUAL MTX can be configured according to the client’s needs with specific rack spaces and locations, custom colors, and much more.
Having two world class multi-touch panels allows engineers, producers and artists to have an extremely versatile workflow with a variety of options. Some configurations can work as follows:
• Two 46" screens dedicated to the studio DAW Edit & Mix windows or anything on your computer.
• Post Audio Mixing using multiple synced machines with multiple operators is also an option by running the two displays on independent machines.
• One Screen dedicated to the main studio computer and one for guest producers and musicians.
RAVEN 3.0 now adds customised multi-touch control of Ableton Live, Cubase/Nuendo, Digital Performer, Logic Pro X, Pro Tools 10-12, and Studio One V3 on Mac as well as our first Windows compatibility for Pro Tools 10-12. The Modern Production ConsoleThe RAVEN was built from the ground up to modernise the idea of the classic recording console. Recording, mixing or mastering with the RAVEN MTX Production Console is effortless and intuitive. A large-format multi-touch mixer gives you complete access to faders, pans, mutes, solos, sends, automation, and even plugin inserts. Of course on a 46" screen, plugins function as if you were tweaking 19" outboard gear - you can easily tweak the controls with your fingers. Having the DAW at your fingertips makes it easy to directly interact with the music.
FADERS 3.0 are our newest multi-touch faders that allow the most precise control of your DAW faders. By integrating multi-touch 100mm virtual faders directly into each DAW, the engineer has seamless control over mix levels and automation. The new 3.0 algorithm gives the faders a virtual "feel" that allows an intuitive feeling action that is comfortable and even fun to use. And for the most critical automation, FINE FADER mode can quadruple the resolution of the faders so you can get even the most minute moves down in the first pass with ease and perfection. The RAVEN Toolbar In Toolbar mode, the RAVEN Toolbar is anchored directly in front of your hands at the base of the touch display. Your DAW controls are where you want them: Transport, Edit/Mix window selector - convenient tools for tracking too, like Record Looping, Click, Create Group, and Undo. Use intuitive multi-touch gestures on the RAVEN NAVPAD to perform Scrub/Shuttle, Waveform Zoom, Track Zoom, and Track Banking, and RAVEN Batch Commands. Best of all, because the RAVEN Toolbar is virtual, it's user-customisable - put the controls you want where you want them.
We’re proud to announce the next evolution of the RAVEN Control software called GESTURES. As its name implies, GESTURES allows classic multi touch gestures to control important elements of the DAW such as opening and closing plugins, muting and unmuting tracks, zooming in and out, and more!
In Toolbar mode, the RAVEN Toolbar is anchored directly in front of your hands at the base of the touch display. Your DAW controls are where you want them: Transport, Edit/Mix window selector – convenient tools for tracking too, like Record Looping, Click, Create Group, and Undo. Use intuitive multi-touch gestures on the RAVEN NAVPAD to perform Scrub/Shuttle, Waveform Zoom, Track Zoom, and Track Banking, and RAVEN Batch Commands. Best of all, because the RAVEN Toolbar is virtual, it’s user-customizable – put the controls you want where you want them.
Slate Remote revolutionizes your workflow in ways you must experience to believe. Slate Remote is a free app for iOS users, available at the app store to anyone with a RAVEN MTX. Slate Remote automatically synchronizes with your RAVEN session via wifi network and gives you access to your custom batch Commands, allowing it to remotely perform time-saving tasks for you from the palm of your hand. The Slate Control The Slate Control is a 100% Analog Monitoring System designed by legendary pro audio designer Paul Wolff. The Slate Control has been designed to provide uncompromised sonic clarity while delivering all ofthe necessary features studios need from a "center section" of a classic console.
The RAVEN Batch Command System
The RAVEN Batch Command System is a true revolution in control. The BCS is a series of preset and customizable buttons that can execute up to 1,000 key commands and mouse clicks automatically. With just one button, BCS allows you to create instant headphone sends, name tracks, put entire drum tracks on the grid, export stems, and so much more! The BCS comes pre-programmed with 100 preset batch commands in every DAW we support, with layouts for Music, Mastering, Post Production and more. Record your own mouse click automation or program user commands with our QUICKLIST, which features hundreds of predefined DAW operations. Just touch and hold on a Batch Command button to edit, and you'll have access to almost limitless possibilities.
• State-of-the-art 46? multi-touch display HD resolution of 1920×1080
• Completely LED backlit to consume less power and emits less EMI
• Twelve-touch display allows various multitouch features like fader control and more instant integration with most major DAWs
• Gives you hands-on control of all your DAWs parameters as well as acts as your computer’s main touch-capable display
• Flexible and user-customizable, multifunction TOOLBAR
• Easy compatibility using a standard HDMI or DVI cable and a USB 2.0 connection
• All Major DAWs For RAVEN are currently supported with MAC OS X and Pro Tools 10-12 are supported for Windows. Additional DAW Windows compatibility will be available in the future.
Minimum Mac Mini/MacBook Pro Requirements:
• i7 Processor or Greater
• Intel HD 4000 Graphics Card (512MB VRAM)
• 4GB RAM
Minimum Mac Pro Requirements:
• OS X 10.7 (Lion) or Greater
• 2.5Ghz Xeon Processor
• Intel HD 4000 Graphics Card (512MB VRAM)
• 4GB RAM
* Note: The quality of your graphics card is very critical to the quality of your RAVEN's performance.
|Frequency Response (Input)||N/A|
|Frequency Response (Output)||N/A|
|Maximum Input Level||N/A|
|Maximum Output Level|
|Model Number||Dual Raven MTX MKII wd|
