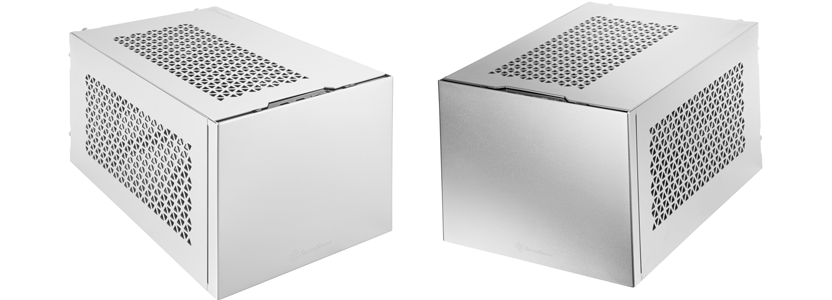

SilverStone SUGO 15 Silver Mini-ITX Cube Chassis

SilverStone SUGO 15, Silver, Mini-ITX Cube Chassis, 1x 120mm Fan, 1x USB Type-C, mDTX/mITX

Thumbnail 1 : SilverStone SUGO 15 Silver Mini-ITX Cube Chassis Thumbnail 2 : SilverStone SUGO 15 Silver Mini-ITX Cube Chassis Thumbnail 3 : SilverStone SUGO 15 Silver Mini-ITX Cube Chassis Thumbnail 4 : SilverStone SUGO 15 Silver Mini-ITX Cube Chassis
Scan code: LN112270 Manufacturer code: SST-SG15S
£159.98
Order now and get it tomorrow, Mon 1st Mar
From £14.37 / month (APR 14.9%)
Monthly Payment: £14.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £172.34
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 1st Mar to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Silver SUGO 15 Mini-ITX Cube Chassis from SilverStone

Sugo 15 Black

Transcending Small Form Factor Computing reaching high-end performance in a small form factor used to be little more than a dream for most builders, until now, unlike most small-form-factor Mini-ITX PC cases on the market is capable of supporting 3 slot full length graphics cards with its adjustable graphics card holder. The Sugo 15 is also compatible with Mini-DTX/Mini-ITX motherboards and ATX power supplies as well as up to 240mm radiators for liquid cooling enthusiasts giving you maximum compatibility with no compromise. The SUGO 15 features an intuitive modular design with four removable aluminium panels streamlining your build process and ease of upgradeability. The SUGO 15 also boasts three magnetic nylon filters to prevent external particulates damaging internal performance and includes 1x 120mm fan to get your cooling solution off to a solid start and with a front i/o panel featuring USB 3.0 and USB Type-C connectivity you have access to lightning fast transfer speeds.

Build Small, Dream Big

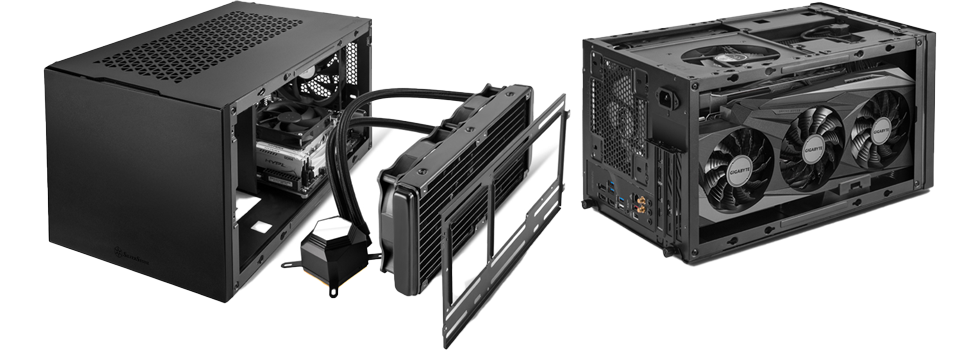

Full Length GPU

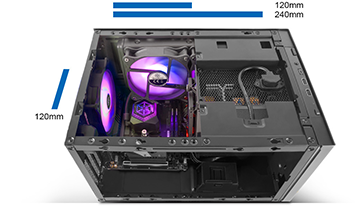

Maximum Compatibility with Zero CompromiseDon't be put off by it's small form factor, the SUGO 15 is capable of fitting a 3-slot full length graphics cards on the left side and up to a 240mm radiators on the right side. offering you massive performance opportunities in such a small form.

Please Note

Images have been used for illustrative purposes only, chassis panels are Silver.

Compatibility Beyond Expectation

Your Cooling Your WayWith it's multi-purpose bracket the SUGO 15 allows for multiple different cooling solutions and storage set ups.

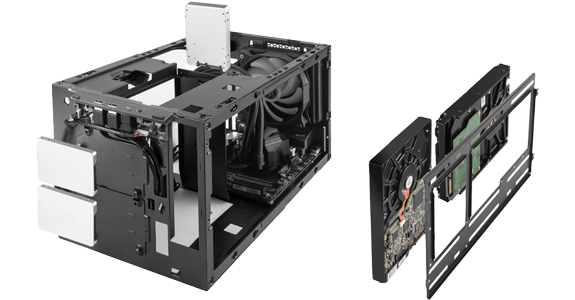

Config1

120mm radiator at the rear 3.5" HDD x 2 + 2.5" SDD x 3

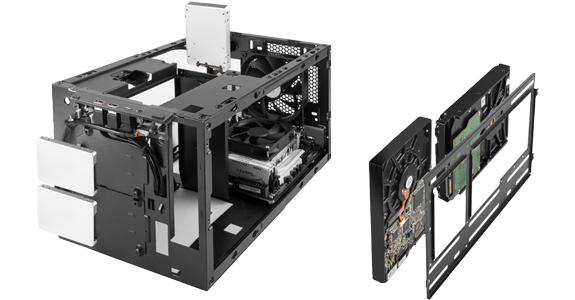

Config2

CPU cooler blowing downwards 3.5" HDD x 2, 2.5" SSD x 3

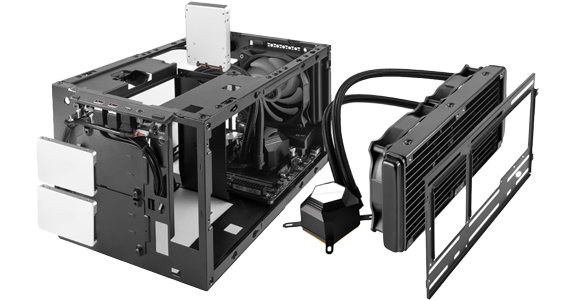

Config 3

240mm radiator on the side, 120mm radiator at the rear 2.5" SSD x 3.

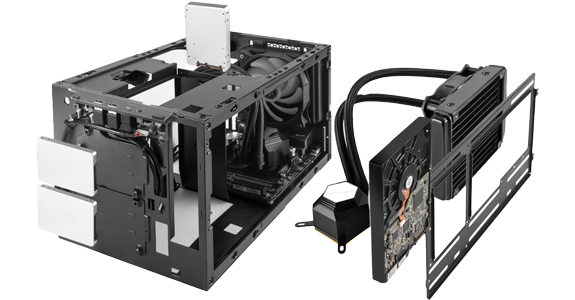

Config 4

120mm radiator on the side, 120mm radiator at the rear3.5" HDD x 1 + 2.5" SSD x 3

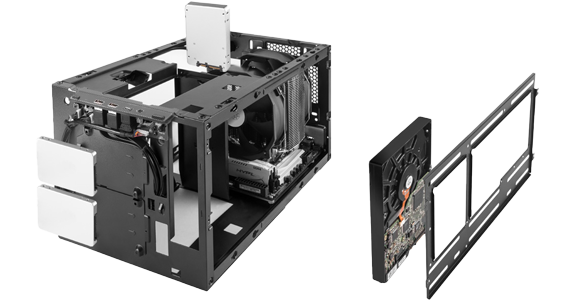

Config 5

Tower CPU air cooler3.5" HDD + 2.5" SSD x 3 3.5" device is also compatible with 120mm / 140mm fan

What Does This Chassis Support?

motherboard

Motherboard• Mini-DTX
• Mini-ITX

GPU

GPULength: 330mm
Width:148mm

Cooler

Air Cooler• 182mm (without top fan)

PSU

PSU150mm

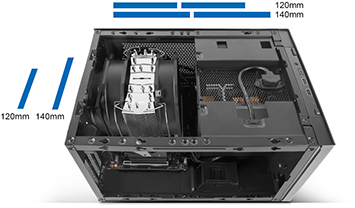

Maximum Cooling Compatibility

down

Air Cooling

up

Water Cooling

Cool it Your Way With support for both air and liquid cooling, the SUGO 15 opens up a wealth of cooling options, supporting radiators up to a massive 240mm in length and up to four mounting points for internal fan placement you can rest assured that your components will be kept cool helping you get the performance you deserve.

Specifications
Core Chassis Specifications
Case Edition SUGO 15
Case Form Factor Mini-ITX
Motherboard Form Factor
  • Mini-DTX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.0
  • 1 x USB Type-C
Drive Bays 2 x 3.5" / 3x 2.5" Internal
Standard Expansion Slots 3
Vertical Expansion Slots
Fans & Filters
Fan Bays 3 x 120mm / 3x 140mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility 1 x 120/240mm
Clearances
Max CPU Cooler Height Air cooler: 182mm (without top fan) - 240mm AIO water block: 55 mm
Max GPU Card Length 330 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 150 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Aluminium
Dimensions 247 x 211 x 366 (WxHxD mm)
Weight 4.25 kg (Approx)
