SilverStone SST-ECWA1 - Mini PCI-E to PCI-E Adapter Card + Dual Band(2.4GHz 3dBi/5GHz 5dBi) MIMO Ant

SilverStone SST-ECWA1 - Mini PCI-E to PCI-E Adapter Card + Dual Band(2.4GHz 3dBi/5GHz 5dBi) MIMO Antenna in Ci

Scan code: LN83132 Manufacturer code: SST-ECWA1 Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 27th Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

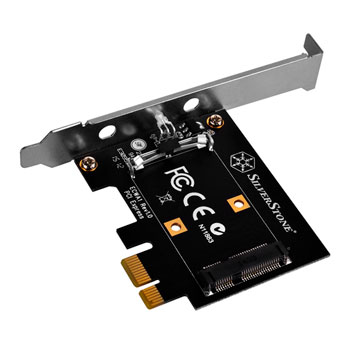

Product Overview As mobile computing continues to advance at a rapid pace, the latest and greatest wireless technology are often being released first for notebook computers in the form of Mini PCIe cards. So SilverStone created the ECWA1 adapter to give desktop PC users the same access to these exciting and ever evolving wireless networking products. Paired with for instance the SilverStone ECW02 Mini PCIe card, one can easily add 802.11ac WiFi capability to his/her own desktop PC. The ECWA1 also comes with a magnetic base and 1.5 meter long cable for placing the included 5dBi antenna in optimum location for best possible wireless reception and performance.

Mini PCI-E to standard PCI-E x1 adapter card
Support PCIe x1 at 1.5V and 3.3V
Includes standard height and low profile expansion brackets
2x dual band (2.4G/5G) 5dBi MIMO antenna
Includes circular magnetic base with gold plated SMA plug RP and 1.5m cable Features Adapter From factor Low profile PCI-E x1
Connector 52pin Mini PCI-E connector
Bracket Standard x 1 and Low profile x 1
Support voltage 1.5V and 3.3V
Type Dipole
Gain(dBi) 2.4~2.5GHz 3dBi
5.1~5.8GHz 5dBi
Polarization Linear Vertical
Radiation Omni-directional
SWR =1.8
Base Circular magnetic base with gold plated RSMA connector
Connector+Cable Low loss CLF100+Gold plated SMA plug RP, Length=150cm
Impedance 50O
Max power 50W
Dimension 48mm (W) x 48mm (L) x 235mm (H)
1.89" (W) x 1.89" (L) x 9.25" (H)
Weight 115g (with base)
