Scan code: LN45344 Manufacturer code: SST-SG07B-W USB 3.0

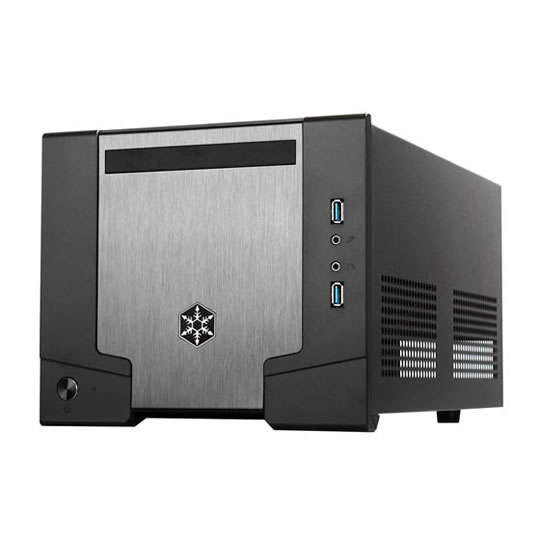

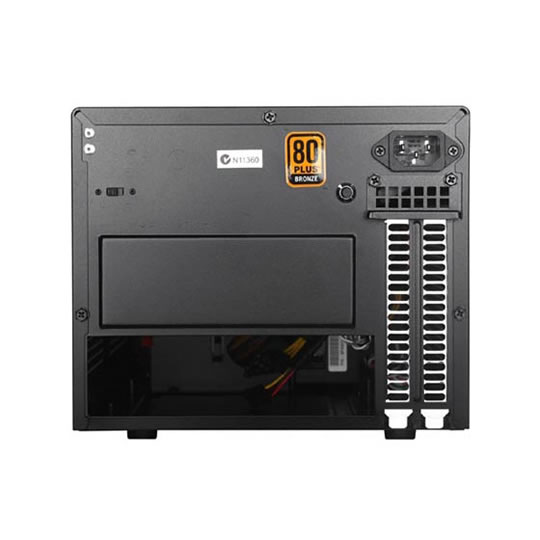

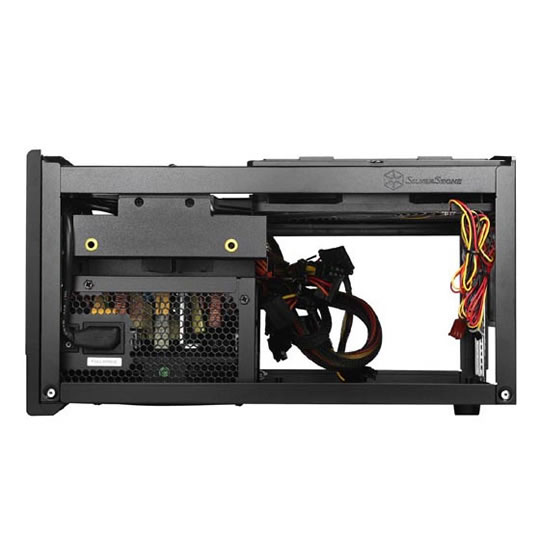

Silverstone Sugo Mini ITX Case - Window

Silverstone SG07B-W USB 3.0, Sugo SFF mini-ITX, Black with 600W ATX PSU, 80 Plus Bronze and Window Kit

Thumbnail 1 : Silverstone Sugo Mini ITX Case - Window Thumbnail 2 : Silverstone Sugo Mini ITX Case - Window Thumbnail 3 : Silverstone Sugo Mini ITX Case - Window
Scan code: LN45344 Manufacturer code: SST-SG07B-W USB 3.0
£150.49
From £13.51 / month (APR 14.9%)
Monthly Payment: £26.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £150.49
Total inc. interest: £156.68
Monthly Payment: £13.51
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £150.49
Total inc. interest: £162.13
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Jun 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The Sugo SG07, with a size that slots in between the venerable SG01 Micro-ATX SFF case from 2005 and the SG05, a powerful Mini-ITX case released in 2009, was designed to take the Mini-ITX platform to a whole new level. It is twice as powerful as the SG05 but only 37% bigger. Its custom 600W power supply, which is rated up to 50?with 80 PLUS Bronze level efficiency and single +12V rail, was carefully chosen and optimized for SG07. Exhaustive testing was conducted to create unique VGA fan duct and exhaust vents that enable SG07 to not only accommodate the longest consumer graphics cards physically (up to 12.2 inches/310mm) but also capable of supporting graphics thermal profile of up to 400W through overclocking. For the CPU and motherboard area, a record-breaking use of 180mm fan (bigger than the Mini-ITX motherboard!) with vortex generating design was utilized to provide possibility of fanless CPU cooling of up to 95W (via CPU cooler such as SilverStone’s NT06-E). But despite having tremendous amount of cooling performance, the SG07 is easy to maintain as well. It employs positive pressure layout with all intake areas fitted with removable filters so dust will not accumulate inside. If the goal is to make the ultimate Mini-ITX system, the SG07 is hard to beat. Features • Class leading SFF chassis with 180mm fan and positive pressure cooling
• Ample space for CPU cooling (117mm in height)
• Elevated standoff for motherboard back side components
• Support for two 2.5” SSD/hard drives and one 3.5” hard drive
• Includes 80 PLUS Bronze certified [email protected]? PSU with single +12V rail
• Adjustable VGA fan duct for improved cooling efficiency
• Removable fan filters included for case fan, PSU, and VGA duct
• Support graphics cards up to 12.2 inches and 400W
Specifications
Core Chassis Specifications
Case Edition
Case Form Factor
Motherboard Form Factor
  • DTX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 3.5" Internal
  • 1 x Slim Optical
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays 1 x 180mm
Fans Included 1 x 180mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included) 600 W
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Aluminium / SECC
Dimensions 222 x 190 x 350 (WxHxD mm)
Weight
