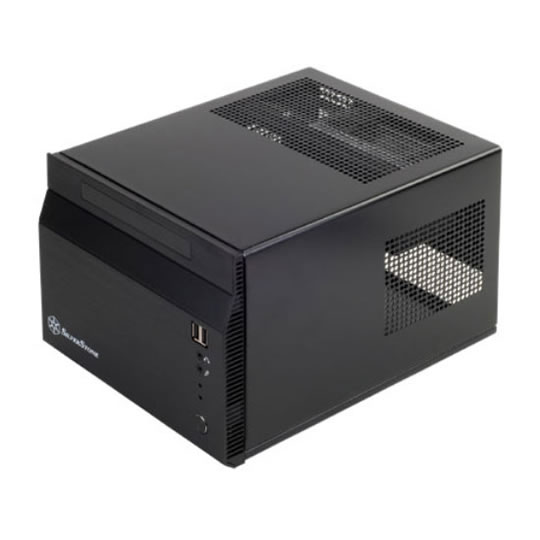

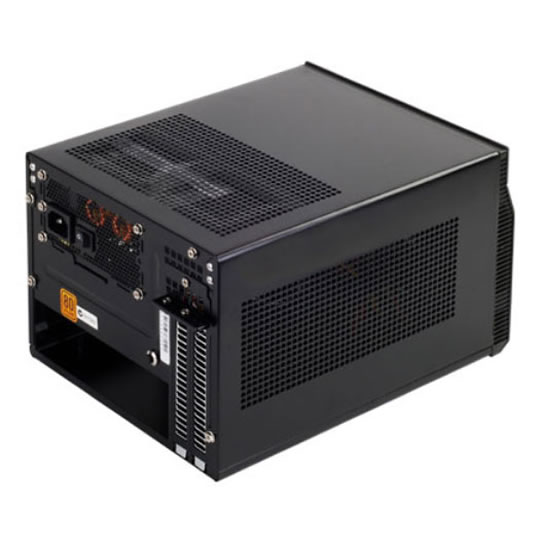

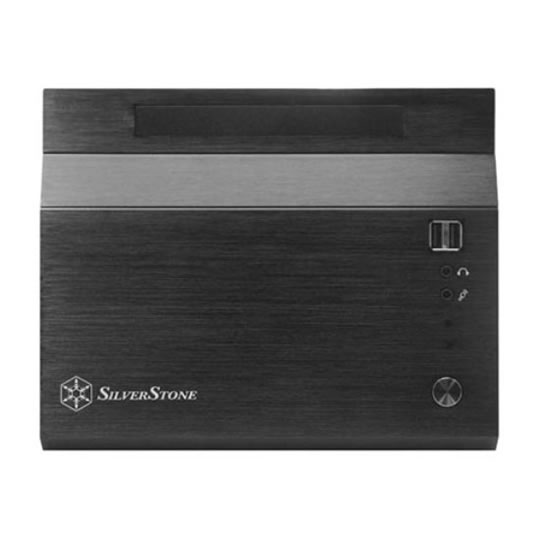

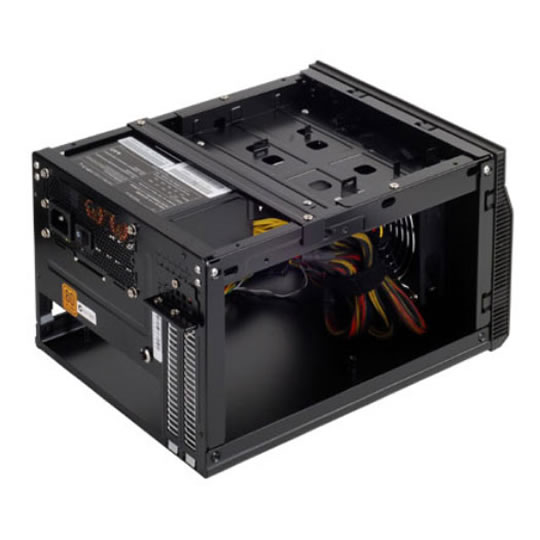

Silverstone Sugo Mini ITX Case
Silverstone SG06BB-450 USB 3.0 Sugo SFF mini-ITX/DTX All Black Cube Case with 450W SFX PSU 80 Plus Bronze
Compared with Micro-ATX iterations at around 23 liters in volume, the SG06-450 at 11.1 liters is less than half the size! In keeping with the spirit of its Sugo name, the case is capable of swallowing many standard components while keeping everything cooled.
The SG06-450 is equipped with a low speed 120mm fan that utilizes golf blades for exceptional quietness to airflow. As in the SG05, the fan is mounted in the front drawing air into the case to create positive air pressure cooling. Other notable features that are shared with the SG05 include the ability to accept 10 inch long graphics card, room for thicker 2.5 inch hard drives such as Western Digital’s VelociRaptor™, full-height for retail boxed CPU coolers, and an 80 PLUS Bronze certified SFX 450W power supply tuned by SilverStone for improved quietness and performance. For building a fast PC in the smallest possible form factor and with great styling, there is nothing better than the SG06-450.
Features • Ample space for CPU cooling (82mm in height)
• Elevated standoff for motherboard back side components
• Unprecedented 120mm fan in mini casing for positive pressure cooling
• Support 2.5” and 3.5” hard drives
• Mini-DTX / Mini-ITX motherboard compatible
• 80 PLUS Bronze certified SFX 450W power supply included
• Standard-length expansion cards support (10 inches)
|Case Form Factor||Mini-ITX|
|Motherboard Form Factor||
|Front/ Side/ Top Panel||
|Fan Bays||1 x 120mm|
|Fans Included||1 x 120mm|
|Front Radiator Compatibility|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility|
|Side Radiator Compatibility|
|Power Supply Form Factor|
|Max PSU Length|
|Max CPU Cooler Height|
|Max VGA Card Length|
|Dimensions||220 x 177 x 286 (WxHxD mm)|
|Weight||3.78 kg (Approx)|
