Silverstone Sugo Mini ITX Case - SST-SG05B USB 3.0
Delivery
DPD £11.50 Delivered by DPD Tue 27 Sep. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

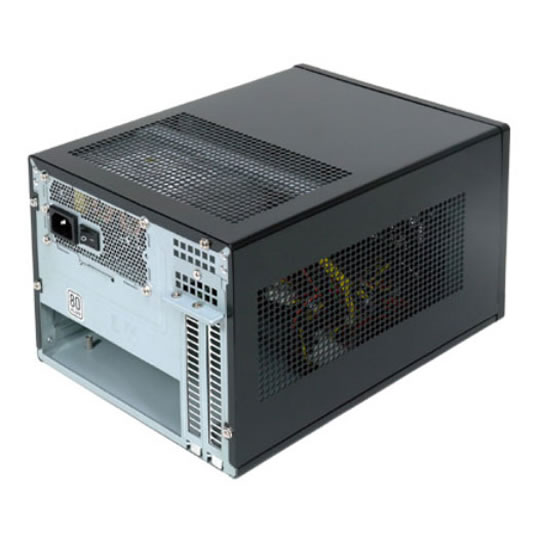

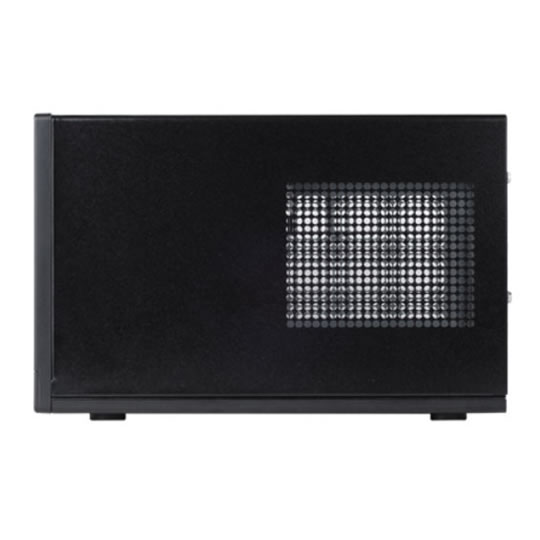

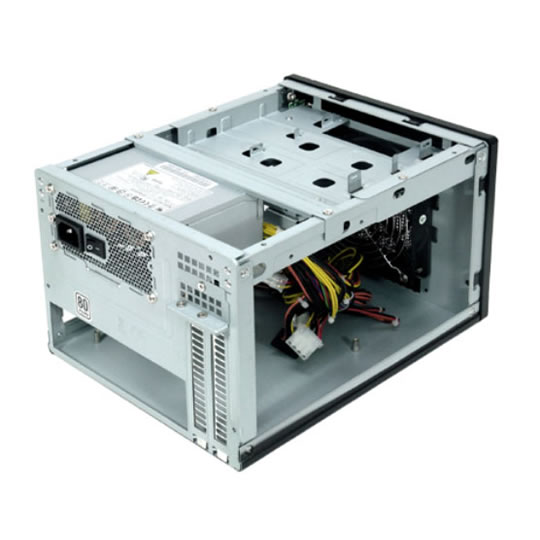

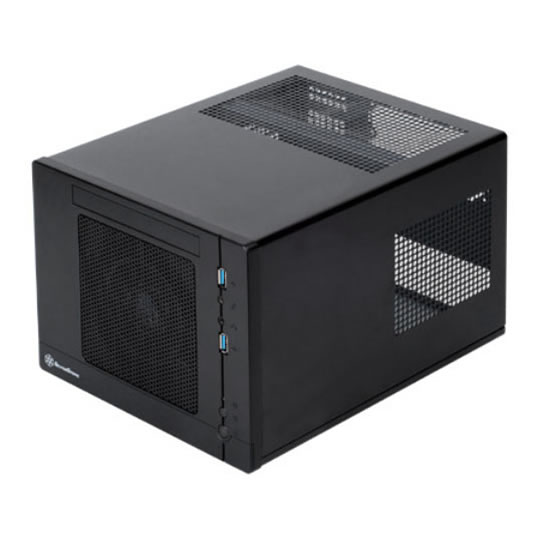

Silverstone Sugo Mini ITX Case

SST-SG05B USB 3.0 - Silverstone SG05B USB 3.0, Sugo SFF mini-ITX, Black with 300W SFX PSU, 80 Plus

Finance
Scan Finance More options

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

SST-SG05B USB 3.0 - Silverstone SG05B USB 3.0, Sugo SFF mini-ITX, Black with 300W SFX PSU, 80 Plus

Silverstone Sugo Mini ITX CaseSilverstone Sugo Mini ITX CaseSilverstone Sugo Mini ITX CaseSilverstone Sugo Mini ITX Case
Silverstone Sugo Mini ITX Case
Product Overview
Designed for use with Mini-DTX and Mini-ITX motherboards, the SG05 is the smallest Sugo yet. Compared with previous iterations at around 23 liters in volume, the SG05 at 10.8 liters is less than half the size! However, in keeping with the spirit of its Sugo name, the case is capable of swallowing many standard components while keeping everything cooled. For the first time in a case of this size class, the SG05 is equipped with a low speed 120mm fan that is mounted to create positive air pressure, ensuring good balance of cooling and quietness. Other notable features include the ability to accept 10 inch long graphics card, room for thicker 2.5 inch hard drives such as Western Digital’s VelociRaptor™, full-height for retail boxed CPU coolers, and an 80 PLUS certified SFX 300W power supply. For building a fast PC in the smallest possible form factor, the SG05 is without peers.
Features
• Ample space for CPU cooling (82mm in height)
• Elevated standoff for motherboard back side components
• Unprecedented 120mm fan in mini casing for positive pressure cooling
• Support 2.5” and 3.5” hard drives
• Mini-DTX / Mini-ITX motherboard & SFX PSU compatible
• 80 Plus certified SFX 300W power supply included
• Standard-length expansion cards support (10 inches)
Technical Specification
General
Manufacturer:
Silverstone
Case Edition:

Case Form Factor:

Motherboard Form Factor:
  • DTX
  • Mini ITX
Material:
Aluminium/ SECC
Front/ Side/ Top Panel:
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays:
  • 1 x 2.5" Internal
  • 1 x 3.5" Internal
  • 1 x Slim Optical
Expansion Slots:

Fan Bays:
  • 1 x 120mm
Fans Included:
  • 1 x 120mm
Front Radiator Compatibility:

Top Radiator Compatibility:

Bottom Radiator Compatibility:

Rear Radiator Compatibility:

Side Radiator Compatibility:

Window:
No
Power Supply Form Factor:

Max PSU Length:

Max CPU Cooler Height:

Max VGA Card Length:

Colour:
Black
Dimensions:
222 x 176 x 246 (WxHxD mm)
Weight:

Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
scan
