SilverStone Dual Internal Mini SAS 26pin SFF8087 to External 36pin SFF8088 PCI-E Panel i

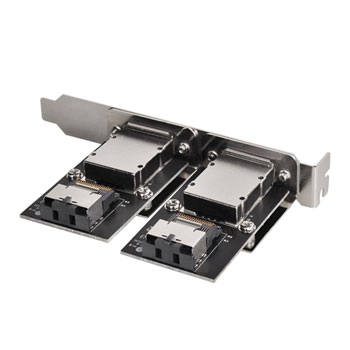

SilverStone SA022 - Dual Internal Mini SAS 26pin SFF8087 to External 36pin SFF8088 PCI-E Panel in PCI-E Card Bracket

SilverStone
Scan code: LN83342 Manufacturer code: SST-SA022 Request call
£27.49
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 23rd Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview SilverStone created a series of Mini-SAS adapter designed to satisfy server users’ need for constant drive expansion. SA011 or SA022 can convert a SFF-8087 connector to a SFF-8088 connector and support all internal SAS/SATA interface from supported controller card, motherboard, and standard external SAS adapter based on SFF-8087 connector. With SFF-8088 connector connected to external storage devices such as SilverStone’s own TS431S or RS831S, SA011/SA022 can easily enable simultaneous access to four or eight drives with high bandwidth up to 24Gbit/s or 48Gbits/s.

Supports external mini-SAS SFF-8088 26-pin sockets to drive enclosure
Supports internal SFF-8087 36-pin device connector to host terminal
Compatible with most major SAS host cards or motherboards
Concurrent transfer speed up to 48Gbit/s
Converts internal SAS/SATA port to external interface
Includes standard expansion slot bracket Features Model No. SST-SA022
Adapter feature Internal Mini-SAS SFF-8087 x 2 to external Mini-SAS SFF-8088 x 2 adapter
Transfer bandwidth Up to 48Gbit/s
Connectors Internal : Mini-SAS SFF-8087 x 2 (to host terminal, e.g. motherboard or Mini-SAS expansion card)
External : Mini-SAS SFF-8088 x 2 (to external drive enclosure)
Mounting Standard expansion slot
