Scan code: LN57436 Manufacturer code: SST-RV05B-W

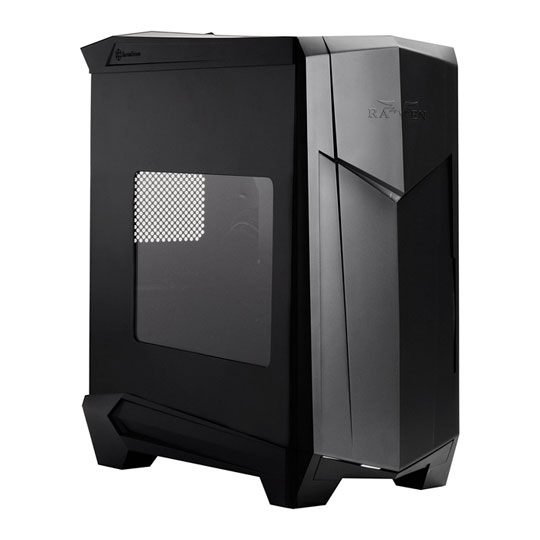

Silverstone Raven Mid Tower PC Gaming Case with Window

Silverstone Raven Black Ultimate Black Mid Tower Case with Side Window w/o PSU

Thumbnail 1 : Silverstone Raven Mid Tower PC Gaming Case with Window Thumbnail 2 : Silverstone Raven Mid Tower PC Gaming Case with Window Thumbnail 3 : Silverstone Raven Mid Tower PC Gaming Case with Window Thumbnail 4 : Silverstone Raven Mid Tower PC Gaming Case with Window
Scan code: LN57436 Manufacturer code: SST-RV05B-W
Was: £84.98
£79.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The RAVEN RV05, the fifth edition in the exciting RAVEN enthusiasts chassis series continues the tradition of breaking and evolving the standards of desktop PC design. With a bold move that sees the removal of all 5.25” drive bays, the RAVEN team engineers again saw the opportunity to re-utilize the 90 degree rotated design. Previous RAVEN models with 90 degree layout often had to compromise on space efficiency due to fixed length of the motherboard in rotated orientation.

The elimination of 5.25” bays solves this issue naturally and enables RV05 to be even more balanced in terms of design than if the same were done to a traditionally-layout case. With most of the wasted space eliminated from RV05, engineers were thus able to better optimize the case for the most important performance-affecting components such as CPU and GPUs. The result is an expertly-engineered ATX chassis that is just as capable in terms of compute power and heat dissipation as the first RAVEN chassis, the RV01, but in half the size. Equipped with latest revision Air Penetrator fans that include three speed switches and modern touches such as externally removable filters and tool-less panels, the RV05 has everything that PC enthusiasts could wish for in a compact, high performance computer case that is not only cool and quiet, but also easy to build and maintain.

For those not wanting to constantly step up in case size to obtain top-level performance, the RAVEN RV05 is the perfect solution and it may also represent a glimpse into the future of mainstream enthusiasts PC design.

Signature RAVEN styling touches Revolutionary 90 degree motherboard mounting from RAVEN RV01 Breakthrough 5.25 inch bay-free design for unprecedented power to size ratio Two Air Penetrator fans included for great performance and quietness Positive air pressure design for excellent cooling/quietness and dust-prevention Quick-release latch for fast side panel removal Front access to main filter for easy maintenance Support for various liquid cooling radiator sizes Features • Revolutionary 90 degrees motherboard mounting enables stack effect for natural heat convection
• Independent PSU intake vent prevents waste heat circulation
• Supports up to SSI-CEB motherboard
• Two 2.5” SSD/HDD slots on the backplate
• Supports two easy access drive bays with thumb screw design
• Includes two Air Penetrator 180mm fans for superb performance and quietness
• Top 120mm fan slot completes overall airflow and supports AIO liquid cooler
• Top-mounted stealth I/O ports include microphone, audio and two USB 3.0 ports
• All black one-piece front panel inherits signature RAVEN styling touches
• Slim slot-loading optical drive slot
• Support for various liquid cooling radiator configurations
• Positive air pressure design with front-accessible main filter for class leading dust reduction
Specifications
Core Chassis Specifications
Case Edition Raven
Case Form Factor ATX
Motherboard Form Factor
  • ATX
  • MicroATX
  • SSI CEB
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Line Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5" Internal
  • 1 x Slim Optical
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120/140mm
  • 1 x 120mm
  • 2 x 180mm
Fans Included 2 x 180mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 242 x 529 x 498 (WxHxD mm)
Weight 7.6 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
scan
Loading Please Wait

Please wait . . .

Reviews
Silverstone Raven Black Ultimate Black Mid Tower Case with Side Window w/o PSU is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Best Case The cooling in this is insane! The cool air vents from the bottom up to the top. I have 2 extra fans and heat sink for my cpu. Only one slight problem you might have its a tight fit ;)
Date published: 2017-03-27
Rated 5 out of 5 by from Aircooled super case This can is the best i'v seen for cooling performance. I swapped from a NZXT H440 and dropped 10 degrees on my CPU and GPU. The panels can be a bit cheap and theres screws EVERYWHERE but with time and effort the rig looks sweet, silent and dust proof. Just buy it however be prepared to invest lots of time into cable management.
Date published: 2015-03-24
Rated 5 out of 5 by from Air Excellence like its big brothers where the board's IO are on top...this is an amazing engineering work to max out air-cooled systems. air filter set is amazing as well so you would not need to worry about dust burrowing to your GPU and MB. If your into air cooling, has decent heatsink this is the best case for you, This generation has a smaller footprint as well.d
Date published: 2015-03-23
