Scan code: LN83130 Manufacturer code: SST-ECS05

SilverStone SST- ECS05 8 PortServer-grade PCI-E Express Card Gen 3.0 SAS(12Gb/s) / SATA(6Gb/s)

SilverStone ECS05 Server-grade PCI-E Express Card Gen 3.0 SAS(12Gb/s) / SATA(6Gb/s) Ports Controller

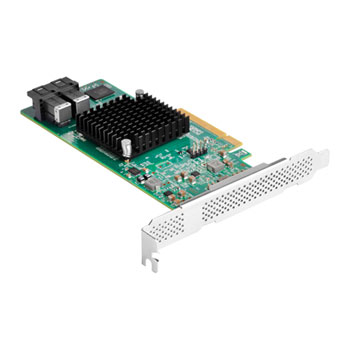

Thumbnail 1 : SilverStone SST- ECS05 8 PortServer-grade PCI-E Express Card Gen 3.0 SAS(12Gb/s) / SATA(6Gb/s)
SilverStone SST- ECS05 8 PortServer-grade PCI-E Express Card Gen 3.0 SAS(12Gb/s) / SATA(6Gb/s) : image 1
Scan code: LN83130 Manufacturer code: SST-ECS05
£313.99
From £15.08 / month (APR 14.9%)
Monthly Payment: £54.49
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £313.99
Total inc. interest: £326.91
Monthly Payment: £28.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £313.99
Total inc. interest: £338.23
Monthly Payment: £19.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £313.99
Total inc. interest: £349.84
Monthly Payment: £15.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £313.99
Total inc. interest: £361.66
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.84 / month (APR 15.9%)
Delivery Options
  • By DPD On 26th Jun 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview SilverStone team has brought server-grade performance to both hi-end and professional users with the ECS05, a SAS/SATA expansion card with PCI-E Gen 3.0(x8)throughput 64 Gbps. It has two Mini-SAS HD SFF-8643 connectors that can support up to eight SAS/SATA storage drives (single channel). Based on the LSISAS3008 RAID controller, this storage expansion card also supports RAID 0/1/1E/10 mode and has protection mechanism for maintaining the integrity of your valuable data.

8 x SAS/SATA ports
Supports SAS 12Gb/s, SATA 6Gb/s
PCI-E Gen 3.0 x8 throughput 64 Gbps
Low profile design
Supports RAID 0, 1, 1E, 10
Features Interface Mini-SAS HD SFF-8643 x 2
Form factor Low profile - PCI Express 3.0 x8 throughput 64 Gbps
Drive Support SAS up to 12Gb/s, SATA up to 6Gb/s (up to 1024 SAS/SATA devices)
Controller LSISAS3008 RAID-on-chip
RAID function 0, 1, 1E, 10
PCI Card Type 3.3V Add-in Card
Operating Voltage +12V +/- 8% ; 3.3V +/- 9%
Brackets Full height and low profile bracket
Net weight 91g
Dimension 120mm (W) x 23mm (H) x 154mm (D)
4.72" (W) x 0.91" (H) x 6.06" (D)
Specifications
Ports Total
Ports Internal
Ports External
Connectors
Interface
JBOD No
RAID Support N/A
Low Profile Compatible No
Cables Inc.
Cache Memory
Notes
