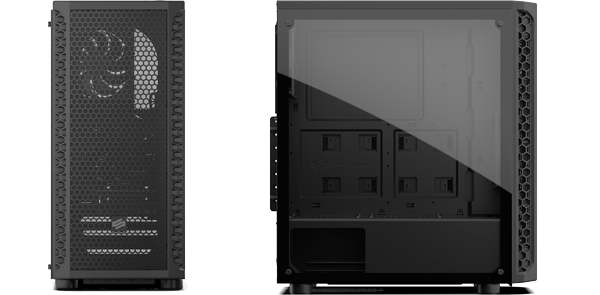

Signum SG1 TG Black Mid Tower Gaming Case by SilentiumPC

SilentiumPC Signum SG1 TG Black Mid Tower PC Case

Part of the Signum family Designed for gamers in mind, the Signum SG1 TG Mid Tower PC Gaming case in Black from SilentiumPC is ideal for those looking ODD-less designs to the lower price points. Combining pure functionality with a pinch of style, the Signum is an excellent mainline case choice for any budget-conscious system builder and DIY user. Inspired by automotive design, the distinctive, hexagonal side-vents are not only functional, providing ample airflow, but also a vital design element giving the Signum its unique personality. Signum SG1 TG mesh front panel, tempered glass side panel and two Sigma HP 120mm fans.

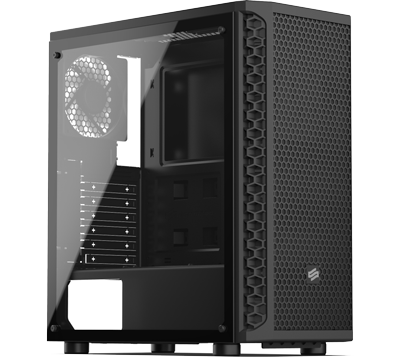

Tempered Glass Side Panel

panel design

A clear view into your system A big side panel made of tempered glass allows users to show of their precious hardware installed inside SilentiumPC Signum SG1 TG case. The hexagonal vents on both sides of the chassis are a part of the unique design characteristic for the Signum family. This kind of pattern of a front panel not only looks great, but it also provides an unobstructed access of the fresh air necessary for effective cooling of the components mounted inside.

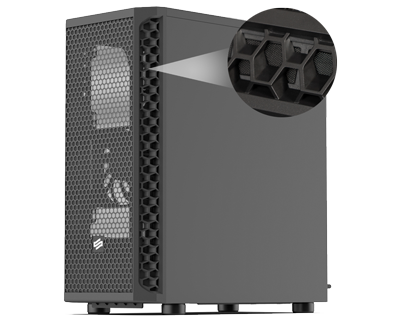

Effective Internal Cooling

cooling design

two pre-equipped Sigma HP 120 mm fans The modern structure of Signum SG1 TG prioritizes the airflow thanks to which the efficient cooling of the processing units and all the other components installed becomes possible. The out-of-the-box configuration consists of two Sigma HP 120 mm fans with the user being able to make use of another six fan mounting points. The two pre-equipped Sigma HP 120 mm fans amplify the naturally high for a dual chamber construction volume of airflow thus provides the low temperatures of the components installed.

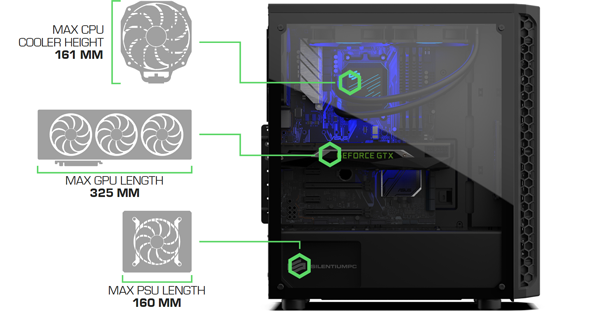

Great Functionality with Dual Chamber Structure

support

AIO LC Compatibility In terms of functionality this chassis was created for ultimate practicality in mind with internal layout radically simplified for ease of installation and maintenance. Signum chassis supports ATX, microATX and mini-ITX mainboards and offers ample space for latest VGA cards with a length of up to 325 mm as well as CPU air coolers with a maximum height of 161 mm. Signum SG1 TG offers enough space for the integrated sets of liquid cooling (AIO LC). The 120/240/360 sized ones will fit on front, 120/240 on top and another 120 can be installed at the back of the case. The interior of SilentiumPC Signum SG1 TG chassis was split into two main areas (one for the PSU and the hard drives and the second one for the remaining components).

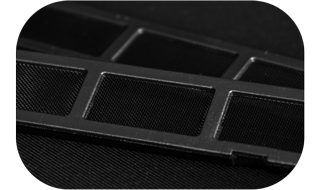

Keep Dust at Bay

filters

Five dust filtersIn SilentiumPC Signum SG1 TG case the five dust filters fitted as standard take care of its interiors cleanliness. Three of them are mounted on front, another one under the PSU and finally, one on top of the chassis.

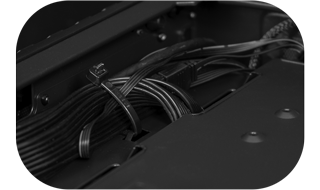

Cable Arrangement System

cables

neat and tidySilentiumPC Signum SG1 TG is equipped with the cable arrangement system which consists of numerous cable entries, and a large amount of space behind the motherboard tray allows users to arrange the cables very precisely without interrupting the airflow that takes place inside of the case.

Connectivity Exactly where you need it

ports

I/O control panelAll the controls and connectors at your fingertips – 2x USB 3.1 Gen 1 (3.0) on top of the case, headphones and microphone port and POWER/RESET buttons. Such a location of the connectors provides not only the convenience of use, but also protects the plugged flash memory from accidental physical damage.

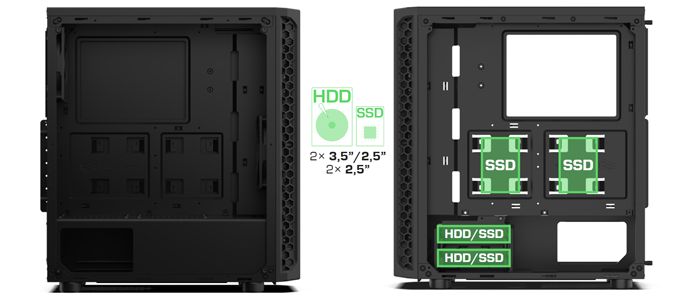

Space for Ample Storage

storage

SSD mounts behind the motherboard Two 2.5" devices (e.g. SSD drives) can be mounted in bays designed specifically for this purpose and located on the other side of the motherboard tray, in a service bay of the chassis. In order to access it, the user has to unscrew the side panel’s bolts and remove it. Such mounted SSDs do not take up space intended for the 3.5" hard drives.

Specifications
Core Chassis Specifications
Case Edition Signum SG1 TG
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Reset Button
  • 2 x USB 3.2 Gen1 Type-A
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 6
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 6 x 120mm
  • 2 x 120mm / 2x 140mm
Fans Included 2 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility
  • 1 x 120mm
  • 1 x 240mm
  • 1 x 360mm
Top Radiator Compatibility
  • 1 x 120mm
  • 1 x 240mm
Bottom Radiator Compatibility 1 x 240mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 161 mm
Max GPU Card Length 325 mm
Cable Routing Space 23 - 35 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 160 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 216 x 447 x 413 (WxHxD mm)
Weight 4.8 kg (Approx)
