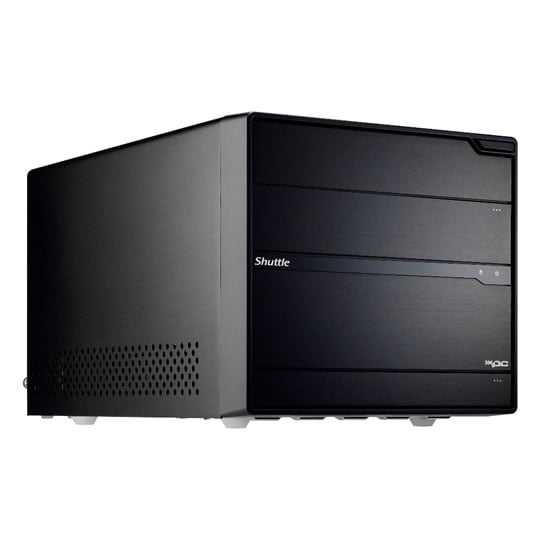

Shuttle SZ68R5 Barebone PC S1155

Shuttle SZ68R5, S1155, Intel Z68, DDR3 1333, PCIe 2.0 (x16), SATA III - 6Gb/s, On Board VGA

Shuttle
Scan code: LN43956 Manufacturer code: SZ68R5 Request call
£264.49
In stock
Pay on Scan Finance with a 10% deposit from just £6.61 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £9.58 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview The Shuttle SZ68R5 features the latest Intel® Z68 Express Chipset and supports 2nd generation Intel® Core™ i processor. This platform delivers the most flexibility and performance for the LGA 1155 socket, providing the best built-in visual features of 2nd generation Intel® Core™ i processor family. It accommodates up to 32GB DDR3 memory which makes it an ideal workstation for users. The SZ68R5 offers an advantage of Intel’s Smart Response Technology which enables an SSD drive to bolster the system performance. With a Shuttle Smart USB Port with 2 Amp power feed on the front, the SZ68R5 is able to speed charge the power hungry devices such as an iPad/iPhone. A 500 Watt power supply with 80 PLUS BRONZE certification comes pre-installed in the tiny footprint.
Features The New R5 Chassis Design
Shuttle has always placed great emphasis on the interior and exterior aesthetics of the XPC, with the belief that a good blend of style and form factor allows the XPC to be attractive, versatile, and work well in almost any environment. R5 is the new chassis design for the middle to high-end series XPCs in the year 2012. The chassis and case cover are made of aluminum and come with a sleek brushed metal front fascia.

Smart USB Port for Apple iPhone/iPad
The Shuttle Smart USB Port is a USB port which allows fast power charging when a smart phone or tablet PC plugin is detected. It is designed to feed power up to 5V/2A(varies with different smart devices) no matter when the system power is on or off.
* Smart USB port compatible for Shuttle R5 series models
* 2A only available for Windows XP and Windows 7 O.S. The normal charge 500mA applies to other mobile devices and Linux O.S.

Intel® Smart Response Technology

Integrated Cooling Engine Technology (I.C.E.)

80 PLUS BRONZE certified 500W Power Supply

Mini-ITX Mainboard Support
Shuttle expands the capabilities of its R chassis, adding support for Mini-ITX mainboards (17 x 17cm or 6.7 x 6.7 inches). The Shuttle chassis can go beyond the Shuttle mainboard, so you can easily upgrade or downgrade the mainboard to your desire, without any modifications to the chassis.



Specifications
Specifications
Form Factor Shuttle Form Factor
CPU Included No
CPU Type
Core
No. of Threads N/A
CPU Model
Clock Speed N/A
Burst Frequency N/A
CPU Socket 1155
Chipset Intel Z68
Memory Type DDR3
Memory Included No
Memory N/A
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz) DDR3 - 1333
Max. Memory Capacity 32GB (8x4GB)
On Board VGA Yes
PSU Wattage 500 W
Graphics Interface PCIe 2.0 (x16)
SLI No
Expansion Slots
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x4
SATA SATA III 6Gb/s
Storage Drive Included No
Storage Drive Type
Storage Drive Size N/A
RAID N/A
Internal I/O
  • 1 x 20pin (V)
  • 1 x 4pin (V)
  • 2 x 4pin Fan (V)
  • 1 x Aux-In
  • 2 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-In Header
  • 1 x USB 2.0 Header
Front Panel
  • 1 x Hard drive activity LED
  • 1 x Power On/Off button
  • 2 x USB 2.0
  • 1 x USB 3.0
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x DVI-I
  • 1 x HDMI
  • 4 x USB 2.0
  • 2 x USB 3.0
Processor Graphics N/A
Base GPU Speed N/A
Max. GPU Speed N/A
Max. GPU Resolution
Drive Bays N/A
Optical Drives None
Keyboard / Mouse No
Remote Control No
VESA Mountable
Operating System Included No
Operating System N/A
Colour Black
Dimensions 216 x 198 x 332 (mm WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
