Scan code: LN8816 Manufacturer code: SN95G5

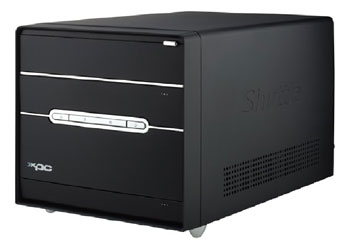

Shuttle SN95G5 V3 AMD K8 AMD S939, Gbit LAN, USB2, Firewire, RAID, SATA RAID, 6ch. Audio

Thumbnail 1 : Shuttle SN95G5 V3 AMD K8 AMD S939, Gbit LAN, USB2, Firewire, RAID, SATA RAID, 6ch. Audio
Shuttle SN95G5 V3 AMD K8 AMD S939, Gbit LAN, USB2, Firewire, RAID, SATA RAID, 6ch. Audio   : image 1
Scan code: LN8816 Manufacturer code: SN95G5
£170.65
From £15.32 / month (APR 14.9%)
Monthly Payment: £29.62
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £170.65
Total inc. interest: £177.67
Monthly Payment: £15.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £170.65
Total inc. interest: £183.83
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 30th May 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The XPC SN95G5 destroys the myth that bigger PCs are faster. Designed for power-hungry users, this AMD Athlon 64-based small form factor (SFF) computer delivers tower-crushing, performance in one-third the space. Do everything faster, get the XPC SN95G5 today! The XPC SN95G5 is an ideal: LAN-gaming PC; Home gaming machine; Digital media management center; Digital content workstation.
Features Hardware Firewall
high-performance, network-level firewall, this Hardware Firewall protects your PC from intruders by filtering unauthorized traffic. Integrated into The SN95G5 V3, it provides professional-grade traffic inspection capabilities, advanced management features--remote access, configuration, and monitoring--and is easy to use and setup via a user friendly wizard.

Silent X Technology
The XPC SN95G5 V3 proudly wears the Silent X technology logo. The Silent X concept is embodied in a number of discreet Shuttle technologies, including; A Silent X PSU, Integrated Cooling Engine (ICE); and intelligently-engineered airflow mechanics.

"Silent X is a world-class family of cooling and noise-reduction technologies exclusive to the Shuttle XPC," said Jonathon Yi, vice-president of product management, Shuttle. "The Silent X logo is your assurance that Shuttle XPC's are 'Super Quiet, Super Cool.'"

Integrated Cooling Engine (ICE) Module
The Integrated Cooling Engine (ICE) included in the SN95G5 V3 improves on previous XPC ICE designs. The ICE module's thermal resistance has been reduced to an amazing 0.16oC/W. This is more half the thermal resistance of first generation XPCs and almost one-third that of Intel's BTX standard. Further, the heat exchange surface area has been greatly increased. In addition, this model sports a large 92mm cooling fan to quietly push more air out the back of the case.

The Integrated Cooling Engine uses convection (liquid) cooling to transfer heat away from the processor and other critical system components. Copper tubing, coated in nickel and filled with distilled water provides the conduit through which heat is radiated out of the chassis.

Smart Fan
As mentioned, the XPC SN95G5 V3 features a new 92mm Smart Fan, which moves (50CFM) a great volume of air. This fan features a 4-pin header, i.e PWM spec, and be linearly controlled in BIOS, which means that "fan cycling" is a thing of the past.

240 Watt Power Supply
The SN95G5 V3 features the "Super Quiet, Super Cool" Silent X 240W PSU. Tested in our acoustic lab from a distance of 50cm (many competitors take measurements at 1M), the PSU operates at just 32dB, which is equivalent to the news generated by quite room and just barely audible to the human ear.

Airflow
The XPC SN95G5 V3 features more air intake points designed to keep the motherboard cool and stable. The underside edge is lined with intake points. Other intake points are also located on the underside of the machine to improve motherboard cooling. Internally, the NB fan directs air across MOSFETS, providing superior cooling and stability.

Integrated Cable Management
Starting with the SN85G4 (production version), all new XPC's will ship with integrated cable management to ease installation. IDE cables will be pre-installed, and power leads will be wrapped and clipped to the chassis. The SN95G5 V3 goes one step further and integrates one serial ATA cables for the rack HDD.
Specifications
Edition
Form Factor
CPU Included No
CPU Type 2000MHz
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket 939
Chipset nForce 3
Motherboard Form Factor
Motherboard Model
Memory Type DDR
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR - 266
  • DDR - 333
  • DDR - 400
Max. Memory Capacity 2GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface AGP 4x/8x
Expansion Slots 1 x PCI (32 bit)
SATA SATA1
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays
  • 2 x 3.5" External
  • 1 x 5.25" External
Backplane I/O
RAID Support SATA
Internal I/O
  • 1 x Aux-In
  • 2 x CD-In
  • 1 x Floppy
  • 2 x IDE
  • 1 x IrDA
  • 2 x SATA 1.5Gb/s
  • 2 x USB 2.0 Header
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Firewire (4pin)
  • 1 x Line Out
  • 1 x Mic In
  • 2 x USB 2.0
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Firewire (6pin)
  • 1 x Line In
  • 1 x Line Out
  • 2 x PS/2 Mouse
  • 1 x S/PDIF-In
  • 1 x S/PDIF-Out
  • 1 x Serial (COM)
  • 2 x USB 2.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 240 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 310 x 200 x 185 mm (mm WxHxD)
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
0871 472 4747

Additional Notes:
Subject to 2 years manufacturers warranty.

For full details please use the following link:
http://eu.shuttle.com/en/DesktopDefault.aspx/tabid-246/
