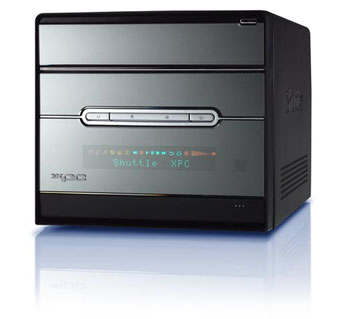

Shuttle SB83G5M S775 XPC Barebone DDR400 PCI-E SATA Raid GbE Lan USB2/1394 5.1Ch Audio    : image 1
Scan code: LN11234 Manufacturer code: SB83G5M
FREE Bullguard Internet Security 2018 3 User/1 year Worth 19.99
£119.99
From £10.78 / month (APR 14.9%)
Monthly Payment: £20.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £124.93
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Barebone for your Media Center entertainment - compatible with Microsoft Windows XP Media Center Edition 2005
Exceptionally quiet and stylish, this intelligently designed and engineered small form factor computer features the full-spectrum of the latest cutting edge technology. Designed to be the hub of your digital life, the XPC SB83G5M is the ideal digital entertainment gateway. The built-in FireWire, USB 2.0, and 6-channel digital audio ports make it easy to get media in and out: TV, video, photographs, music. SB83G5M with its integrated VFD Media Display is compatible with Microsofts Windows XP Media Center Edition 2005. It lets you easily enjoy a complete home entertainment experience with this top-of-the-line SFF computer. Features Chassis
G5-type aluminum chassis, black color
storage bays: 1 x 5.25", 2 x 3.5" (1 internal), stealthed drive doors
integrated VFD Media Display (Versatile front-panel display):
compliant to MS Windows XP Media Center Edition 2005
dimensions: 30 x 20 x 18.5 cm (LWH),
weight: 2.85 kg net / 4.65 kg gross
Mainboard
Shuttle FB83, Shuttle form factor, proprietary design for SB83G5M
Chipset: Intel 915G + ICH6R
Award V6.0PG BIOS, 4MBit flash memory
with hardware monitoring and ACPI power management functions
dimensions: 25.4 x 18.5 cm
Power supply
SilentX 250 Watt mini PSU, supports 100/240V,
connectors: 20-pin ATX, 4-pin ATX12V, 4-pin 12 power for VGA
EMI certified: FCC, CE, BSMI; Safety certified: UL, TÜV, CB
Processor support
Socket 775 supports Intel Pentium 4 and Celeron D processors
at 800 or 533 FSB, supports Hyper-Threading
Processor cooling
Shuttle I.C.E. (Integrated Cooling Engine)
advanced Heatpipe technology, linear 92mm fan control
Memory support
2 x 184 pin slots, supports Dual Channel
supports PC3200/2700 (DDR400/333) DDR SDRAM memory
up to a total size of 2 GB
Slots
1 x PCI-Express (PCI-E, 16X)
1 x 32 Bit PCI (v2.2)
Graphics
Intel Graphics Media Accelerator 900 (GMA900)
with PCI-E x1 improved bandwidth, features 333MHz graphics core
DX8/DX9 support and enhanced 3D performance
Dynamic Video Memory Technology (DVMT) 3.0, shared Memory max. 224MB
6-channel audio
Realtek ALC658 5.1 channel audio
analog: line-out (6-ch), line-in, microphone, CD-in, AUX
digital: optical SPDIF in/out, coaxial output
Gigabit LAN Controller
Marvell 88E8001 Ethernet network controller
supports 10 / 100 / 1.000 MBit/s opteration
Firewire Controller
IEEE1394 Firewire controller VIA VT6307, with 2 Firewire connectors (front and rear)
supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
Drive connectors
2 x Serial-ATA 150, supports Raid 0 and 1
1 x IDE ATA 100 drives
1 x floppy disk drive
Front Panel Connectors
Microphone
Headphone (Line-out)
2x USB 2.0
Firewire (4 pol.)
Back Panel Connectors
VGA
Firewire (6 pin)
PS/2 for mouse and keyboard
GigaBit LAN (RJ45)
2x USB 2.0
Serial port (COM)
6-ch Audio line-out (2x rear/front, bass/center)
SPDIF: optical in/out, coaxial out
Line-in
optional parallel port
optional Wireless LAN module
Other connectors
4 x USB 2.0 (total 8x)
2 x CDROM inputs
1 x AUX
3 x fan connectors
Software
XPC Tools - System Management Software: control performance, thermal and acoustic settings easily
Trend Micro PC-cillin Internet Security 2004
Note: The barebone XPC SB83G5M includes chassis, VFD-display, mainboard, CPU cooling system and power supply. For a fully configured Media Center System you need in addition: CPU, memory, storage drives, graphics and TV Tuner card (analog or DVB-T), keyboard, mouse, MCE compliant remote control and Windows XP Media Center Edition 2005. Caution: graphics card and TV tuner have to be compliant with MCE 2005. (please see the compatibility link at the right side of this page)
Conformity
This device is classed as a technical information
equipment (ITE) in class B and is intended for use in
living room and office. The CE-mark approves the
conformity by the EU-guidelines:
- EMV-guideline 89/336/EWG electromagnetic tolerance
- LVD-guideline 73/23/EWG use of electric devices
within certain voltage-limits
Specifications
Edition
Form Factor
CPU Included No
CPU Type 800MHz
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket 775
Chipset Intel 915
Motherboard Form Factor
Motherboard Model
Memory Type DDR
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR - 333
  • DDR - 400
Max. Memory Capacity 2GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe (x16)
Expansion Slots
  • 1 x PCI (32 bit)
  • 1 x PCIe x16
SATA SATA1
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays
  • 2 x 3.5" Internal
  • 1 x 5.25" External
Backplane I/O
RAID Support N/A
Internal I/O
  • 1 x Floppy
  • 1 x IDE
  • 2 x SATA 1.5Gb/s
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Firewire (4pin)
  • 1 x Line Out
  • 1 x Mic In
  • 2 x USB 2.0
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Coaxial (Phono)
  • 1 x D-Sub (VGA) Out
  • 1 x Firewire (6pin)
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x S/PDIF-In
  • 1 x S/PDIF-Out
  • 1 x Serial (COM)
  • 2 x USB 2.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 250 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 200 x 185 x 310 (mm WxHxD)
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
