Roland UVC-01 USB Video Capture

Roland UVC-01, Video Capture Interface, 1080p60, HDMI to USB 3.0, Bus Powered

Thumbnail 1 : Roland UVC-01 USB Video Capture Thumbnail 2 : Roland UVC-01 USB Video Capture Thumbnail 3 : Roland UVC-01 USB Video Capture Thumbnail 4 : Roland UVC-01 USB Video Capture
Scan code: LN111524 Manufacturer code: UVC-01
Order now and get it tomorrow, Wed 17th Jul
Get it Tomorrow, 17 JulIn stock
From £12.89 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £23.92
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £263.99
Total inc. interest: £287.00
Monthly Payment: £12.89
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £263.99
Total inc. interest: £309.34
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Roland - 'UVC-01'
'USB Video Capture'

Roland UVC-01 USB Video Capture

Plug and Play for Flawless Rcordings and LivestreamsFor online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it’s never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder.

Just connect to the UVC-01 via HDMI, plug into your computer’s USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

At a Glance • High-quality HDMI to USB 3.0 video encoder
• Plug-and-play USB webcam operation for Mac and Windows computers
• Seamlessly works with all Roland V-series switchers with an HDMI output
• Also works with most HDMI-equipped cameras and camcorders
• Uncompressed 1080p HD at 60 FPS for engaging livestreams
• Dedicated analog audio line input for live music versatility
• Powered via USB

Uncompressed 1080p60 Encoding

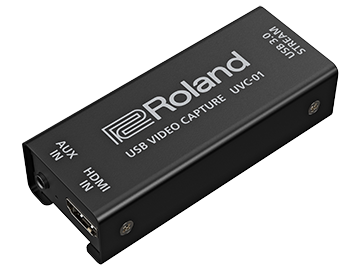

angled view of the roland usb video capture

Quality You Can Count OnBacked by more than two decades of professional A/V product development, Roland’s UVC-01 drives your livestream with uncompressed 1080p HD image quality, ultra-smooth 60 FPS motion, and low-latency encoding. And thanks to its hardware-based design, it just works every time you need it—efficiently, consistently, and reliably.

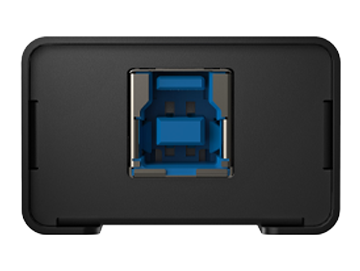

roland usb video capture usb stream port

Plug In and StreamOnce connected, the UVC-01 automatically shows up as a source in your streaming software, with no drivers or fussy setup required. Like a dedicated webcam, it encodes HDMI to USB video class and USB audio class formats, letting you instantly stream at superspeed USB 3.0 with any service, platform, or application that accepts a webcam as its A/V source.

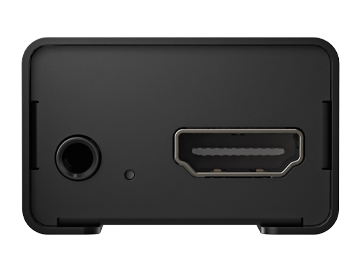

roland usb video capture hdmi and audio ports

A Sound SolutionWith the UVC-01, stereo audio is embedded in the HDMI feed along with video. And thanks to the dedicated audio input, it’s possible to blend a secondary sound source as well. For example, you can play bumper music from your smartphone, or use Roland’s GO-MIXER Pro to combine a mic and instruments for impactful musical performances.

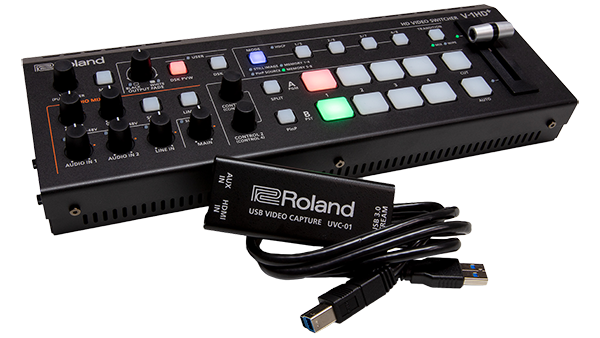

roland usb video capture with video switcher

Reach More PeopleBy delivering your message to in-person and online audiences at the same time, you can achieve a wider reach with minimal extra effort. Using a Roland professional video switcher in tandem with a UVC-01, it’s simple to create these hybrid productions. Just connect the UVC-01 to the second output of your switcher and simultaneously broadcast live action to your preferred streaming platform.

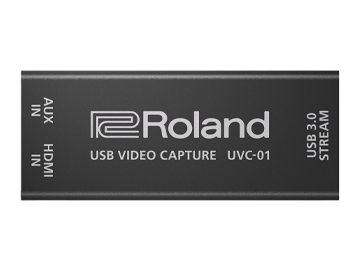

top view of the roland usb video capture

Capture and DistributeIn some situations, you may want to record a presentation ahead of time and distribute it online after the fact. With the free Roland Video Recorder application, you can capture high-quality video and audio through the UVC-01 in real time, ready for upload to video sharing sites.

The Tech Spec

Features Specification
Input HDMI, AUX in
Output USB 3.0 Type B
Input Formats 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
USB Video Output Format YUY2 (Uncompressed)
Audio Formats HDMI IN: Linear PCM, 48 kHz / 44.1 kHz, 24/20/16 bits, stereo
USB Stream:Linear PCM, 48 kHz, 16 bits, stereo
Nominal Input Level AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance AUX IN jack: 10 k ohms
Power Supply USB Bus Powered
Current Draw 500 mA
Operating Temperature 0°C to 40°C
Dimensions 90 x 37 x 23mm (WxDxH)
Weight 96g
