ROLAND TRI CAPTURE AUDIO INTERFACE

Roland Tri-Capture UA33 - USB 1.1, 96 kHz, 24 Bit, 1 Mic Pre's , 4 / 2 Analogue I/O

Thumbnail 1 : ROLAND TRI CAPTURE AUDIO INTERFACE Thumbnail 2 : ROLAND TRI CAPTURE AUDIO INTERFACE Thumbnail 3 : ROLAND TRI CAPTURE AUDIO INTERFACE
Scan code: LN48396 Manufacturer code: ROLANDUA-33
End Of Life
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

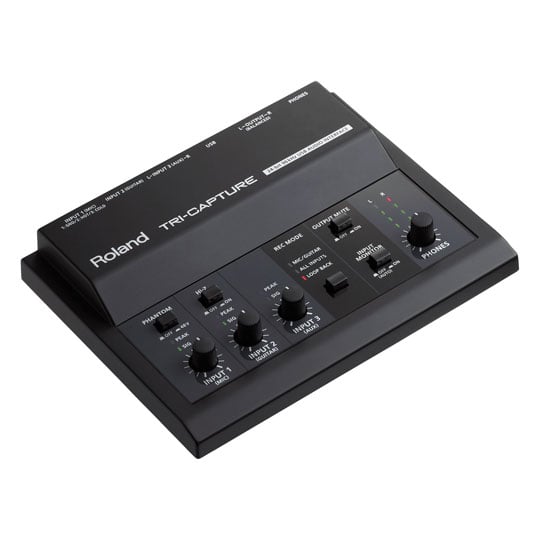

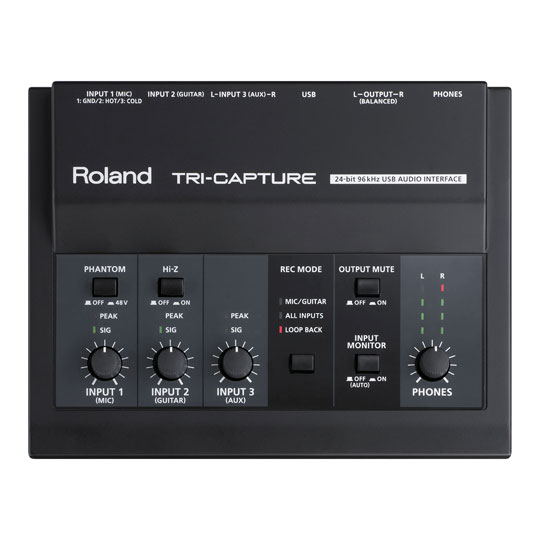

Product Overview The TRI-CAPTURE USB interface is a unique, compact audio interface optimised for personal and mobile recording, vocal and guitar recording, and streaming-internet applications. With its mixer-like design and dedicated front-panel controls, TRI-CAPTURE makes it easy to mix, control, and monitor a variety of signals. Plug a microphone into the XLR input, an instrument into the 1/4-inch jack, and a stereo instrument or device into the AUX input. The unique REC MODE section provides instant selection of recording scenarios, including LOOP BACK for web streaming applications. TRI-CAPTURE is full-featured yet portable, and is USB bus powered for a clean, simple setup.

• Affordable, easy-to-use interface for guitarists, vocalists, and other musicians
• Also works great for video production, web streaming, and creating podcasts with unique LOOP BACK function
• XLR mic input with phantom power, plus 1/4-inch input with Hi-Z switch for connecting a guitar directly
• Stereo AUX input with dedicated volume control
• Balanced 1/4-inch TRS outputs and headphone jack
• Low-latency ASIO driver; recording and playback at rates up to 24-bit/96 kHz
• USB bus powered with 24-bit/96 kHz operation
• Cakewalk SONAR X1 LE included
Features Number of Audio Record/Playback Channels
Record: 1 pair of stereo Playback: 1 pair of stereo Full duplex (except 96 kHz)

Signal Processing
24 bits (linear)

Sampling Frequency
96 kHz, 48 kHz, 44.1 kHz

Nominal Input Level
Mic input: -60 to -30 dBu Guitar input: -25 dBu Line input: -10 dBu

Output Level
Output jacks: +4 dBu (input terminated with 1 k ohm, Input Monitor: OFF, IHF-A typ.)

Residual Noise Level
93 dBu typ.

Dynamic Range
100 dB typ.

Interface
USB

Rec Modes
MIC/GUITAR ALL INPUTS LOOP BACK (expect 96 kHz)

Connectors

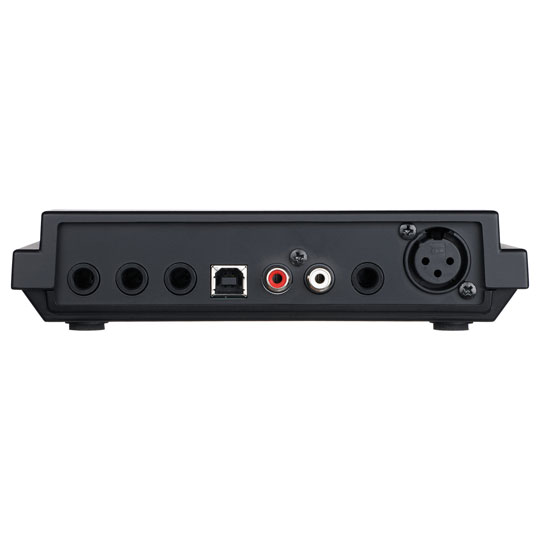

INPUT1 (Mic) jack (XLR type, balanced, phantom power DC 48 V, 10mA Max) INPUT2 (Guitar) jack (1/4-inch phone type) INPUT3 (AUX) jacks (L, R) (RCA phono type) Output jacks (L, R) (1/4-inch TRS phone type (balanced)) Headphone jack (Stereo 1/4-inch phone type) USB connector (USB Type B)

Power Supply
Supplied from the computer via USB

Current Draw
480 mA

Accessories
Owner's Manual CD-ROM USB cable Cakewalk SONAR LE DVD-ROM (for Windows)
