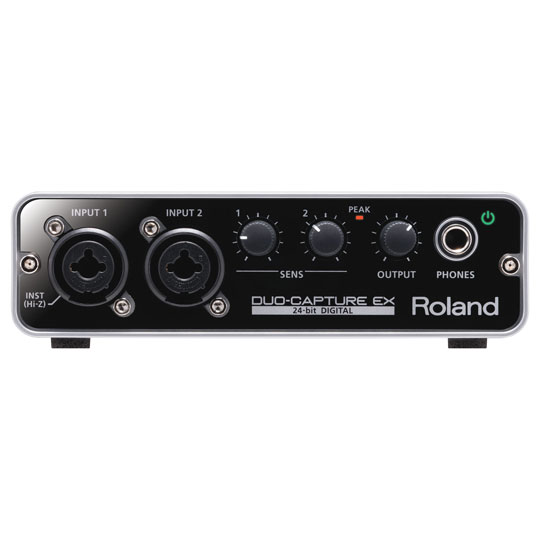

ROLAND DUO-CAPTURE Audio Interfacce

Roland Duo Capture EX - USB 2, 48 kHz, 24 Bit, 2 Mic Pre's , 2 / 2 Analogue I/O

Roland
Scan code: LN48397 Manufacturer code: ROL-UA22 Request call
£115.00
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Free Delivery Delivery options Free By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Housed in a compact, road-tough metal case, the new DUO-CAPTURE EX is perfect for both home recording and mobile production. The rugged USB audio interface is outfitted with a pair of VS Preamps, which feature the same professional components used in Roland’s high-end digital mixers. Two combo XLR/TRS inputs are provided, including a Hi-Z input for connecting a guitar or bass directly. The three-way power supply offers the ultimate in operational convenience, allowing you to power the unit from the computer’s USB bus, batteries, or an optional AC adapter. Powerful and flexible, the DUO-CAPTURE EX is compatible with Windows, Mac OS X, and iOS*. Features • Two VS Preamps with phantom-power support
• Compatible with PC, Mac, and iPad*
• Low-noise three-way power supply; runs on USB bus power, two AA-size batteries, or AC adapter
• Road-tough, compact aluminum case
• Hi-Z input for electric guitar or bass
• MIDI input and output
• Bundled with SONAR LE music-production software for Windows
Specifications
Specifications
Computer Interface Type USB 2
Analogue Inputs (Total) 2
Analogue Outputs (Total) 2

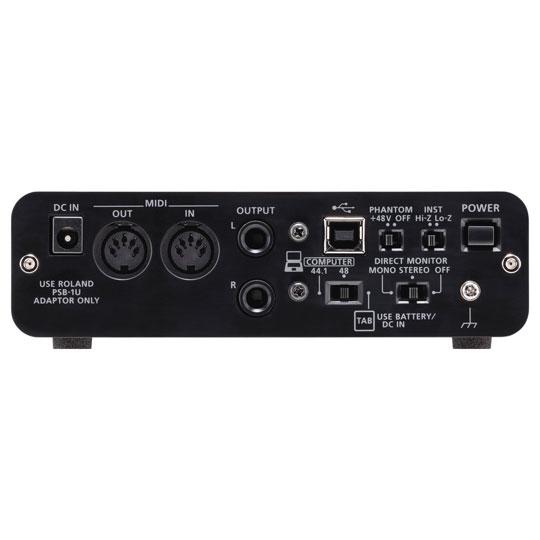

Connections (Input)
  • 1 x MIDI
  • 2 x XLR / Jack Combo
Mic Preamps (Max) 2
Instrument Inputs (Max) 1
Phantom Power Yes
Sample Rate (Max) 48 kHz
Bit Resolution 24
iPad Compatible Yes
Dynamic Range N/A dB
Connections (Output)
  • 2 x 6.35mm (1/4") Jack
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x MIDI
Dimensions (mm) 153 x 47 x 119 WxHxD
DSP Processing No
Misc. Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Roland
TekSpek Guides
Firewire
Firewire
Date Issued: 21st Oct 2008

You've probably read the USB Tekspek, and perhaps your intrigue, or product interest, has lead you to look up Firewire as well. The two are similar in some respects, particularly some of the products that use the two technologies. However, Firewire has its differences, which means it has both benefits and drawback when compared to USB. This Tekspek will look at Firewire and also look at it with respect to USB.

Read More

System Buses & Bandwidth
System Buses & Bandwidth
Date Issued: 21st Oct 2008

In computing terms, system buses are used to connect various components to the motherboard’s core logic and, often, to each other. Modern PCs run with a multitude of high-speed buses ranging from the interconnects between, say, the chipset and the CPU, graphics card, memory, and peripherals.

Read More

64 Bit Operating Systems
64 Bit Operating Systems
Date Issued: 14th Jul 2008

This TekSpek explains the essentials required to run a 64-bit operating system and native 64-bit applications on a modern 64-bit capable PC system.

Read More

Updating Drivers
Updating Drivers
Date Issued: 25th Jun 2008

Updating drivers can sometimes be a bit of a gamble. Will the drivers come with an installer? Will you need to uninstall the old drivers first? Many drivers these days do come with an installer, which simplifies the process dramatically.

Read More

Reviews
Rated 5 out of 5 by 1 reviewer.
Rated 5 out of 5 by Great product. This little box does exactly what it needs to do and sounds great while it's doing it. It's a sturdy, well built piece of kit. Flexible in terms of the power supply. Low noise, low latency and reasonably low price too. 14 July 2014
