Dual Bus Streaming Mixer and Video Capture
Roland - Bridge Cast X
Unify Your Streaming SetupElevate your streaming content with BRIDGE CAST X, a compact, all-in-one desktop solution filled with hands-on controls and Roland’s acclaimed pro AV features. Say goodbye to messy add-ons and unify your workflow with multiple connections for gaming consoles, computers, cameras, and audio devices. Then crush the competition with epic features like dual sound mixes, broadcast-quality XLR mic support, voice processing, royalty-free music and sound effects, assignable control pads, and so much more.
Capture, Mix, and ControlFrom online gaming to podcasting, vlogging, and other video content, BRIDGE CAST X keeps you focused on creating rather than fussing with cables and different pieces of specialized gear. The integrated design simplifies connections and reduces clutter, while the intuitive interface lets you smoothly mix audio and control the action in the flow. And with multiple USB-C and HDMI ports,* you can connect all your devices and avoid having to repatch every time you want to change gears for the day’s stream.
Dual PCs
If you use one PC for gaming and another for streaming and chatting, BRIDGE CAST X has you covered. The USB II port provides audio and video integration for a single-cable connection to your streaming computer. The USB I audio and HDMI ports support a variety of connection options for a second computer, including HDMI throughput to a dedicated video monitor.
PC and Gaming Consoles
Console-to-computer setups can get messy. Streamline your rig by connecting a PC and two gaming consoles to BRIDGE CAST X for seamless video and audio streaming. If you’re a PlayStation 5 owner, you can control chat and game audio independently using both the USB-C and HDMI connections.
Video Chat
Looking for a straightforward way to chat on video? Upgrade your webcam with a high-quality camera and connect it to an HDMI input on BRIDGE CAST X—perfect for live interviews, gameplay recaps, and Just Chatting.
At a glance
• Professional AV streaming interface for online gamers, podcasters, and vloggers
• Connect multiple devices at once and switch up your streaming setup without having to repatch cables
• Two USB-C ports for computers and mobile devices
• Two HDMI inputs for gaming consoles, cameras, and more
• HDMI Thru for connecting to an external video monitor
• Powerful 32-bit hardware DSP allows you to dedicate all your sources to gaming and streaming
• Create independent mixes for you and the online audience with dual audio busses
• High-quality XLR microphone preamp with phantom power for broadcast-grade mics
• Headphones jack with a professional high-sensitivity output and support for a headset or inline mic
• Six assignable control pads for sound FX, Game EQ presets, OBS shortcuts, and more
Professional Sound
All Gain, No PainWith the advanced audio tools in BRIDGE CAST X, you’ll always support your content with the high-quality sound it deserves.
Great vocals start with a great microphone. Connect any broadcast-quality XLR dynamic or condenser mic to BRIDGE CAST X without the need for external preamps or mic activators. A headset mic is also supported via the mini headphone jack.
In the MixBRIDGE CAST X is a dual-bus audio mixer, so you can operate two mixes at once. Independently adjust levels on a personal headphone mix while delivering a unique blend to your audience. Balance mic level, team chats, gameplay sounds, and background music for pro mixes that keep viewers engaged.
Morph Your VoiceTransform your voice with onboard processing derived from Roland’s famous VT voice transformers. To take on a new character, adjust the pitch and formant to alter your age or gender—or even sound like an alien.
Broadcast PolishBRIDGE CAST X also includes pro processing tools to enhance your chat stream, including EQ, compression, a low-cut filter to soften pesky plosives, and a de-esser that cleans up harsh “S” tones. Curb background distractions with the noise suppressor and launch your voice into space with the great-sounding reverb.
Virtual Surround SoundImmerse yourself in virtual surround sound with 5.1 or 7.1 HDMI spatial headphones audio backed by advanced Roland technology. Using the BRIDGE CAST app, you can even adjust the angles of the virtual speaker array to create your ideal surround sound experience.
Effortless Workflow
BRIDGE CAST X puts a raft of powerful controls at your fingertips, letting you execute actions without distraction.

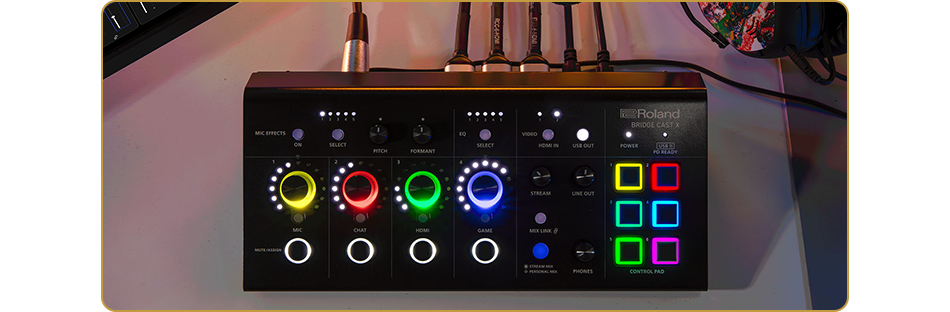

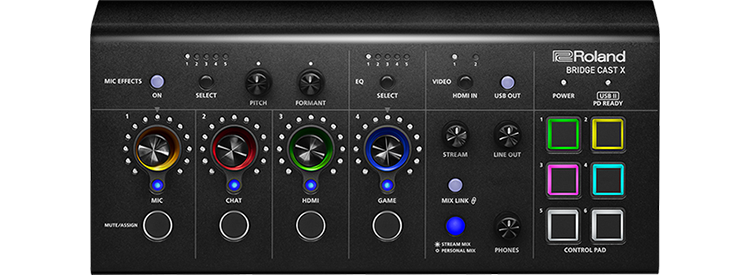

Control in HandWith the intuitive BRIDGE CAST X panel, it’s easy to manage streams in real time. Adjust your audio mix with dedicated knobs and buttons. Assign up to 30 OBS commands, sound effects, and music shortcuts to the six control pads to launch them midstream. And use the bottom row of buttons to navigate pages and access additional shortcuts.
Game Time AdvantageSnag a competitive edge by creating up to five custom Game EQ presets. For example, you can boost the volume to highlight game-critical audio cues, like enemy footsteps in a first-person shooter. Once you’ve dialed in your settings, save them to onboard profiles and instantly summon them with the push of a button.
BRIDGE CAST AppDive deeper into audio mixing, signal routing, and customization with the BRIDGE CAST app. Set mic and audio parameters, configure Game EQ presets, and explore deeper features as you stream. Reassign hardware controls and recall favorite configurations for various games and audiences.
The Tech Spec
| Features | Specification | HDMI IN/THRU Formats | 1280 x 720/50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F) 1920 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F) 2560 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F) 3840 x 2160/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F) 1280 x 720/60Hz (VESA DMT) 1920 x 1080/60Hz (VESA DMT) 2560 x 1440/60Hz (VESA CVT Reduced Blanking) 2560 x 1080/60Hz (VESA CVT Reduced Blanking) 3440 x 1440/60Hz (VESA CVT Reduced Blanking) 1920 x 1080/ 2560 x 1080/144Hz 2560 x 1440/144Hz 3440 x 1440/100Hz |
|---|---|
| HDMI IN/THRU Formats (When using USB video output) | 1280 x 720/50p, 59.94p, 60p (CTA-861-F) 1920 x 1080/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F) 3840 x 2160/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F) |
| USB Video Output Format | YUY2 (Uncompressed), Motion JPEG (Compressed) |
| USB Video Output Resolution | 1920 x 1080, 1280 x 720, 640 x 480 |
| Audio Input Channel | 80 mAMIC AUX HDMI (*1) USB CHAT (*2) USB GAME (*2) USB MUSIC (*2) USB SYSTEM (*2) CONSOLE/MOBILE (*3, *4) (*1) Linear PCM 48 kHz, 2ch, 5.1ch, 7.1ch (*2) When the USB port connection setting is "PC" (*3) When the USB I port connection setting is "CONSOLE/MOBILE" (*4) When the USB II port connection setting is "MOBILE" |
| Output Channel | LINE OUT PHONES AUX (*5) USB MIC (*5) USB STREAM (*6) USB PERSONAL (*6) USB CONSOLE/MOBILE (*7, *8) (*5) Microphone audio is output from the CTIA MIC jack (*6) When the USB port connection setting is "PC" (*7) When the USB I port connection setting is "CONSOLE/MOBILE" (*8) When the USB II port connection setting is "MOBILE" |
| Audio Mixing Bus | 2 (STREAM MIX, PERSONAL MIX) |
| Sampling Frequency | Windows: 44.1 kHz, 48 kHz, 96 kHz macOS/iOS/Other: 48 kHz |
| Signal Processing | AD/DA: 24 bits Internal Processing: 32-bit Floating point |
| Effects | MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut CHAT: De-esser, Compressor HDMI: Equalizer, Virtual Surround GAME: Equalizer, Virtual Surround STREAM: Delay |
| Audio File Player | Number of tracks: 2 Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono) Maximum Time: 5 seconds/track |
| Input Level | MIC: -87-- -12 dBu (Maximum: 0 dBu) HEADSET MIC: -56-- -12 dBu (Maximum: 0 dBu) AUX: -10 dBu (Maximum: +2 dBu) |
| Input Impedance | MIC: 8 k ohms HEADSET MIC: 1.3 k ohms AUX: 10 k ohms |
| Output Level | LINE OUT: -4 dBu (Maximum: +8 dBu) PHONES/HEADSET: +1 dBu (Maximum: +13 dBu) PHONES/HEADSET: 78 mW + 78 mW (32 ohms) PHONES/HEADSET: 35 mW + 35 mW (250 ohms) |
| Output Impedance | LINE OUT: 1.1 k ohm PHONES/HEADSET: 10 ohms AUX (MIC): 940 ohms |

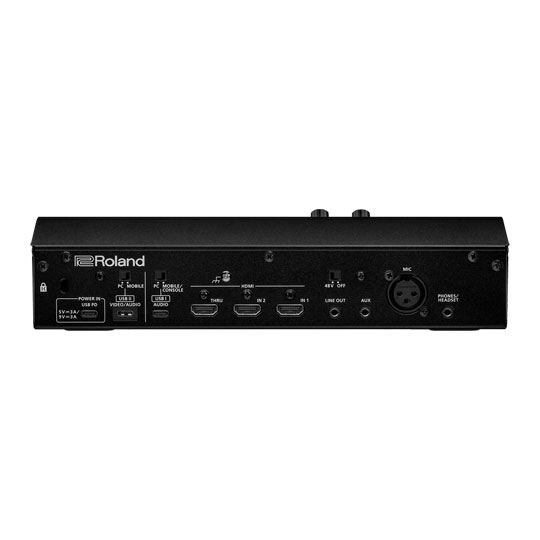

| Connectors | MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max) PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power) AUX jack: Stereo miniature phone type (TRRS) LINE OUT jack: Stereo miniature phone type (TRS) HDMI IN 1--2, THRU jack: HDMI type A (*9, *10) USB I port: USB Type-C(R) (*11) USB II port: USB Type-C(R) (*12, *13) USB POWER IN port: USB Type-C(R) (*14) (*9) HDCP Supported (*10) Multi-format Supported (*11) Audio/MIDI/HID Supported (*12) Video/Audio/MIDI/HID Supported (*13) Capable of supplying power to USB PD (Power Delivery) compatible smartphones (When 9V/3A is supplied to USB POWER IN jack) (*14) Requires a USB PD compatible AC adapter capable of supplying 5V/3A or 9V/3A/tr> |
| Dimensions | 269 (W) x 130 (D) x 70 (H) mm 10.6 (W) x 5.1 (D) x 2.8 (H) inches |
| Weight | 1.35 3 lb |
