Pin Mic - RODE - Wearable Microphone
Exclusive Scan Pro Audio webinar video available for this product.
Please select the Youtube icon above this text if viewing on the Scan website, or click here to to view on our Youtube channel
The RØDE PinMic™ is a discreet lavalier/lapel microphone with an innovative pin-through design that is not only easier to conceal than a traditional lapel microphone, but provides greater mounting versatility.
Comprised of a cabled backplate and a removable omni-directional capsule head, the PinMic™ is easily mounted onto any clothing or fabric by simply pushing the backplate pins through the back of the fabric and sliding the capsule into place on the front.
The microphone backplate and cable are hidden behind the fabric, and the capsule head can be easily disguised, covered or decorated to further conceal the microphone.
The PinMic™ capsule is discrete at only 9mm deep and 11mm in diameter, and is supplied with both a black and an unpainted silver mesh head that can be further camouflaged by painting.
The microphone easily mounts through any fabric up to 1.5mm (0.006") thick without any damage to clothing.
The microphone capsule is connected via a 1.2m (4') shielded, detachable Kevlar® reinforced cable that has been rigorously strain tested to ensure reliable performance.
The included mini-furry for high wind protection ensures quality recordings in adverse environments, while the anti-trauma water resistant case provides rugged and secure protection for the microphone, a spare capsule head, the microphone cable and included accessories.
The PinMic™ is an ideal solution for film, television, video, theatre, house of worship and anywhere where a high quality microphone needs to be heard but not seen.
Knowing that versatility is paramount in any product, RØDE has developed the MiCon™ connector system which provides seamless integration between the PinMic™ and a wide range of wireless systems as well as consoles, cameras and portable recorders.
The RØDE PinMic™ discreet pin-through lavalier microphone is covered by RØDE Microphones' innovative 5 year 'no questions asked' warranty which provides 12 months of complete cover, and an optional US$99 replacement microphone during the extended warranty period.
(1 year with free extension to 5 years following registration)

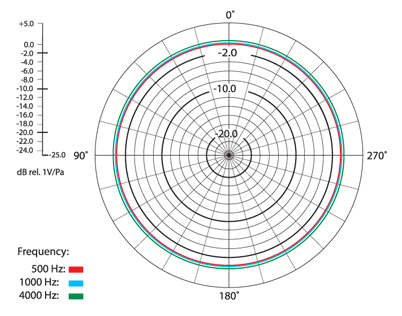

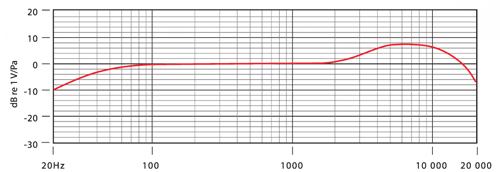

Frequency Response / Polar pattern
Data Sheet Manual
Features • Ultra discreet appearance
• Lightweight and easy to position
• Pins through clothing up to approximately 1.5mm (0.006") thick
• Removable mesh head
• Low noise miniature microphone capsule
• Low handling noise
Supplementary mesh head (silver) suitable for spray paint customisation to fully match clothing
Anti-trauma water resistant storage case
Mini-furry for high wind protection
Shielded Kevlar® reinforced cable with moulded backplate
Lapel-style cable management clip
Sanitary cleansing wipes
|Polar Pattern (Direction)||Omnidirectional|
|Impedance||3 k ohms|
|Sensitivity||-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz|
|Frequency Response||60 Hz - 18 KHz|
|Wired / Wireless||Wired|
|Connectors||1 x MiCon|
|Including Shock Mount||No|
|Including Pop Shield||No|
|Including Mic Clip||No|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 120 months
- DOA Period:
- 30 days
- RTB Period:
- 12 months
All RØDE Microphones are covered by a limited warranty for one (1) year from the date of purchase.This warranty can be extended to ten (10) years from the date of purchase. To be eligible for the extension of the warranty, the original purchaser must register the purchase of their RØDE Microphone online. The terms and conditions of the original warranty will then apply for the term of the extended warranty period.
For the RØDE M1 live dynamic microphone only, this warranty can be extended to the lifetime of the product from the date of purchase. To be eligible for the extension of the warranty, the original purchaser must register the purchase of their RØDE M1 live dynamic microphone Microphone online at www.rode.com. The terms and conditions of the original warranty will then apply for the term of the extended warranty period.
RØDE Microphones 5 Year Limited Replacement Warranty - Terms and Conditions All RØDE Microphones are covered by a limited warranty for one (1) year from the date of purchase.This warranty applies only to the RØDE HS1, RØDE Pin Mic and RØDE Lavalier microphones.This warranty can be extended to five (5) years from the date of purchase. To be eligible for the extension of the warranty, the original purchaser must register the purchase of their RØDE Microphone online at www.rode.com. The terms and conditions of the original warranty will then apply for the term of the extended warranty period.
