Scan code: LN28140 Manufacturer code: HDSP AIO

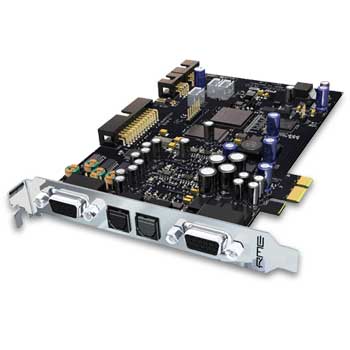

RME HDSPe AIO Audio Interface Card

RME HDSPe AIO, PCIe (x1) Interface, 192 kHz, 24 Bit, Highest Performance Analogue Card, 8.9 Dawbench LLP

Thumbnail 1 : RME HDSPe AIO Audio Interface Card
RME HDSPe AIO Audio Interface Card : image 1
Scan code: LN28140 Manufacturer code: HDSP AIO
3xs Approved
Free Delivery
With a 10% deposit from just £13.46 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th Feb 2019 to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview Scan Pro Audio Says: The Pinnacle of Analog Audio Interfaces for low latency performance, not just how low the latency is, but how many instruments and plugins you can run at those latencies.

RME presents the world's most versatile PCI Express audio interface - the HDSPe AIO. This card makes the dream of an All-In-One solution for every possible application come true. The Advanced-Input-Output interface shines with the latest 192 kHz AD- and DA-converters, with more than 112 dB signal to noise ratio. For the first time, all inputs and outputs are simultaneously operational, even SPDIF (phono) and AES/EBU (XLR). Additional hi-quality analog inputs and outputs can easily be added by favourably priced expansion boards. Of course TotalMix, the unsurpassed flexible routing mixer and SteadyClock, RME's sensational clock technology with maximum jitter suppression of external clock signals, are on board too. HDSPe AIO also supports the optional TCO for synchronization to timecode (LTC/video). All this combines into a professional 'soundcard' that the world has not seen before.

HDSPe AIO is the newly developed PCI Express version of the HDSP 9632. A newly developed genuine PCI Express core consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio and lowest latency. Thanks to RME's secure flash update technology, firmware improvements, adjustments, and bugfixes can be installed easily at any time.

Scan Computers are approved RME resellers with dedicated product specialists trained by RME. Please contact us to arrange your product demo in store today. Features • Balanced stereo analog in- and output, 24-bit/192kHz, > 112 dB SNR.
• Optional analog expansion boards with 4 balanced in- or outputs.
• All analog I/Os capable of 192 kHz, constant number of available channels.
• 1 ADAT digital I/O, supporting 192 kHz via S/MUX4 operation.
• 1 SPDIF digital I/O, 192 kHz-capable.
• 1 AES/EBU digital I/O, 192 kHz-capable.
• 1 Stereo headphone output, separate DA-converter and playback device.
• So up to 18 inputs and 20 outputs can be used simultaneously!
• 1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable.
• DIGICheck, RME's unique metering- and analysing tool.
• TotalMix: 760 channel Mixer with 42 bit internal resolution.
• Native PCI Express - no PCI to PCI Express bridge used.
Computer Interface Type PCI-E 1X
Analogue Inputs (Total)
Analogue Outputs (Total)
Connections (Input)
  • 1 x ADAT Optical
  • 1 x AES-EBU
  • 1 x MIDI
  • 2 x RCA Phono
  • 1 x S/PDIF Coaxial
Mic Preamps (Max) 0
Instrument Inputs (Max) 0
Phantom Power No
Sample Rate (Max)
  • 192 kHz
  • 64 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range 112 dB
Connections (Output)
  • 1 x ADAT Optical
  • 1 x AES-EBU
  • 1 x Headphone (TRS 3.5mm Jack)
  • 2 x RCA Phono
  • 1 x S/PDIF Coaxial
Dimensions (mm)
DSP Processing No
Misc. Notes Highest Performance Analogue Card

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
30 days
RTB Period:
24 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

Questions & Answers

Does this come with the breakout box?

Asked by: Karl
We can confirm the box contents: • HDSPe AIO PCI Express card • Quick Info guide • RME Driver CD • Digital adapter cable (phono / XLR to D-sub 9-pin) • Analog adapter cable (phono / phono / TRS / MIDI to D-sub 15-pin) • Internal cable (3-core) • 1 optical cable (TOSLINK)
Answered by: ChrisP
Date published: 2018-10-14
