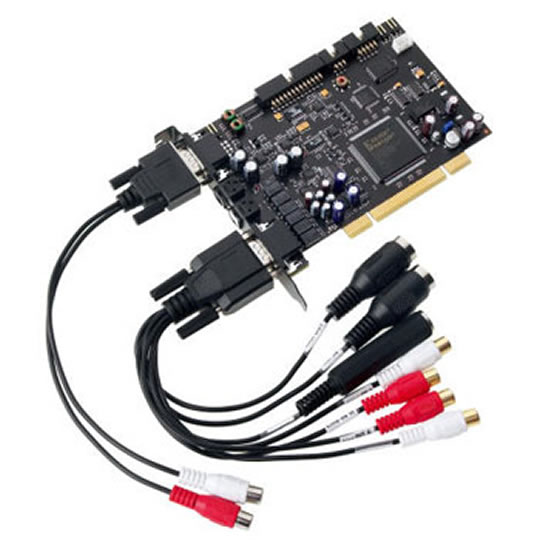

RME Hammerfall HDSP 9632 PCI Audio Interface Card

RME HDSP 9632 , 192 kHz, 24 Bit,0 Mic Preamps, XLR breakout cables are available as an option

RME
Scan code: LN14755 Manufacturer code: HDSP 9632 Request call
£323.00Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Scan Pro Audio says: If you've got a PCI machine, then this is probably the finest PCI analougue card that we do. Incredible low latency performance, not just how low the latency is, but how many instruments and plugins you can run at those latencies. Compatible with Sandy / Ivy Bridge Motherboards

RME presents the world's most versatile PCI Audio Interface - the Hammerfall DSP 9632. This card makes the dream of an All-In-One solution for every possible application come true. As usual, RME has not made any compromises: Latest 192 kHz AD- and DA-converters with more than 110 dB signal to noise ratio, all inputs and outputs simultaneously operational, - all this combines into a 'soundcard' that the world has been waiting for so long.

Scan Computers are approved RME resellers with dedicated product specialists trained by RME. Please contact us to arrange your product demo in store today. Features Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz
8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms
All settings changeable in realtime
Automatic and intelligent master/slave clock control
Enhanced Mixed mode: All inputs and outputs simultaneously operational
TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
Unique status windows for record and playback, showing mode and sample rate
Digital inputs and outputs ground-free transformer coupled
3-stage hardware level control for analog inputs and outputs
Servo-balanced analog input and output, DC-coupled signal path
192 kHz / 24 bit converters. SNR 110 dB RMS unweighted, 113 dBA
Maximum input and output level (0 dBFS @ HiGain): +19 dBu
Low impedance headphone output (75 ohm), stepless output level through software faders
Headphone Speaker Protection minimizes noise during power on/off
Super low jitter design: < 1 ns in all clock modes
Specifications
Specifications
Computer Interface Type
  • PCI
  • Thunderbolt
Analogue Inputs (Total) 3
Analogue Outputs (Total) 3
Connections (Input)
  • 1 x MIDI
  • 2 x RCA Phono
  • 1 x S/PDIF Coaxial
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range 110 dB
Connections (Output)
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x MIDI
  • 2 x RCA Phono
  • 1 x S/PDIF Coaxial
Dimensions (mm)
DSP Processing No
Misc. Notes XLR breakout cables are available as an option
