Sale

RME HDSP AES 32 PCI Audio Interface Card

RME AES32, 192 kHz, 24 Bit, 8x AES Digital Only Interface

RME
Scan code: LN22624 Manufacturer code: AES32 Request call
£549.00
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
Mid Range
Free Delivery Delivery options Free By DPD On 8th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

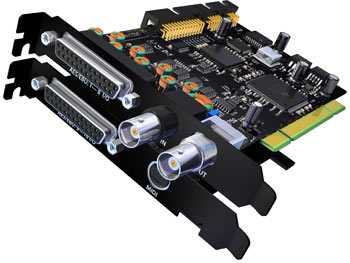

Product Overview The Hammerfall DSP AES-32 is a short-length PCI card with AES/EBU interfaces. It provides eight AES inputs
(16 channels) and eight AES outputs (16 channels) at 192 kHz sample rate. The card is also equipped with two
MIDI I/O ports, word clock I/O, and can be used with the optional TCO module for synchronization to LTC and
video.

The AES-32 is RMEs reaction to requests from audio professionals for an AES-based solution with the typical
RME features and quality. This audio card is a perfect all-in-one solution for professional users in the
fields of broadcast, TV, theater, stage/PA - and in any professional studio.

The cards main board contains word clock I/O and a 25-pin D-sub connector, providing four AES inputs and
four AES outputs via standard digital breakout cable (Tascam pinout). The word clock input is galvanically
isolated via transformer and operates on Single, Double and Quad Speed signals automatically. The expansion
board adds audio channels 9-16 and a connector for a MIDI breakout cable with two MIDI I/Os (four 5-pin DIN
connectors). It does not require a PCI slot.

Scan Computers are approved RME resellers with dedicated product specialists trained by RME. Please contact us to arrange your product demo in store today. Features • Support for 192 kHz at full channel count.
• Native support for Double and Quad Wire transfer.
• Direct conversion between these formats.
• SteadyClock for highest jitter suppression and clock regeneration.
• Intuitive and clearly laid-out user interface.
• TotalMix: 512 channel mixer with 42 bit internal resolution.
• 48 level meter Peak/RMS, hardware-computed.
Specifications
Specifications
Computer Interface Type PCI
Analogue Inputs (Total)
Analogue Outputs (Total)
Connections (Input)
  • 8 x AES-EBU
  • 1 x BNC Word clock
  • 2 x MIDI
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range
Connections (Output)
  • 8 x AES-EBU
  • 1 x BNC Word clock
  • 2 x MIDI
Dimensions (mm)
DSP Processing No
Misc. Notes 8x AES Digital Only Interface
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
24 months
