Scan code: LN116342 Manufacturer code: RGBLink Bundle 1

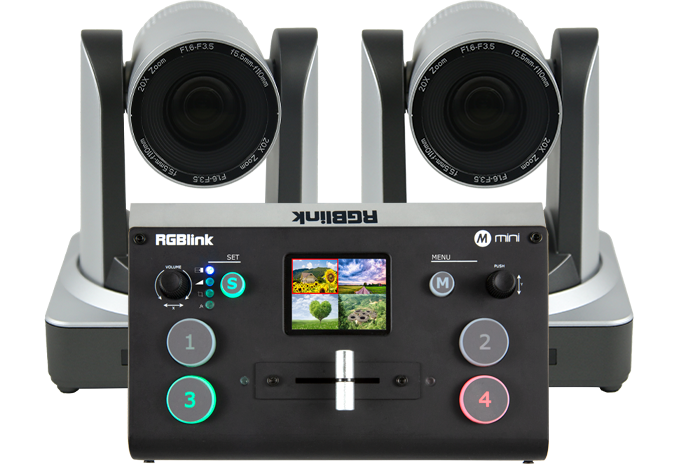

RGBlink Mini w/ 2x RGBlink PTZ IP Camera 20x Cameras

RGBlink Mini w/ 2x RGBlink RGB20X-PTZ-WH PTZ IP Camera, 1080p60, 4x HDMI Inputs, 20x Optical Zoom, 54.7° Field of View

Thumbnail 1 : RGBlink Mini w/ 2x RGBlink PTZ IP Camera 20x Cameras Thumbnail 2 : RGBlink Mini w/ 2x RGBlink PTZ IP Camera 20x Cameras Thumbnail 3 : RGBlink Mini w/ 2x RGBlink PTZ IP Camera 20x Cameras
Scan code: LN116342 Manufacturer code: RGBLink Bundle 1
£2,399.99Item currently awaiting an ETA
Pre order
From £65.55 / month (APR 14.9%)
Monthly Payment: £215.46
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £2,585.44
Monthly Payment: £115.20
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £2,764.69
Monthly Payment: £81.99
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £2,951.68
Monthly Payment: £65.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £2,399.99
Total inc. interest: £3,146.18
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £59.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

RGB Link - 'mini + 2x PTZ Camera 20x'

RGB Link Mini

make the sophisticated simpleMini makes the sophisticated simple. Switch seamlessly between any of the four HDMI inputs and output to both HDMI and the dedicated UBB3.0 output. Mini is equally ideal for live streaming applications and presentations, allowing multiple sources to be utilised for a professional impression every time. On board features include PIP, transition effects and external audio embedding. Large buttons make quick actions easy, while the provision of the T-bar allows smooth transitions between sources, whether they be cameras or graphics. Compact in size, mini goes anywhere, and with handy features like the ability to mount to standard 1/4” UNC accessories, mini is at home in any studio.

Key Features

RGB Link Mini

Seamless switching
between inputs

RGB Link Mini

Preview all video input simultaneously

RGB Link Mini

Create effects with transitions when switching between sources

RGB Link Mini

Insert audio via mini Jack or use HDMI embedded audio

RGB Link Mini

Stream direct to platforms via USB3.0

RGB Link Mini

De-embed and extract audio via mini jack

RGB Link Mini

Switch between sources with T-bar or direct touch

RGB Link Mini

On board TFT display with multi-view

RGB Link Mini

Remote control with apps connected via LAN

RGB Link Mini

Picture-in-Picture Presets

Quad HDMI Input

Scale, Convert, PresentEach HDMI input is resolution independent and is automatically cross-converted – scaled – to the set output resolution providing seamless glitch free video switching for consistent presentation.

Stream & captureConnect mini via USB3.0 to an internet connected laptop to be a video and audio streaming device to virtually any platform. Capture and more via OBS.

Preview Built-inThe only streaming switcher in its class with an integrated LCD display and onboard video preview.

Synchronise with AudioUtilise embedded or external audio and extract to audio mixers or other devices for video and audio synchronisation.

Connect & ControlSwitch between any connected video source simply by tapping on the source button in fast mode or via the T-Bar directly from the front panel. Connect via LAN to one of the mini apps for remote functionality – CUT, set fade times or transitions from anywhere.

Picture-in-PictureAdd PIP video as an overlay in one of nine PIP and PBP preset positions. Whether for closeups or companion shots, PIP allows for two videos to be output at the same time.

RGBlink - 'PTZ Camera 20x'

RGBlink PTZ 20x Camera

Professional PTZ CameraWhether outputting to HDMI, SDi or IP, RGBlink PTZ cameras provide a host of onboard features and functions. Advanced ISP image processing and algorithms enhance image performance from the sensor.

Full 340 degree horizontal and 120 vertical range along with up to a wide, 72.5 degree viewing angle are provided. Making RGBlink cameras suitable for demanding applications whether short throw or long.

Precision Motor Drive Control

RGBlink PTZ 20x Camera

Precise Head ControlWith built-in high precision motor drive control, the camera can be re-positioned in under a second by 60 degrees and a zoom speed of 0.1degree. Whether large movement or small, multi-speed movement is not only smooth and accurate, but super quiet. Automatic focussing powered with advanced algorithms enhances overall performance aiding ease of operation.

20x Optical & 10x Digital Zoom

RGBlink PTZ 20x Camera

20X Optical ZoomRGBlink PTZ cameras offer embedded 2D & 3D noise reduction and ISP image processing technology. The result is clear, vivid and balanced video regardless of zoom angle.

Store Up To 255 Presets

RGBlink PTZ 20x Camera

Multi-Scene PresetCreate and store up to 255 presets with position, zoom and focus via the web interface. Assign presets to buttons for instant recall.

Web Based Interface

Web PreviewPreview video and control camera via the web-browser based interface simply by connecting on a LAN. Use any video output for monitoring.

Full Interface Multi-ProtocolRGBlink PTZ cameras offer wide compatibility and interconnectivity in support of the broad range of application possibilities. Video connections are provided for SDI and HDMI as well as for IP based protocols. Control protocols include RTSP, VISCA and PELCO.

RGBlink mini Spec

Features Specification
Video Input 4x HDMI-A
Video Output 1x HDMI-A
1x USB Type-A
Audio Input 1x 3.5mm Stereo Jack
Audio Output 1x 3.5mm Stereo Jack
LAN 1x RJ45
Power Input DC Jack
Input Resolutions SMPTE: [email protected]/60, [email protected], [email protected]/24/30/50/60
VESA: [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]@60, [email protected], [email protected], [email protected], [email protected]
Output Resolutions SMPTE: [email protected], [email protected]
VESA: [email protected], [email protected], 1280x768, [email protected], [email protected], [email protected], [email protected]
USB/H.265: [email protected], [email protected], [email protected], [email protected]
Supported Standards HDMI: 1.3
USB: 3.0
H.265: ITU-T H.265/ISO/IEC 23008-2
Input Voltage DC 12V/1.5A
Max Power 18W
Temperature -0°C to 70°C
Humidity 10% to 85% RH
Weight 0.6kg
Dimensions 180 x 112.5 x 48.7mm

RGB20X-PTZ-WH Spec

Features Specification
Video Output 1x HDMI-A
1x BNC SDI
Audio Input 1x 3.5mm mini-jack
Network 1x RJ45
RS232 2x DIN-8
RS485 1x2 way Terminal Connector
Power 1× HEC3800 DC Socket
Optical Zoom 20x f=5.5~110mm
Digital Zoom 10x
Viewing Angle 20x 3.3°~ 54.7°
AV 20x f1.6 ~ f3.5
Illumination Min 0.5 lux (F1.8, AGC ON)
Noise Reduction (DNR) 2D & 3D
White Balance Auto | Manual | One Push | 3000K | 3500K | 4000K | 4500K | 5000K | 5500K | 6000K | 6500K |7000K
White Range (WDR) OFF | Dynamic
Focus Auto | Manual
Aperture/Shutter Auto | Manual
BLC ON | OFF
Adjustments Brightness | Color | Saturation | Contrast | Sharpness | B/W | Gamma Curve
SNR >55dB
Pixels 2.07m, 16:9
Pan -170°~+170°
Tilt -30°~+90°
Pan Speed 0.1sec ~60°
Tilt Speed 0.1sec~30°/S
Presets Up to 255
Output Resolutions SDI | HDMI: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60

H.264 | H.265: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
Standards Supported SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
HDMI: 1.3
IP Streaming: H.264 | H.265
Audio: AAC | MPEG3 | G.711A
PTZ Control: VISCA | Pelco-D | Pelco-P
Network: RTSP | RTMP | ONVIF | GB/T28181 | VISCA
Input Voltage DC12V/1.5A (via Plug Pack supplied)
Max Power 12W
Temperature -10℃~50℃
Humidity 20%~80% RH
Weight 1.4kg
Dimensions 150mm x 150mm x 167.5mm
Specifications
Mega Pixel
Resolution (Still Image)
Resolution (Video)
Live Video Frame Rate
Zoom
LCD Display No
Sensor Type
Dynamic Range
Connectivity
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight
Dimensions
Colour
5.1 Sound No
Additional Information
Scan Code LN116342
Model Number RGBLink Bundle 1
