RGB Link Mini+ Streaming Switcher

RGB Link Mini+ Streaming Video Switcher, 4x HDMI, 4x PTZ Camera Support, 1080p60, USB 3.0, 3.5mm Audio, 2" TFT Display

Thumbnail 1 : RGB Link Mini+ Streaming Switcher Thumbnail 2 : RGB Link Mini+ Streaming Switcher Thumbnail 3 : RGB Link Mini+ Streaming Switcher
Scan code: LN116314 Manufacturer code: 230-0001-02-0
£456.49Item currently awaiting an ETA
Pre order
From £21.91 / month (APR 14.9%)
Monthly Payment: £40.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £456.49
Total inc. interest: £491.75
Monthly Payment: £21.91
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £456.49
Total inc. interest: £525.86
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.40 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

RGB Link - 'mini+'

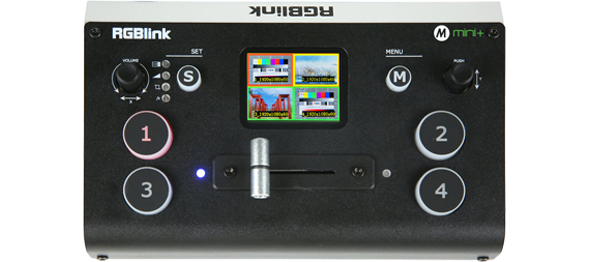

RGB Link Mini+

make the sophisticated simpleMini makes the sophisticated simple. Switch seamlessly between any of the four HDMI inputs and output to both HDMI and the dedicated UBB3.0 output. Mini is equally ideal for live streaming applications and presentations, allowing multiple sources to be utilised for a professional impression every time. On board features include PIP, transition effects and external audio embedding. With the mini+ feature pack there is support for Sony VISCA PTZ cameras and DSK, alongside Chroma Key and logo overlay functionality. Large buttons make quick actions easy, while the provision of the T-bar allows smooth transitions between sources, whether they be cameras or graphics. Compact in size, mini goes anywhere, and with handy features like the ability to mount to standard 1/4” UNC accessories, mini is at home in any studio.

Key Features

RGB Link Mini+

Seamless switching
between inputs

RGB Link Mini+

Preview all video input simultaneously

RGB Link Mini+

Transitions and Chroma Key
Effects Built-in

RGB Link Mini+

Insert audio via mini Jack or
use HDMI embedded audio

RGB Link Mini+

Stream direct to
platforms via USB3.0

RGB Link Mini+

De-embed and extract audio
via mini jack

RGB Link Mini+

Switch between sources with
T-bar or direct touch

RGB Link Mini+

On board TFT display
with multi-view

RGB Link Mini+

Remote control with apps
connected via LAN

RGB Link Mini+

Advanced features for PTZ camera, audio control and more

RGB Link Mini+

Picture-in-Picture Presets

Connect & Control up to 4 PTZ Cameras

Scale, Convert, PresentEach HDMI input is resolution independent and is automatically cross-converted – scaled – to the set output resolution providing seamless glitch free video switching for consistent presentation.

Stream & captureConnect mini via USB3.0 to an internet connected laptop to be a video and audio streaming device to virtually any platform. Capture and more via OBS.

Preview Built-inThe only streaming switcher in its class with an integrated LCD display and onboard video preview, so you can view your transitions, chroma key or logo overlay before streaming.

Synchronise with AudioUtilise embedded or external audio and extract to audio mixers or other devices for video and audio synchronisation.

Connect & ControlSwitch between any connected video source simply by tapping on the source button in fast mode or via the T-Bar directly from the front panel. Connect via LAN to one of the mini apps for remote functionality – CUT, set fade times or transitions from anywhere.

Picture-in-PictureAdd PIP video as an overlay in one of nine PIP and PBP preset positions. Whether for closeups or companion shots, PIP allows for two videos to be output at the same time.

The Tech Spec

Features Specification
Video Input 4x HDMI-A
Video Output 1x HDMI-A
1x USB Type-A
Audio Input 1x 3.5mm Stereo Jack
Audio Output 1x 3.5mm Stereo Jack
LAN 1x RJ45
Power Input DC Jack
Input Resolutions SMPTE: [email protected]/60, [email protected], [email protected]/24/30/50/60
VESA: [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]@60, [email protected], [email protected], [email protected], [email protected]
Output Resolutions SMPTE: [email protected], [email protected]
VESA: [email protected], [email protected], 1280x768, [email protected], [email protected], [email protected], [email protected]
USB/H.265: [email protected], [email protected], [email protected], [email protected]
Supported Standards HDMI: 1.3
USB: 3.0
H.265: ITU-T H.265/ISO/IEC 23008-2
Input Voltage DC 12V/1.5A
Max Power 18W
Temperature -0°C to 70°C
Humidity 10% to 85% RH
Weight 0.6kg
Dimensions 180 x 112.5 x 48.7mm
